ABB Terra 124 - AC input specifications; General AC input specifications

Order Phase L1 Phase L2 Phase L3
IRMS HDF IRMS HDF IRMS HDF
[A] [%] [A] [%] [A] [%]
48 0.10 0.09 0.12 0.11 0.20 0.17
49 0.08 0.07 0.11 0.10 0.10 0.09
50 0.04 0.04 0.06 0.05 0.08 0.07
Total 112.69 2816% 112.36 2976% 112.53 2804%

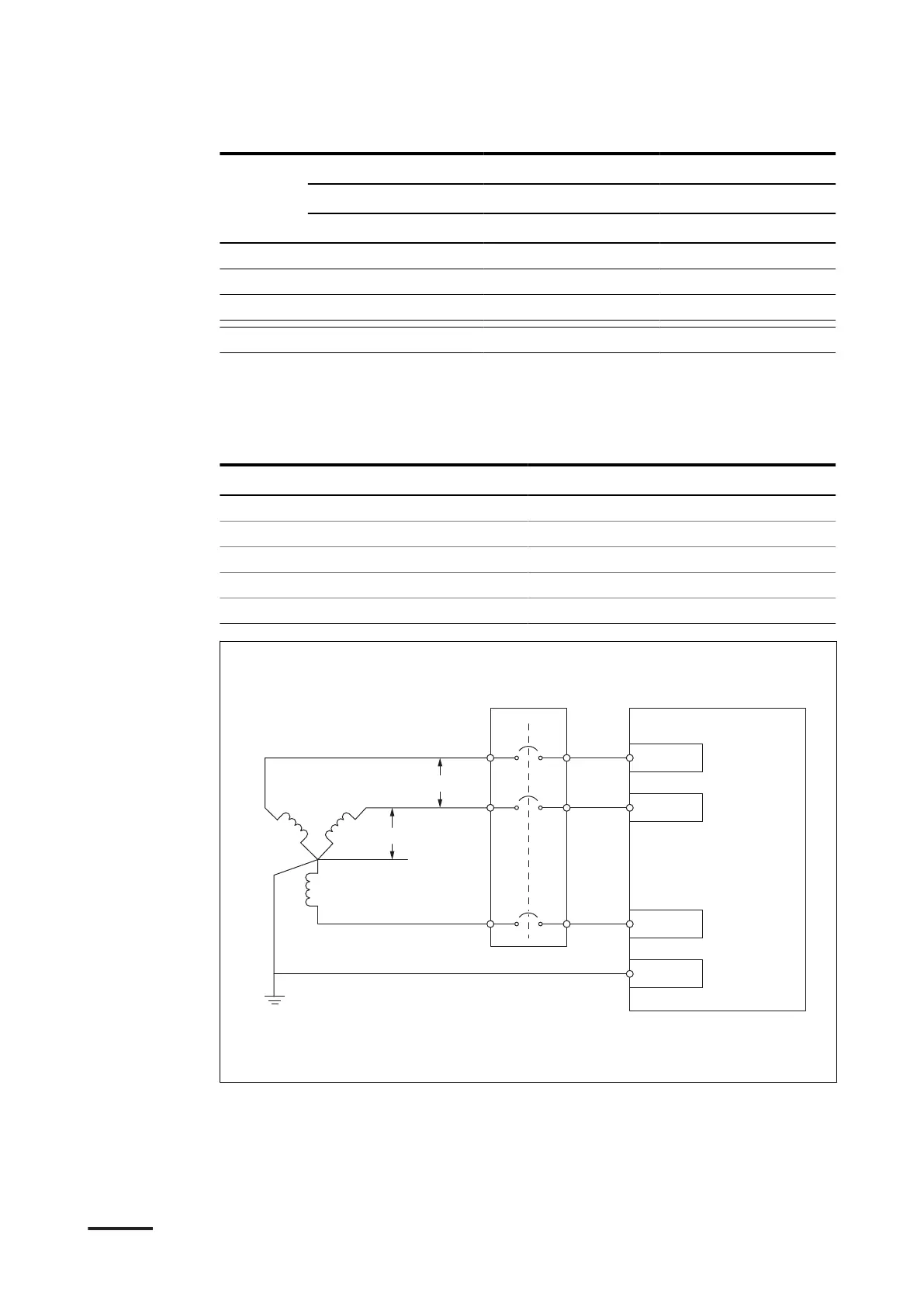

10.16 AC input specifications
10.16.1 General AC input specifications
Parameter
Specification
Input AC power connection 3P + PE (WYE input)
Input voltage range 480 VAC +/- 10% (60 Hz)
Power factor at full load > 0.96
Efficiency > 94% at nominal output power
Total harmonic distortion (current) < 5%
L1
L2
L3
PE
N
C
B
A
A Input voltage between phase and
neutral
B Input voltage between two phases
C Upstream breaker in the power
distribution board
D EVSE
Technical data
94 9AKK108466A3703-EN | 001
