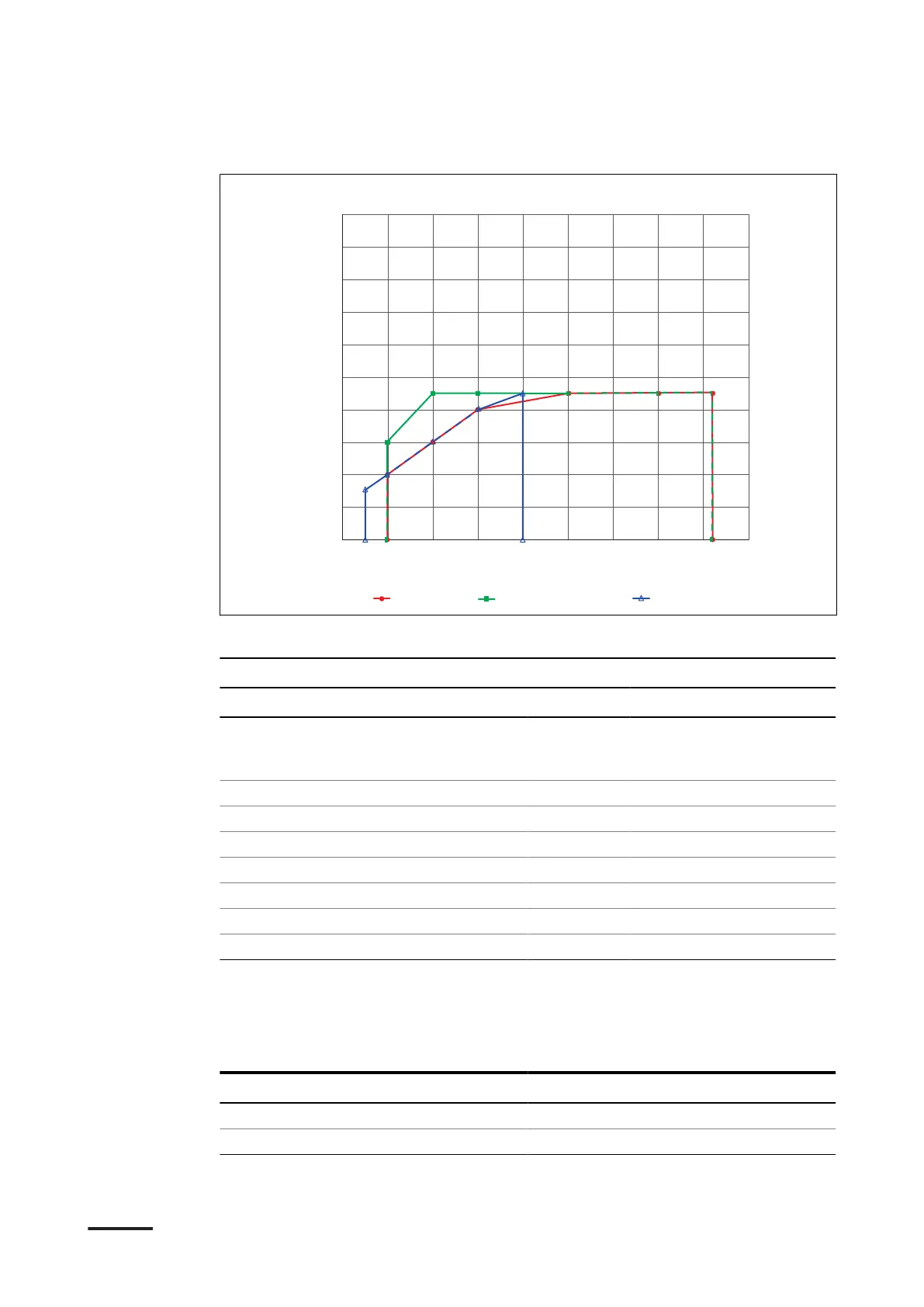

ABB Terra 124 - Power Consumption

Output power in function of output voltage (two charge sessions)
CCS (200A) CHAdeMO (200A)CCS High Current (400A)
output voltage (V)
100 200 300 400 500 600 700 800 900 1000
0
20
40
60
80
100
120
140
160
180
200
Output power (A)
CHAdeMO CCS
200A 200A High Current 400A
Current [A] Power [kW] Current [A] Power [kW] Current [A] Power [kW]
CHAdeMO
(200A)
CCS (200A) CCS High
Current
(Peak 400A)
Current (A) Power (kW) Current (A) Power (kW) Current (A) Power (kW)
0 0 0 0 0 0
200 30 200 40 300 60
200 40 200 60 300 90
200 60 200 80 225 90
200 80 150 90 150 90
180 90 113 90 113 90
10.18 Power consumption
Power consumption during stand-by
Parameter
Specification [kVA]
Stand-by power (heater off) 0.08
Stand-by power (heater on) 0.98
Technical data
110 9AKK108466A3703-EN | 001
