ABB Terra 124 - Floor Space Requirements

Note:
• The coordinates correspond with the agreements in section 1.15.
0,0,0 is the left bottom front side of the EVSE.
• The values for the center of gravity refer to an EVSE with a standard
base.

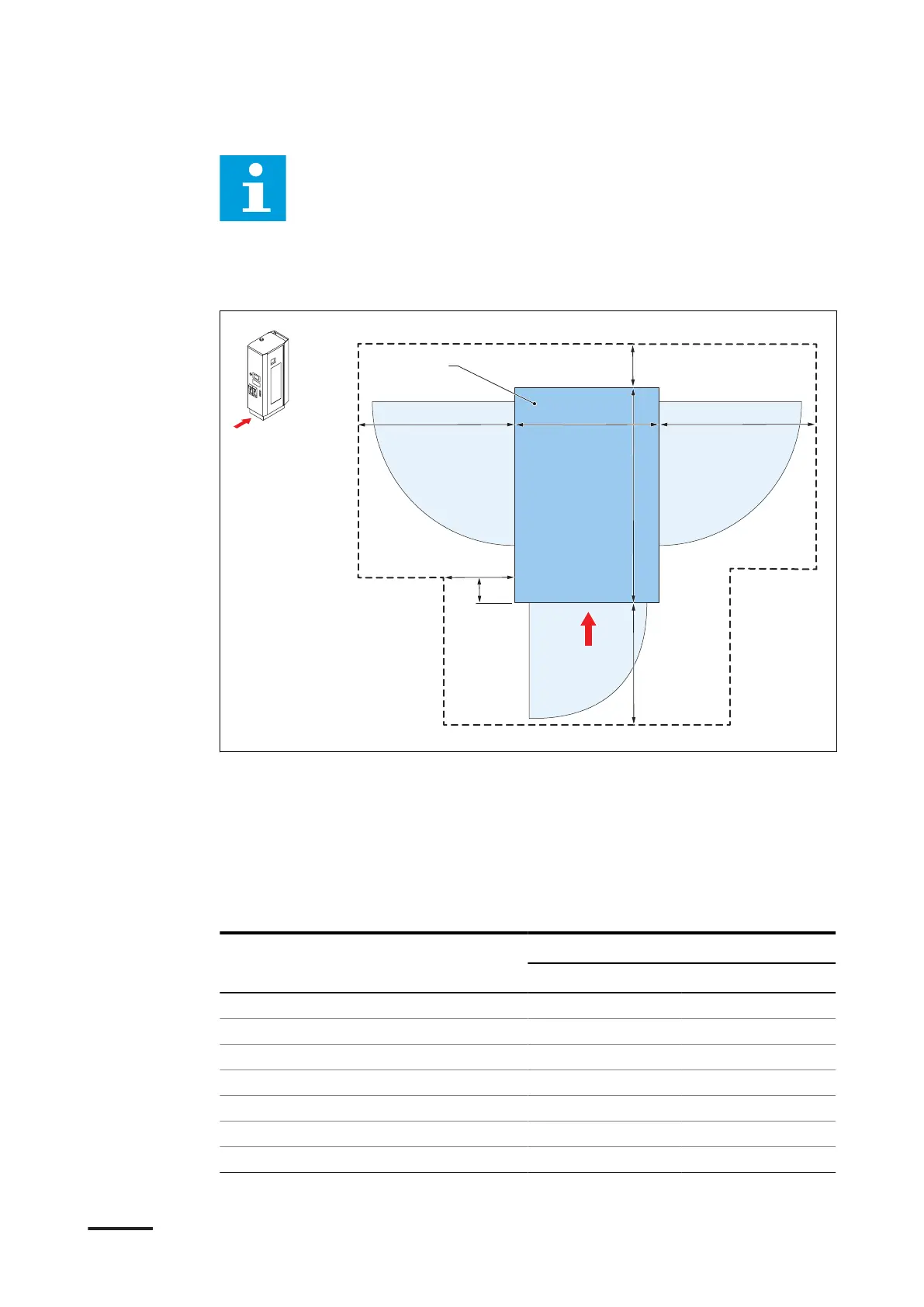

10.12.5 Floor space requirements
Y1
Y4
X1 X1
Y2
Y3
X3
X2
A
C
B
Y
Y
A Cabinet
B Area where the bollards can be
installed
C Wall or other obstacles
X1 Free space required on the sides of
the EVSE
X2 Width of the EVSE
X3 Free space required on the sides of
the EVSE
Y1 Free space required on the rear of
the EVSE
Y2 Depth of the EVSE
Y3 Distance from the front of the
EVSE
Y4 Free space required in front of the
EVSE
Parameter Specification
[mm] [in]
X1 510 20
X2 880 36.6
X3 300 12
Y1 100 3.9
Y2 565 22.2
Y3 105 4.1
Y4 600 23.6
Technical data
82 9AKK108466A3703-EN | 001
