ABB Terra 124 - Prefabricated Foundation

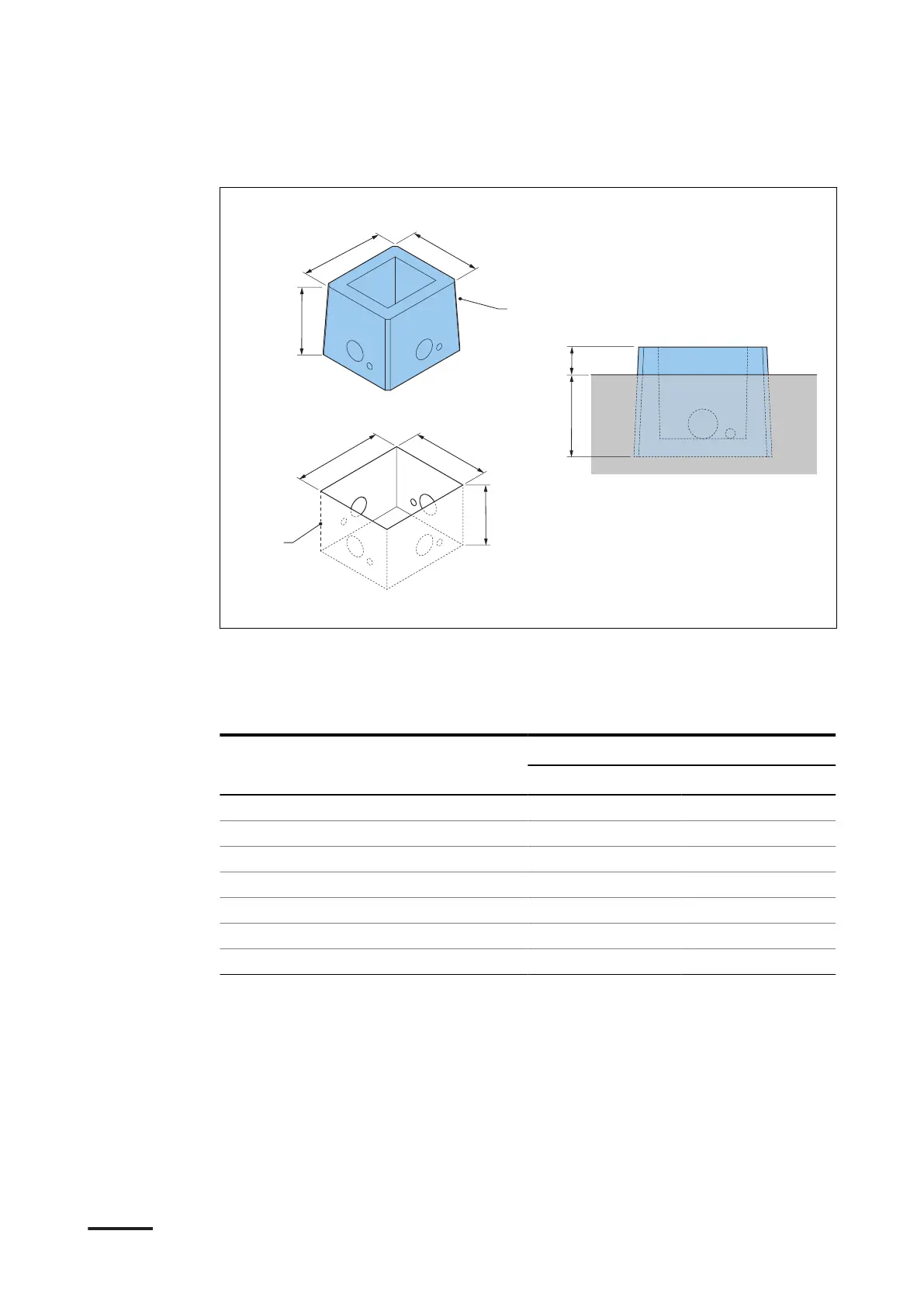

10.12.7 Prefabricated foundation
Z1
Y1
X1
Y2
X2
Z2
Z2
Z3
B
A
A Prefabricated foundation
B Hole for the foundation
X1 Width of the foundation
Y1 Depth of the foundation
Z1 Height of the foundation
X2 Width of the hole
Y2 Depth of the hole
Z2 Height of the hole
Z3 Distance of the foundation above
the ground level
Parameter Specification
[mm] [in]
X1 626 24.6
Y1 700 27.6
Z1 600 23.6
X2 680 26.8
Y2 754 29.7
Z2 580 22.8
Z3 20 0.8
Each side has a square hole XxY = 237 x 165 mm (9.3 x 6.5 in) to fit the conduits 1 x
160 mm (6.3 in) and 1 x 75 mm (3 in) diameters or different combinations.
