Note: There is one unique door key for each cabinet.

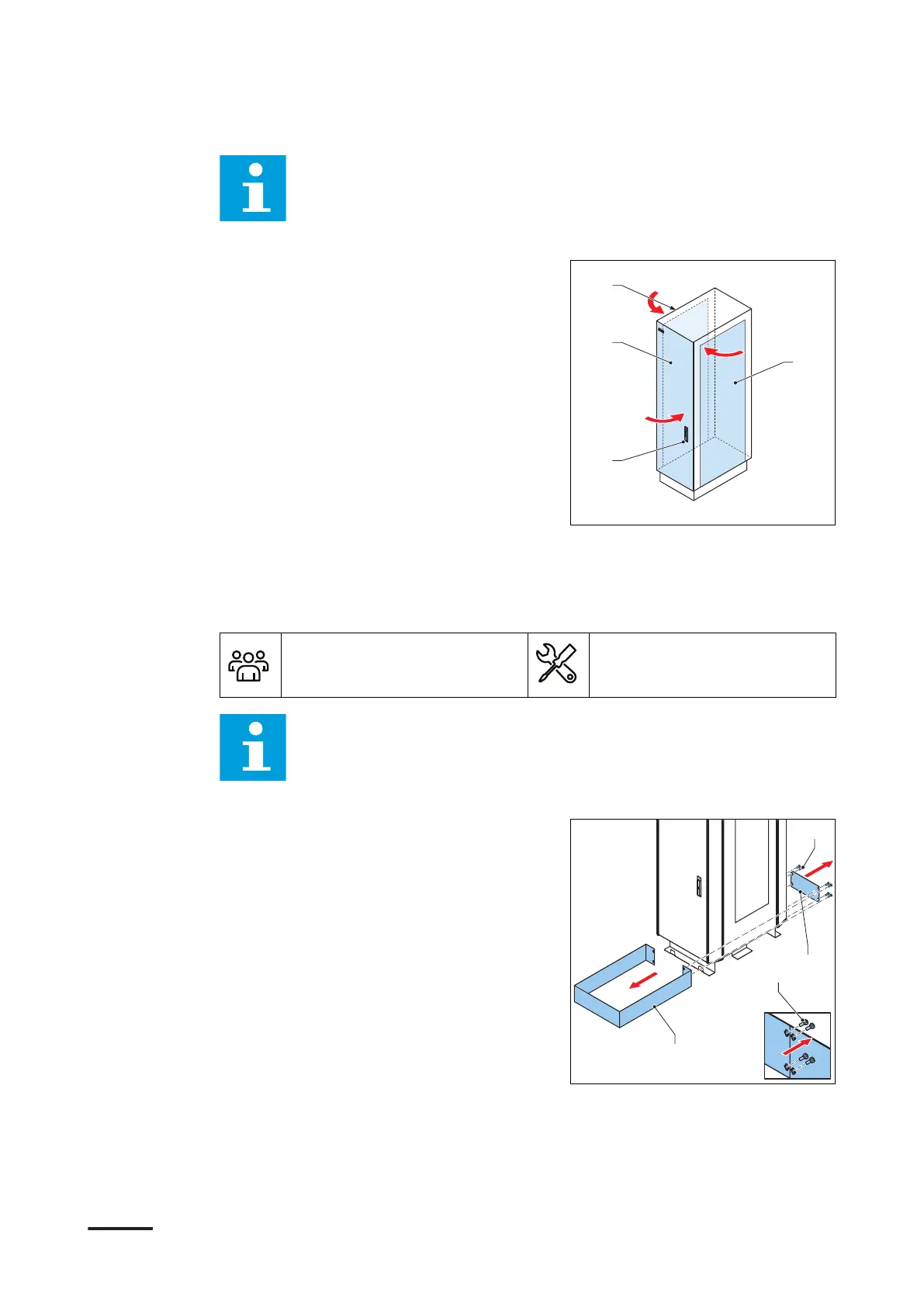

Procedure
1. If the left or right doors (A) are open,
close the doors through the opening
of the front door.
2. Close the front door (B).
3. Lock the lock (C) of the front door. Use
the door key.
8.3 Remove the border covers
Preliminary requirements
• Installation engineer
• Set of hex keys
Note:
This procedure is only valid for a standard base or a base with side
entrance.
Procedure
1. Remove these parts:
1. Fasteners (A)
2. Border covers (B)
B
C
A
A
A
A
B
B
Access to parts
