8.3 Keyboard - Description and functions

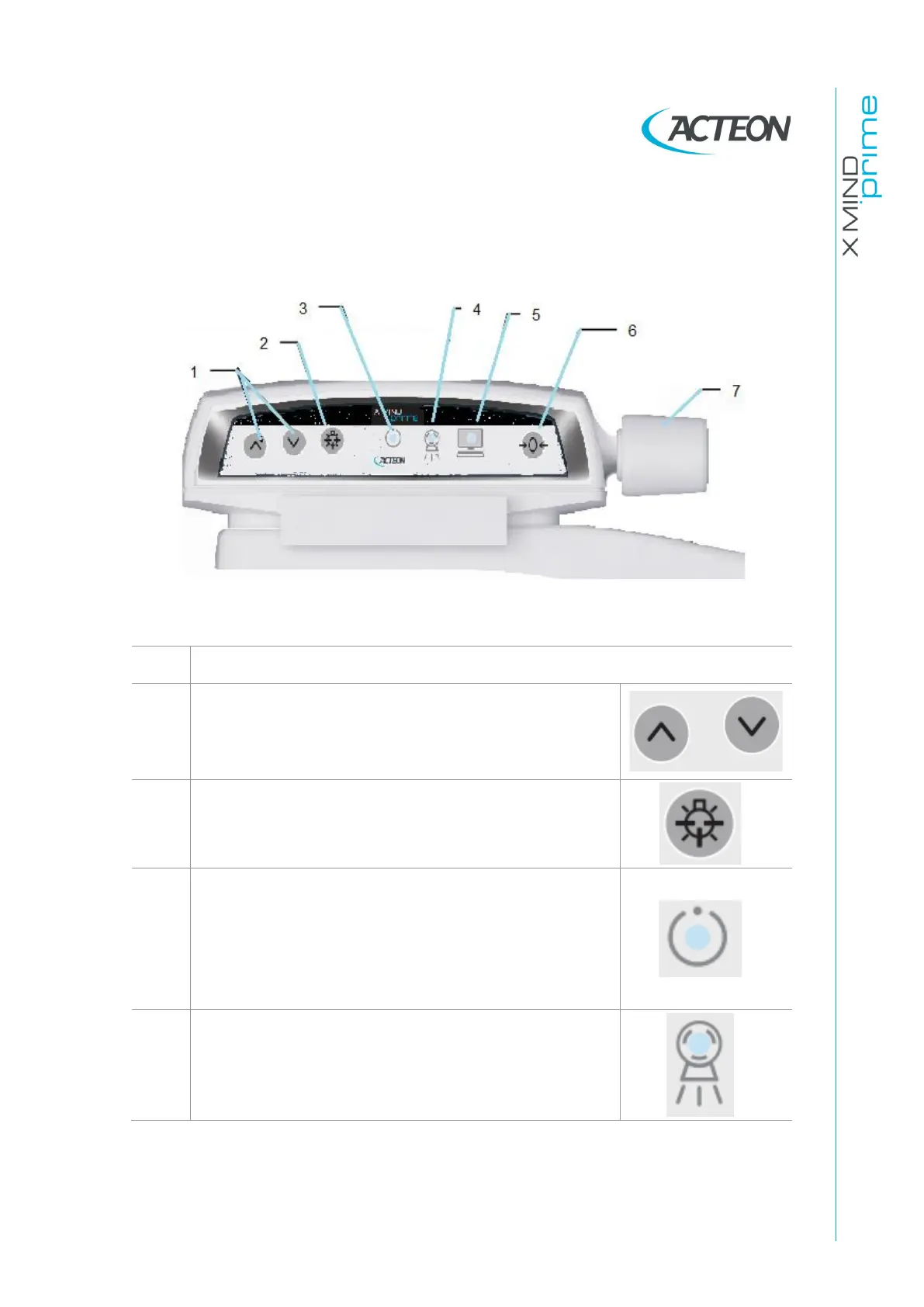

Figure 10 shows a general view of X-MIND prime control Interface.
Figure 10: Keyboard
Label
Description
1
The up/down movement of the column is controlled by
the corresponding keys. The movements are enabled
during equipment setting.
Column movement is not possible if the emergency
button is pressed.
2
The "Luminous centring device" key turn the laser
centring devices ON/OFF, allowing the correct
positioning of the patient.
3
Light indicator of "Machine Ready" status:
• Green fixed, alerts the user that by pressing the X-
ray button, X-ray emission will start
• Green blinking slowly, indicates that by pressing
>O< button, axis reset will start,
• Green blinking fast, indicates the equipment cooling
status.
4
Light indicator "X-Ray Emission" status. It indicates the
emission of X-rays.
