8.8 Panoramic and Bitewing exams
8.8.1 Laser references
Patient centring is assisted by two linear luminous laser beams, which indicate the
position of the sagittal medial plane and the Frankfurt plane; the corresponding patient
plane needs to be aligned with these laser lines.

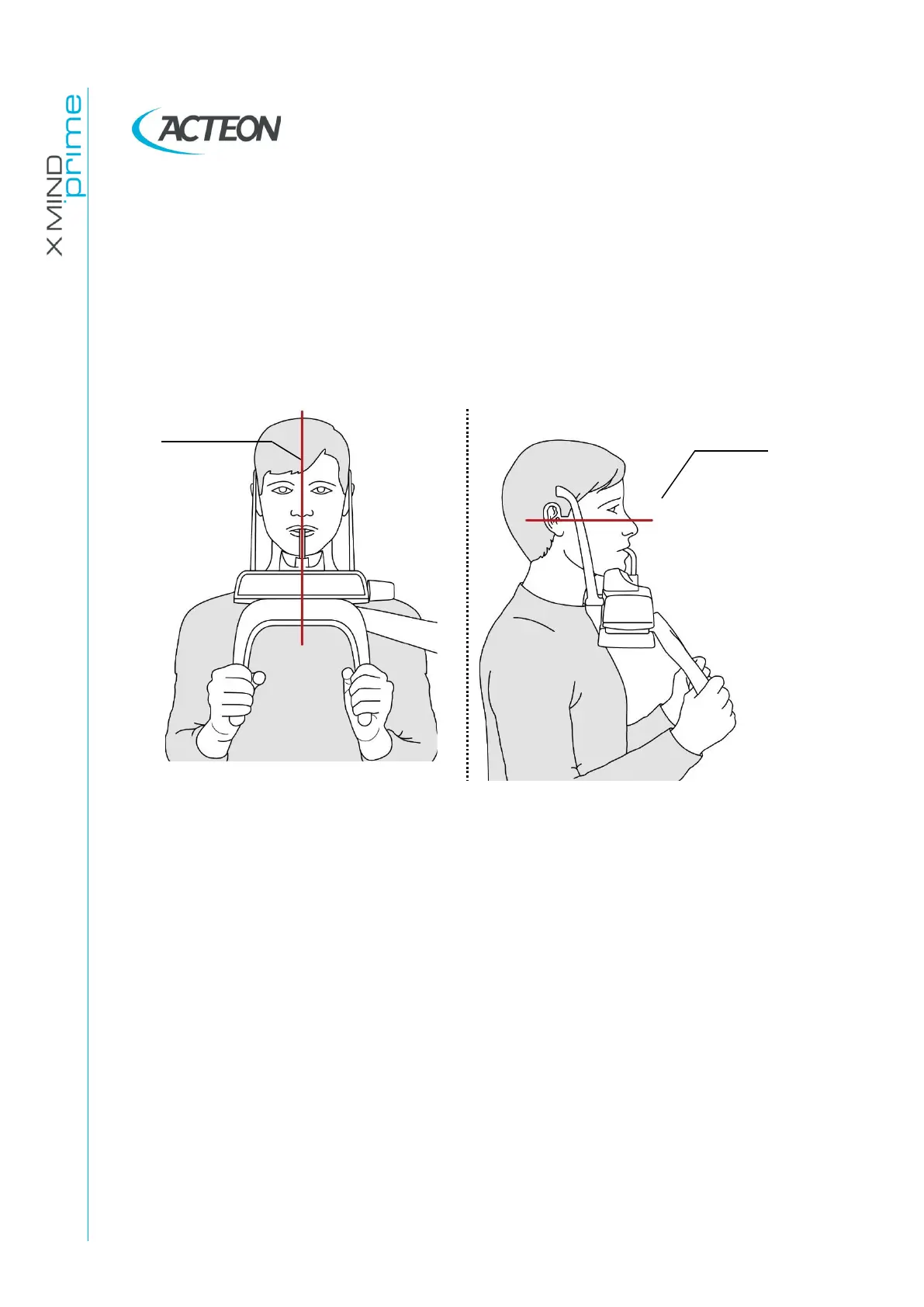

Legend of Reference Lines
45 Mid-sagittal line
46 Frankfurt plane line: plane that identifies a line that ideally connects the hole in
the auricular canal – external auditory meatus - with the bottom edge of the
orbital fossa
Figure 12
45
46
