8.9.1 Preparation of the patient
Note
These positioning instructions are valid both for adult and paediatric patients.
Note
If the unit is installed according to suggested height (see paragraph 6.1), the
chinrest height when the column is in its lower position is at 97.5 cm (38.4")
from the floor, as a consequence, unit can be used with patient at least 118 cm
(3 ft 10.4") high.
Label
Description
45
Sagittal medial line
46
Frankfurt line
1
Sinus positioner
3
Temple claps closing/release knob
4
Laser knob

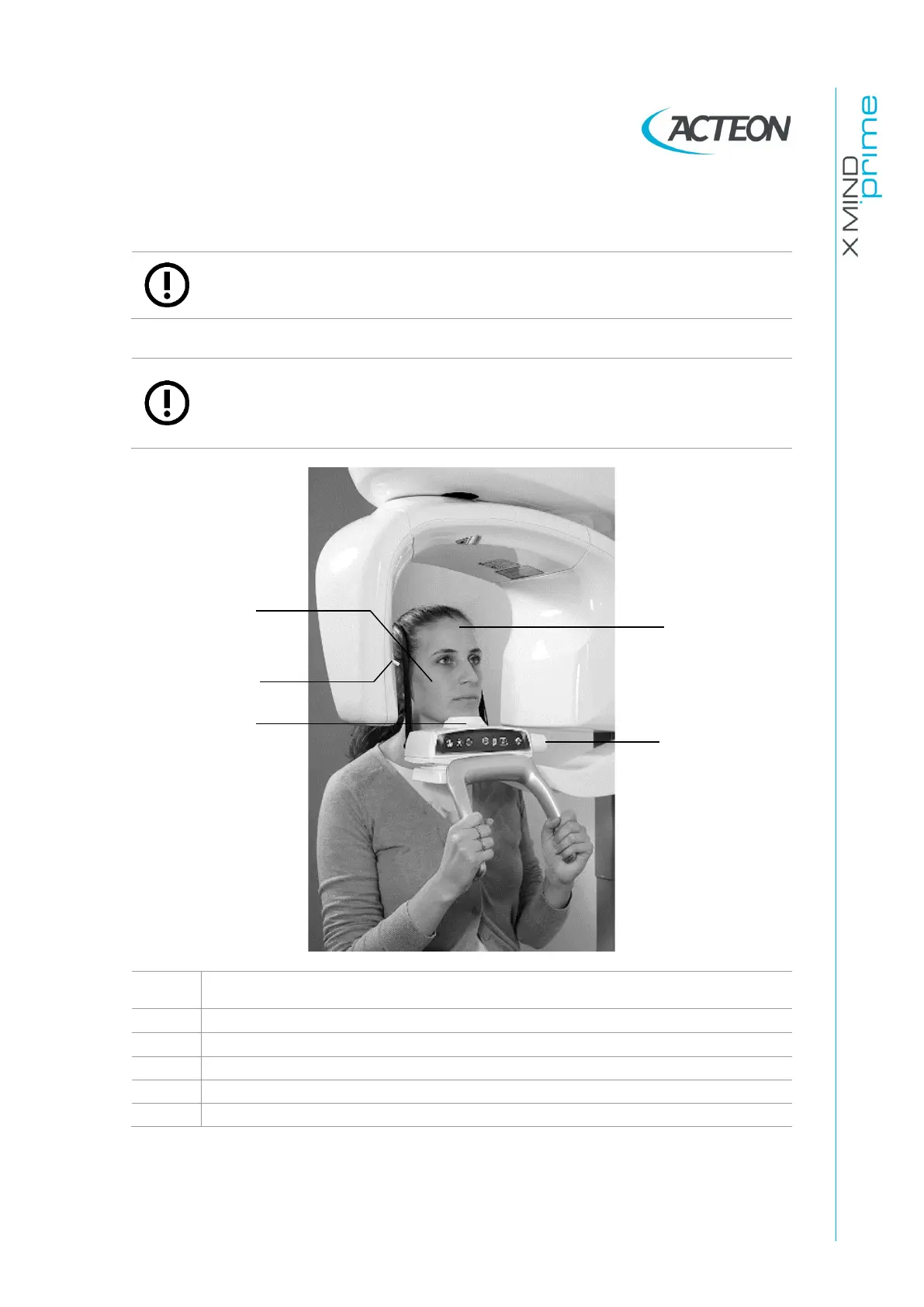

Figure 24: SINUS positioning
46
1
3
45
4
