To access the etCO
2
Monitoring view:

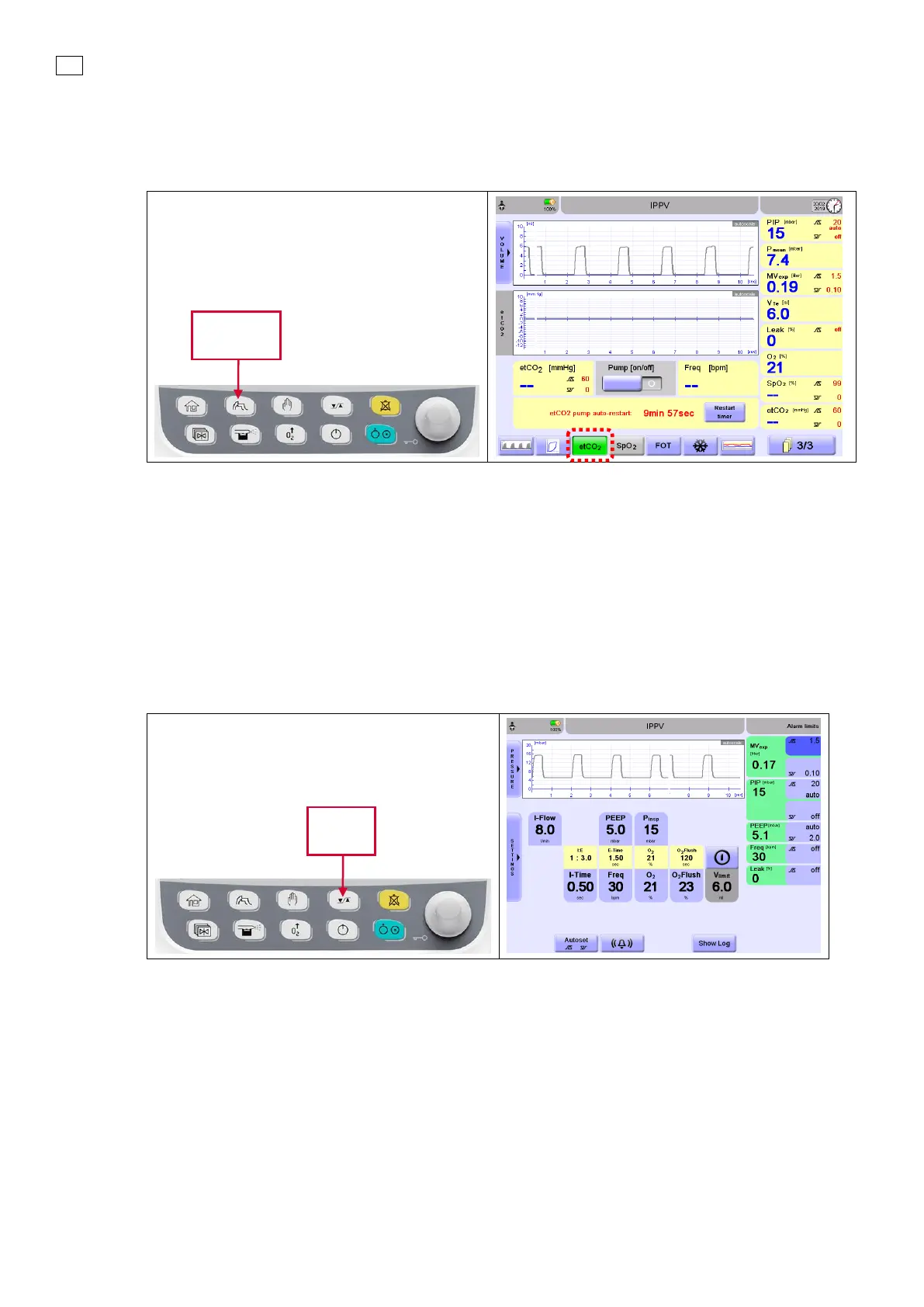

1. Press the Graphics button (Figure 3) and
2. Press the etCO2 button on the touch screen in the Graphics view (Figure 4).
Figure 3 – Hard key buttons
Figure 4 - Graphics view
The etCO
2
subview is dependent on the selected module type and discussed in section “12.2.3.5:
etetCO2 Module settings and information”.
After a module is selected, the following measurement related alarm limits can be set under the
Alarm Limit view (Figure 6), which can be reached by pressing the Alarm Limits button (Figure 5).
• etCO
2
high
• etCO
2
low
• FiCO
2
high
• FiCO
2
low
Figure 5 - Hard key buttons
Figure 6 - Alarm limits
Alarm
Limits
Button
Graphics
Button
