112 Accessories and options
fabian HFO | SW 5.1.x
Ref: 113003.EN / Date 2020-02-10
• For best results, for short term monitoring, use Microstream CO
2
sampling lines with Orange
connectors. For long term monitoring, use Microstream CO
2
sampling lines with Yellow
connectors. Products that include an “H” in the name are intended for long term use.
12.2.3.5 etCO
2
Module settings and information
In the etCO
2

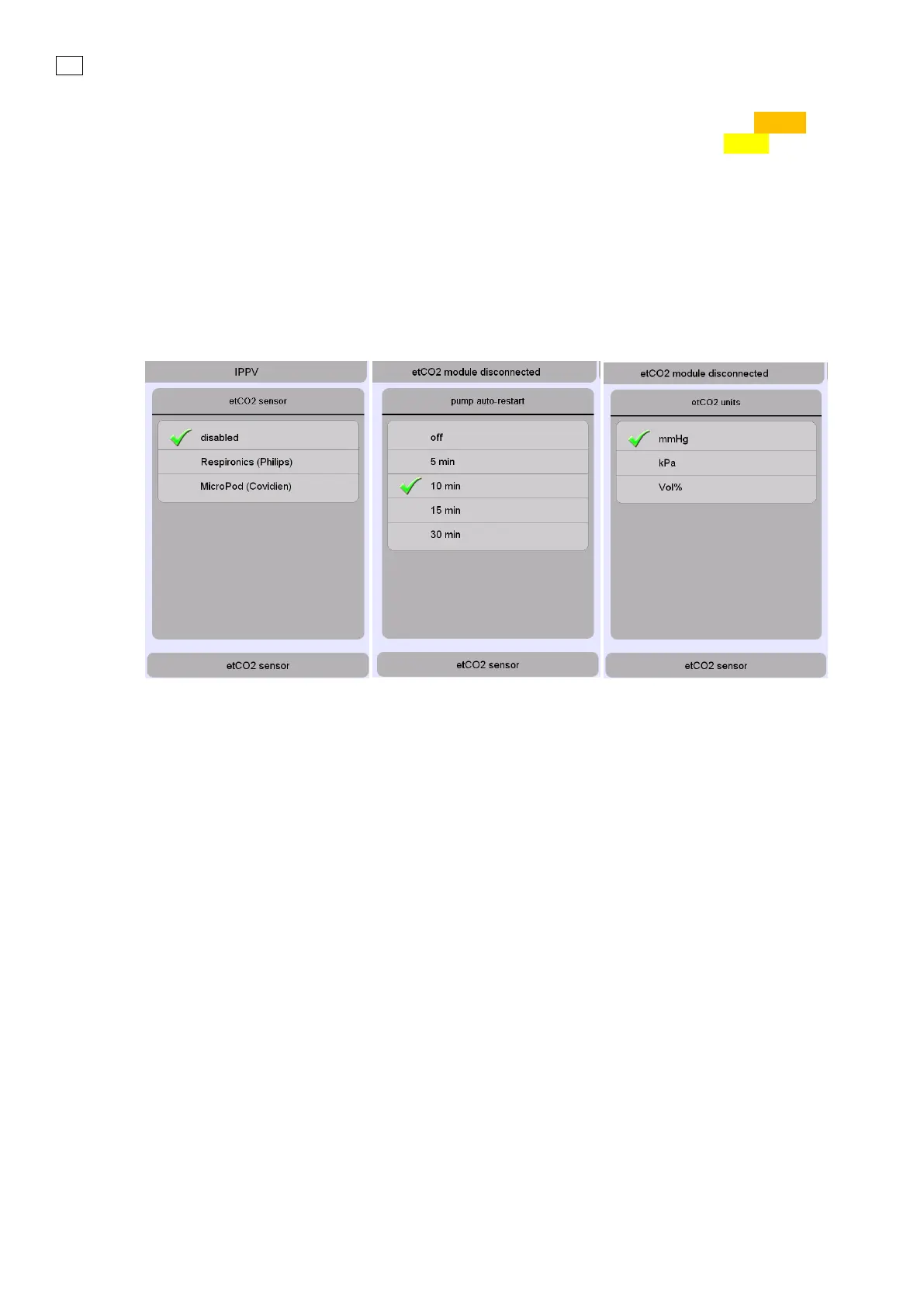

module menu (Figure 16) you can:
• Disable or switch etCO
2
module
• Specify the time until the pump automatically restarts (5, 10, 15 or 30 minutes or OFF) after it has
been manually turned OFF
• Choose the displayed unit for measurement values (mmHg, kPa, Vol%)
Figure 16 - Settings and Information
In addition, the following information on the module is displayed:
• Calibration state
• Serial number
• Service state
• Software release
• The Sensor state
The fabian HFO CO
2
Monitoring View (Figure 17) displays real time CO
2
data. The displayed data
includes:
• Real time “etCO
2
” values along with selected unit “mmHg”, “kPa” or “Vol%”.
• Respiration rate (RR) named “Freq” in breaths-per-minute (bpm).
• etCO
2
Waveform.
