5.6.2 Status Register in 6144-compatible Mode
5-23
Common conditions in which the Device Event Status Register is cleared
• All cleared when the power is turned ON.
• All cleared by *CLS.
• All cleared when read by DSR?.
Conditions in which the Device Event Status Enable Register is cleared
• Cleared when the power is turned ON.
• Cleared when the DSE0 command is executed.
5.6.2 Status Register in 6144-compatible Mode
Figure 5-4 below shows the structure of the Status Byte Register in the 6144-compatible mode, and Table
5-7 describes each bit.

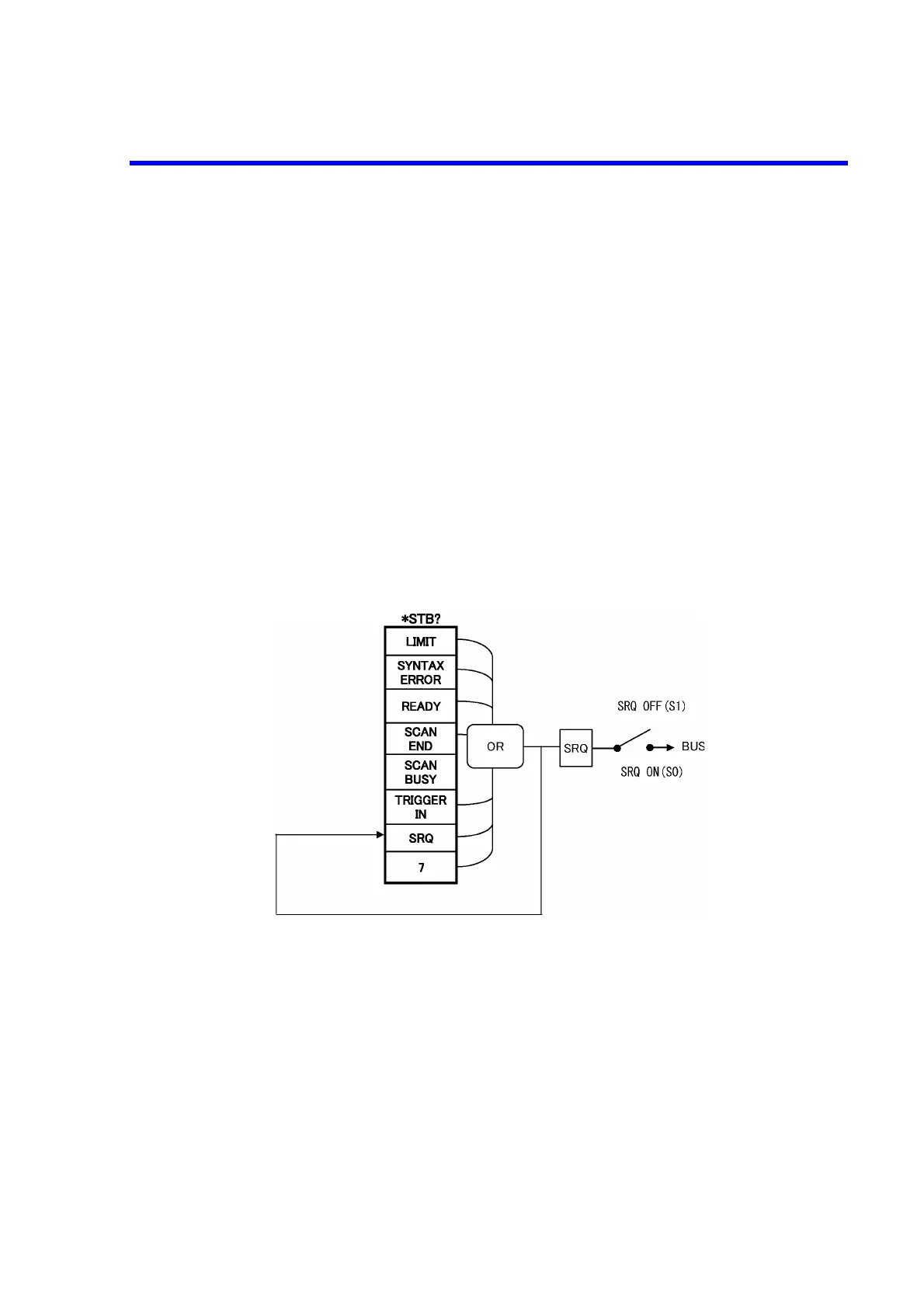

Figure 5-4 Status Byte Register Structure in 6144-compatible Mode
Status Byte Register
Limit detected
Command SYNTAX error
Output completed
Scan completed
Scan in progress
External trigger signal input
Not in use
