3.2.5 MENU Key (Parameter Setting)
3-5
TC.TYP Selects the type of thermocouple.
TC-T: Selects type T (CC).
TC-J: Selects type J (IC).
TC-E: Selects type E (CRC).
TC-K: Selects type K (CA).
TC-S: Selects type S (PR10).
TC-R: Selects type R (PR13).
TC-B: Selects type B (PR30).
TC-N: Selects type N.
TC.STD Selects the standard JIS C1602-1995 or JIS C1602-1981.
Note that JIS C1602-1995 is applied for type N.
1995: Selects JIS C1602-1995 as standard.
1981: Selects JIS C1602-1981 as standard.
R.COMP Sets the room temperature compensation to ON or OFF.
ON: Sets the room temperature compensation to ON.
OFF: Sets the room temperature compensation to OFF.
R.TEMP Sets the room temperature.
Sets the room temperature in the range from -25°C to +85°C.
Note that the room temperature less than 0°C is deemed to be 0°C
for a type B thermocouple.
E.SIG Sets the external control signal. The external control signal ports
are on the rear panel.
OP.I/O Selects the external control signal input or output function for
INTERLOCK/OPERATE IN/OUT.
STBY: Sets Standby when the signal level changes from LO
to HI. Operate is turned ON by using the key or
remote command.

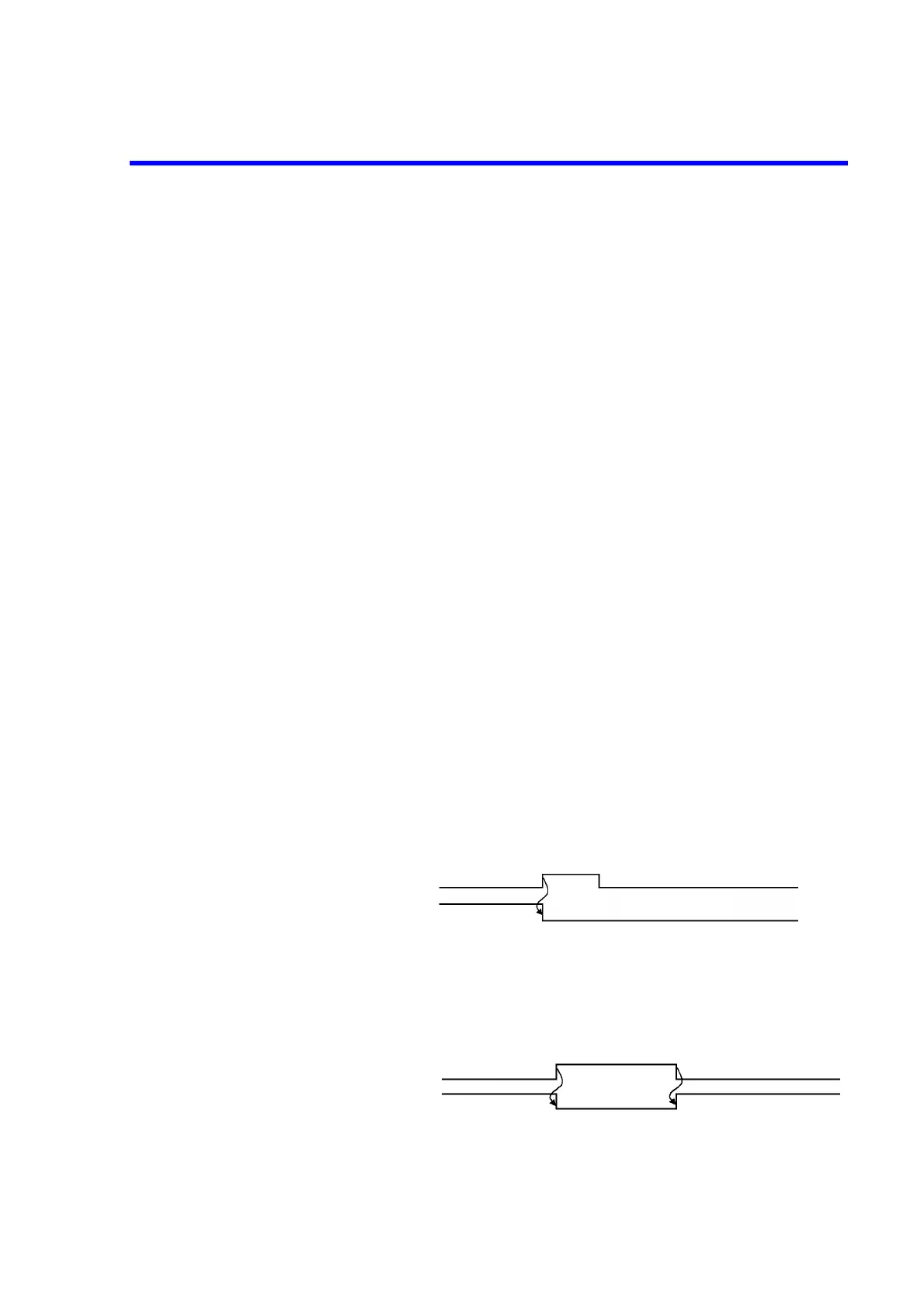

Figure 3-1 STBY IN
OP.SBY: Sets Standby when the signal level changes from LO
to HI. Sets Operate when the signal level changes
from HI to LO.
Figure 3-2 OPR/STBY IN
Operate or Suspend
STBY IN signal input
StandbyOperate status
Operate or Suspend
OPR/STBY IN signal input
Operate status
Standby
Operate
