2.2 Basic Operation
2-10
2.2 Basic Operation
This section describes the following items:
• Setting the source value
• Setting the limit values
• How to use the menu and basic functions
NOTE: The operation procedures listed permit the settings to be made in the shortest time. If the display differs
from the one shown, repeat the procedure from the beginning.
2.2.1 Setting Source Value
2.2.1.1 Relation between Keys

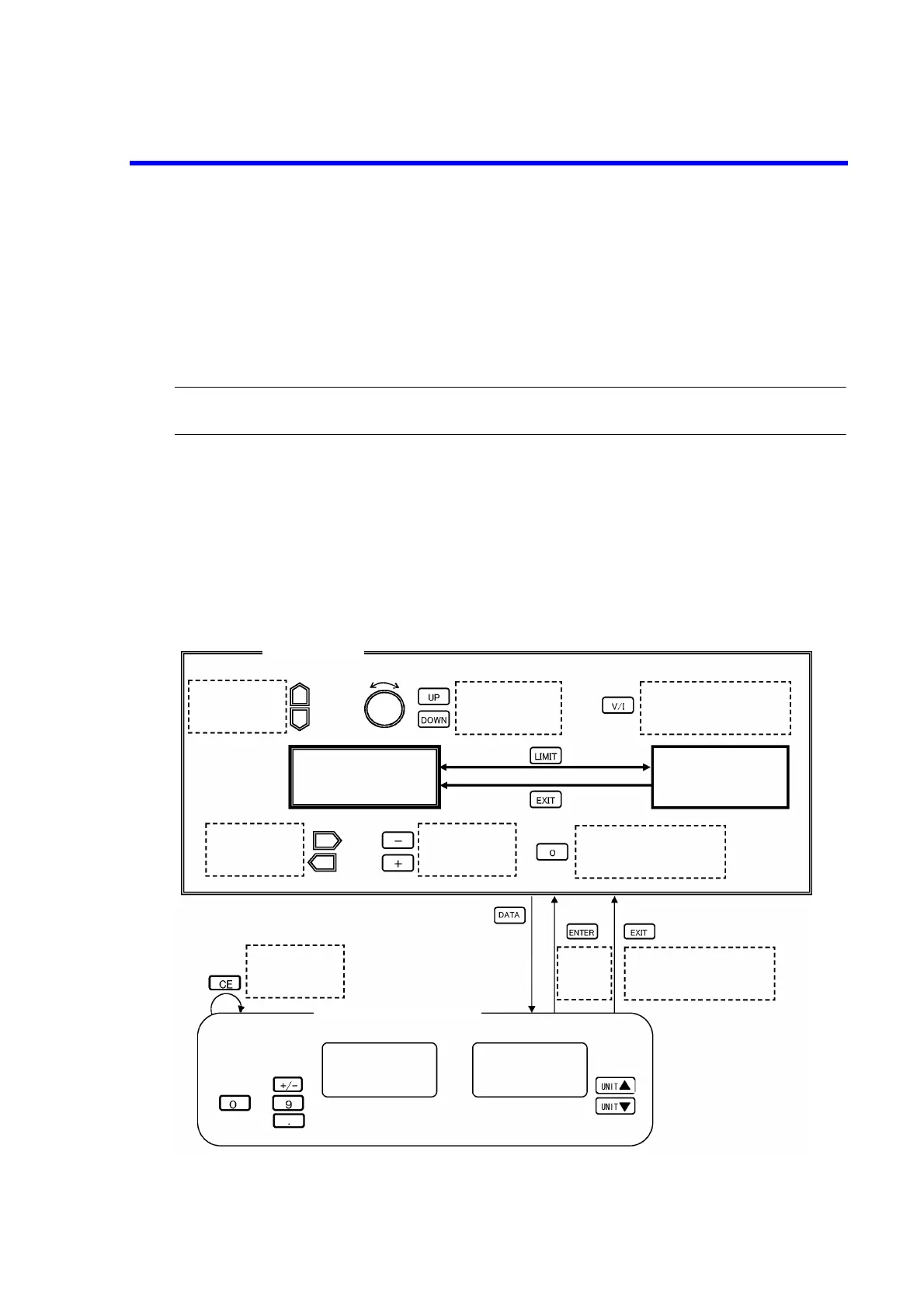

Figure 2-12 shows the relation between keys
Figure 2-12 Relation between Keys
or
Cursor digit value
up and down
Range
up and down
Switches between
voltage and
current source
Source screen
Limit screen
Moves the
cursor
Changes the
polarity
Sets the source value
to zero
∼
NOTE: HOME screen refers to the screen
displaying source value.
Returns to the
previous
value
Applies
the value
Restores the value
Numeric value
(mantissa)
Unit
HOME screen
Direct data input mode
