6146/6156 DC Voltage/Current Generators Operation Manual
7.2.3 DAC Calibration Procedure (6156 Only)
7-6
7.2.3 DAC Calibration Procedure (6156 Only)
The DAC calibration procedure is shown below. DAC calibration is executed using remote commands.
(Manual operation is not available.)
For more information on the remote commands, refer to Section 5.8.3, "Remote Command List."
Use DMM in fixed ranges.

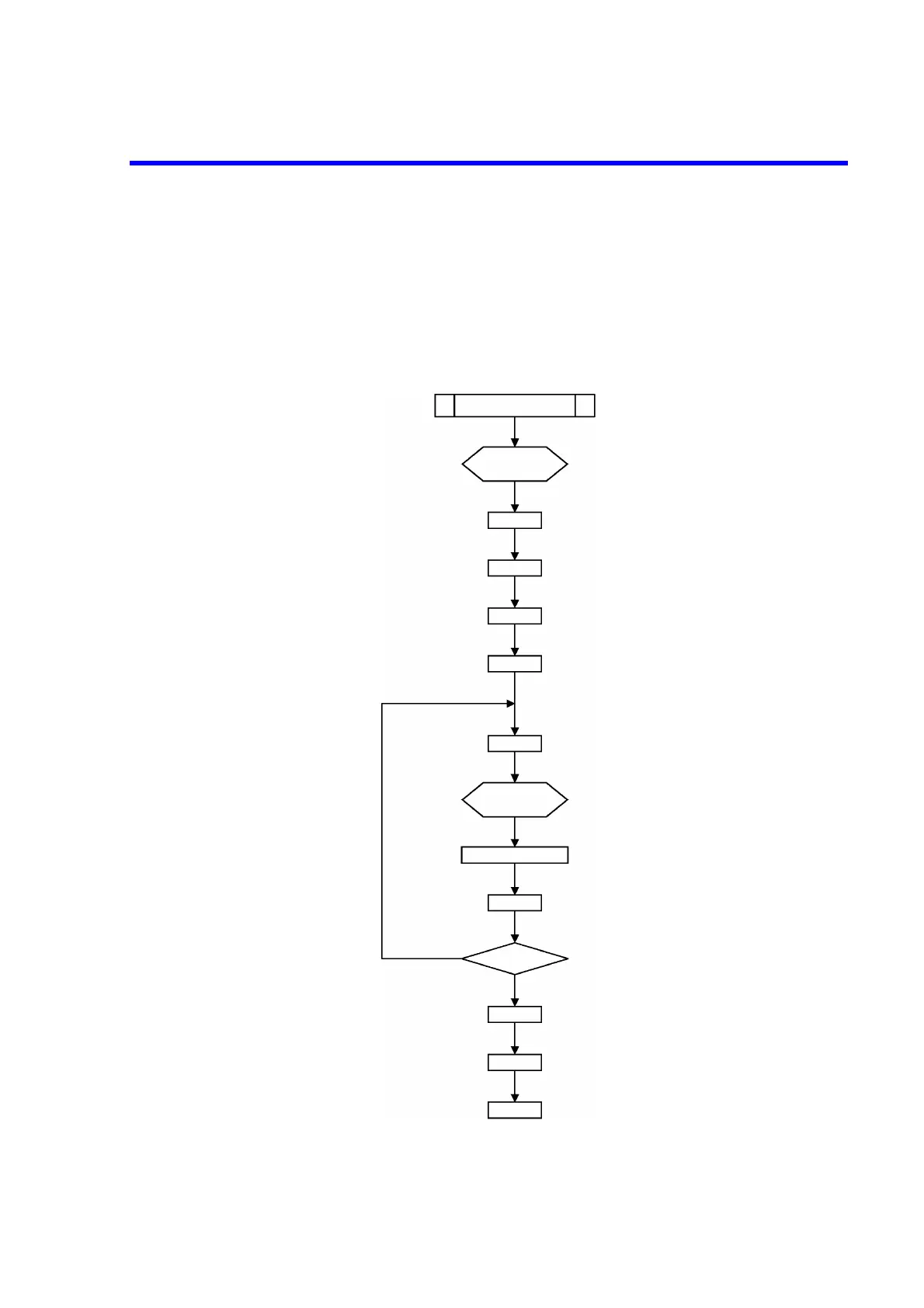

Figure 7-3 DAC Calibration Procedure
DAC calibration
DMM connection
DCV
OPR
Calibration mode operation
XF4
n = 1
XKn
DMM data
acquisition
n + 1
n > 12
SBY
XDT DMM data
XWR
CAL0
No
Yes
XK1 to XK 12 execution
DAC calibration mode
CAL1
Enter calibration mode.
DAC calibration command
DMM data input
ex. “XDT-0.00065”
Calibration mode standby
Calibration data save (RAM to Flash)
Calibration mode complete
