ADCMT 6146 - Connections for Calibration

6146/6156 DC Voltage/Current Generators Operation Manual
7.1.3 Connections
7-3
7.1.3 Connections
The following figure shows connections for calibrating voltage source, voltage limiter and DAC using
DMM and connections for calibrating current source and current limiter using DMM.

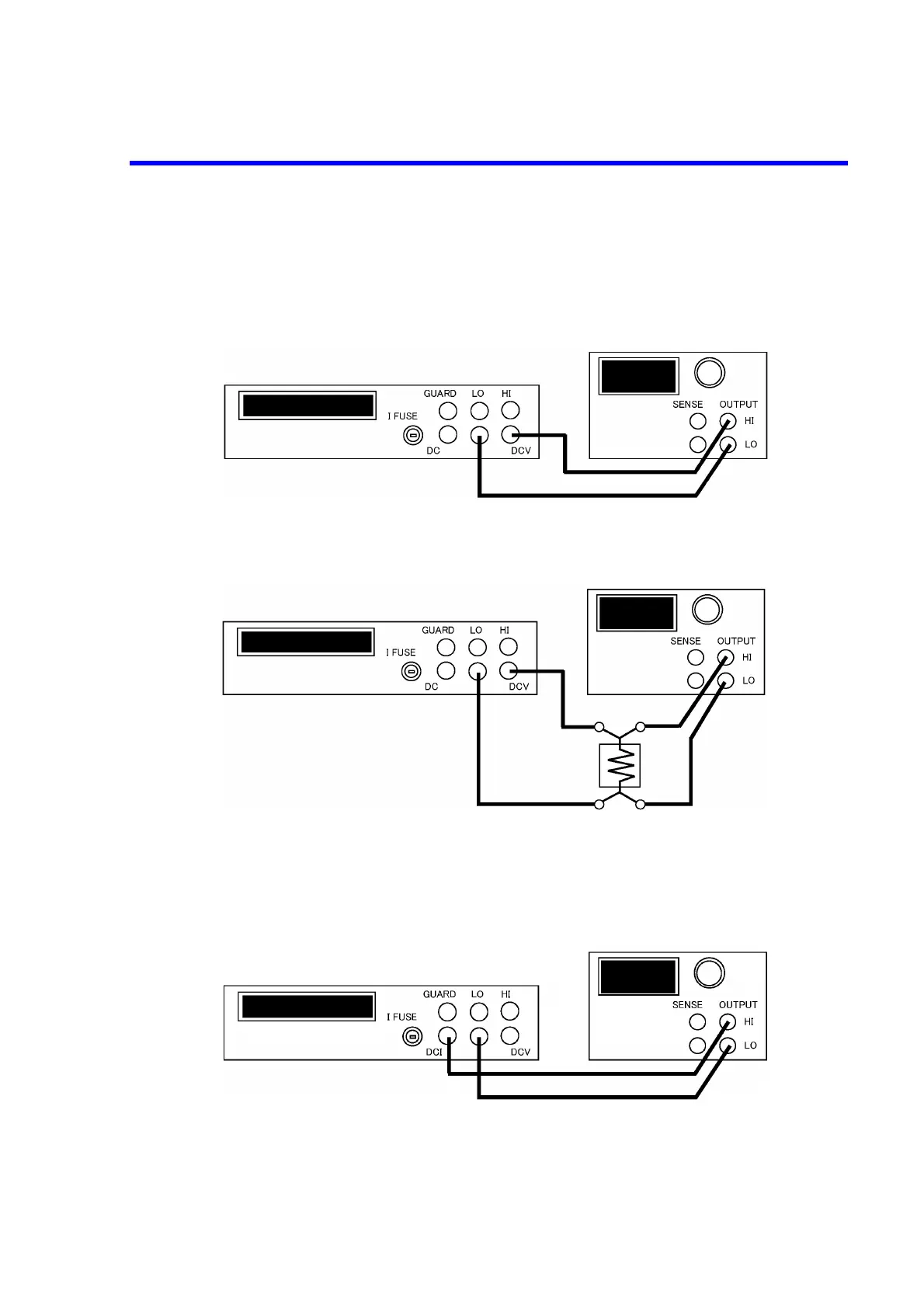

Figure 7-1 Connections for Calibration
Standard
resistance*
6146/6156
6581
6146/6156
6581
*: 200 mA range, current limiter calibration: 1 Ω
30 mA range calibration: 100 Ω
3 mA range calibration: 1000 Ω
(a) Checking and calibrating voltage source and voltage limiter and calibrating DAC
(b) Checking and calibrating current source and current limiter (when using a shunt
resistance)
6146/6156
DMM
(c) Checking and calibrating current source and current limiter (when using DCI of DMM)
