6146/6156 DC Voltage/Current Generators Operation Manual
2.1.1 Front Panel
2-6
2.1.1.7 Output Section

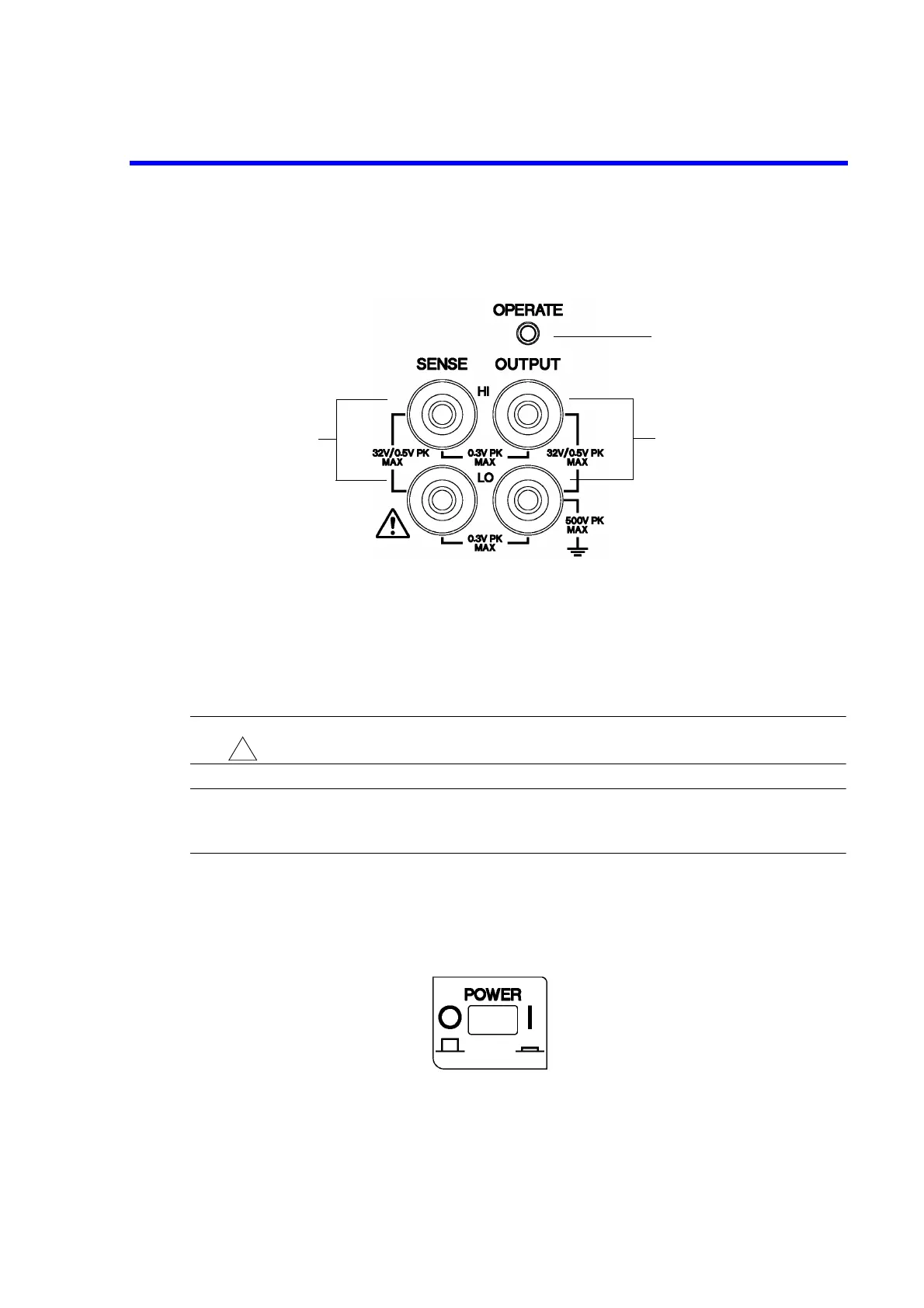

Figure 2-8 Output Section
1. OUTPUT terminals Voltage and current output terminals
2. SENSE terminals Functions as sensing terminals for voltage output in the remote
sense mode (4-wire connection).
3. OPERATE indicator Lights in Operate status and blinks in Suspend status.
WARNING: A hazardous voltage is output if an external hazardous voltage is applied to the case, causing a
potential difference between the case and the LO. Electric shock danger.
CAUTION: Do not apply voltage from the outside in the 30 mV and 300 mV ranges that employ resistive divid-
ing output.
The internal circuits may be damaged because the limiters do not function in these ranges.
2.1.1.8 POWER Switch
Figure 2-9 POWER Switch
1. POWER switch Turns the power ON or OFF.
