6146/6156 DC Voltage/Current Generators Operation Manual
5.9.3 Program Example 2-Memory Setting, Scan Operation and Voltage/Source Measurement
5-53
5.9.3 Program Example 2-Memory Setting, Scan Operation and Voltage/Source Mea-
surement
Set voltage source of 0 V → +5 V → 0 V by steps of 100 mV in the memory of the 6146/6156. Then,
generate DC voltage using the memory recall mode and measure voltage and current by DMM.
Perform the above recall operation and measurement operation twice.
The number of repetition, the number of measurement, the memory number, the source values and the
measured values are stored in the Excel sheet.

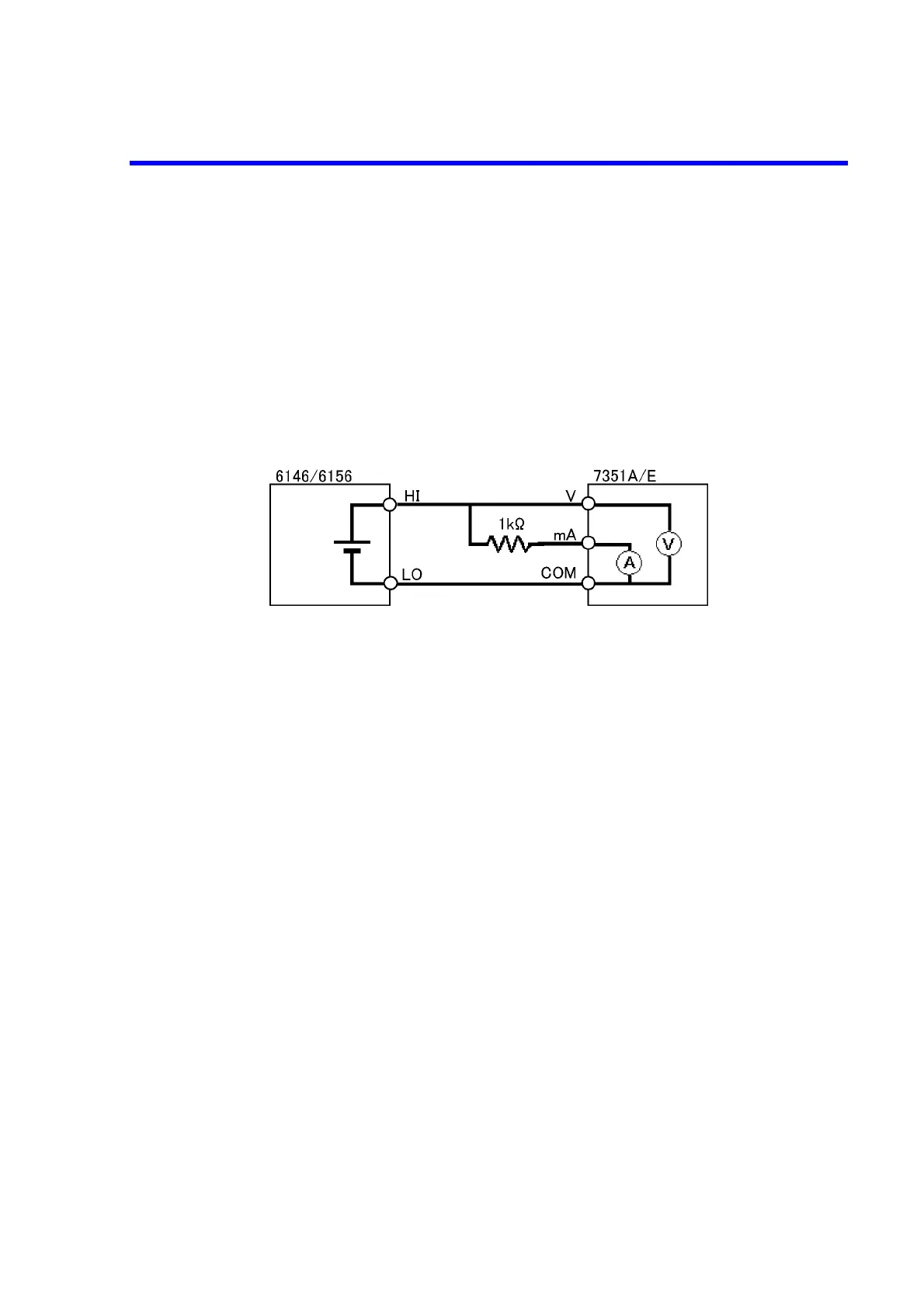

Connection diagram
Function: DC voltage source
Source range: 0 V to +5 V
Voltage step: 100 mV
Sensing status: Internal (2W)
Scan mode: Hold
DMM: 7351A/E
Measurement function: DC voltage, DC current
Measurement range: Auto
Sampling rate: MED (integration time: 20 ms)
Header: OFF
(Execution result examples)
(Number of repetition) (Number of measurement) (Memory number) (Source voltage) (Measured voltage) (Measured current)
1 1 0 +00.0000E-3 -000.007E-03 -000.001E-03
1 2 1 +100.000E-3 +091.004E-03 +000.090E-03
1 3 2 +200.000E-3 +182.045E-03 +000.178E-03
......
Omitted . . . . .
......
2 200 98 +200.000E-3 +0182.04E-03 -000.181E-03
2 201 99 +100.000E-3 +091.006E-03 +000.090E-03
2 202 100 +00.0000E-3 -000.006E-03 -000.001E-03
To Next Page
