Head Up Relay or Head Down Relay Replacement 3D3109 Advanced

™

Osmometer 3250/Cryoscope 4250 Service Manual

325P109 Rev2

(3255 Service Manual)

Page 2 of 2

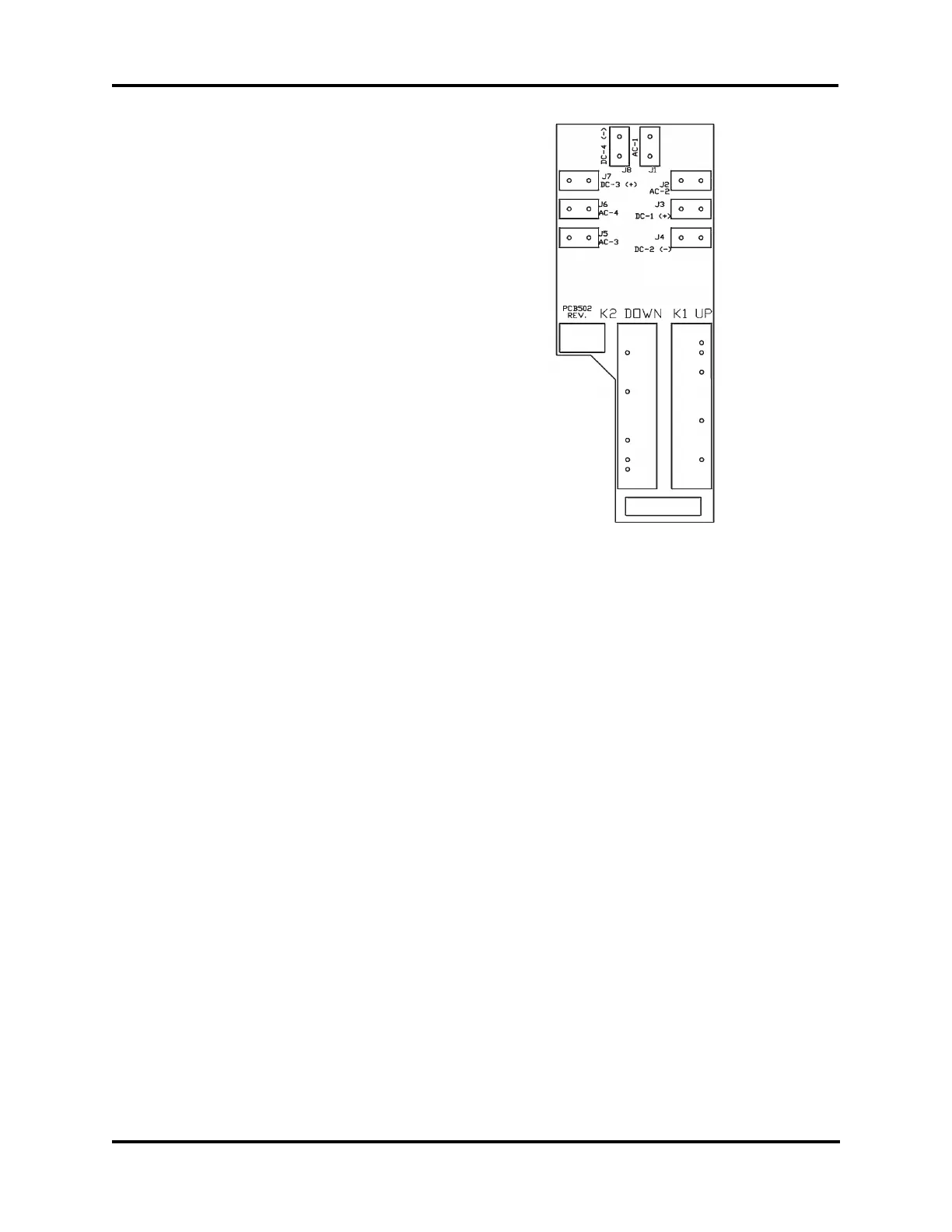

Figure 2

7. K1 is the relay for moving the head up.

Connect:

Blue to J3

Orange to J4

Brown/white to J1

Yellow to J2

8. K2 is the relay for moving the head

down. Connect:

Blue to J7

White to J8

Brown/white to J5

Gray to J6

9. Reassemble by reversing steps 1-3.
