Probe Alignment Instructions for Alignment Tool
3LA702 or Alignment Toolkit 3LA700
Reference: Use this instruction with part
3LA702 or kit 3LA700 and any
of the following models of
Advanced Instruments, Inc. or
Fiske Associates
®
osmometers or
cryoscopes:
Advanced Instruments Inc.
4250, 4D3 & 4C3 Cryoscopes
3250, 3D3 & 3900 Osmometers
Fiske Associates
Mark 2 Cryoscopes
Mark 3 Osmometers
Tools Needed: Phillips or flat-bladed screw-
driver; small flat-bladed
screwdriver; 5/64”, 9/64” and
1/16” Allen wrenches.
Proper alignment and adjustment of the man-
drel, probe and stir/freeze wire are of utmost
importance to assure accuracy, precision and
proper operation of the instrument. Use the
probe alignment tool to precisely center the
probe and position the stir wire according to
factory specifications.
Figure 1 shows all of the components of the
sample head. Although an osmometer head is
shown, a cryoscope head is almost identical,
with the only differences being the material of
the sample probe and the diameter and shape
of the stir wire.
The alignment and adjustment of the mandrel,
sample probe, and stir/freeze wire on the
Model 3900 multi-sample osmometer and
For additional information or technical assistance,
please contact Advanced Instruments Hot-Line
®
Service
Center. (U.S. 1-800-225-4034, outside North America
+US 1-781-320-9000. After normal business hours, dial
extension 2191.)
3LP700 Rev10
(4C35/4D35/3255/MK05 Service Manual)
Page 1 of 5

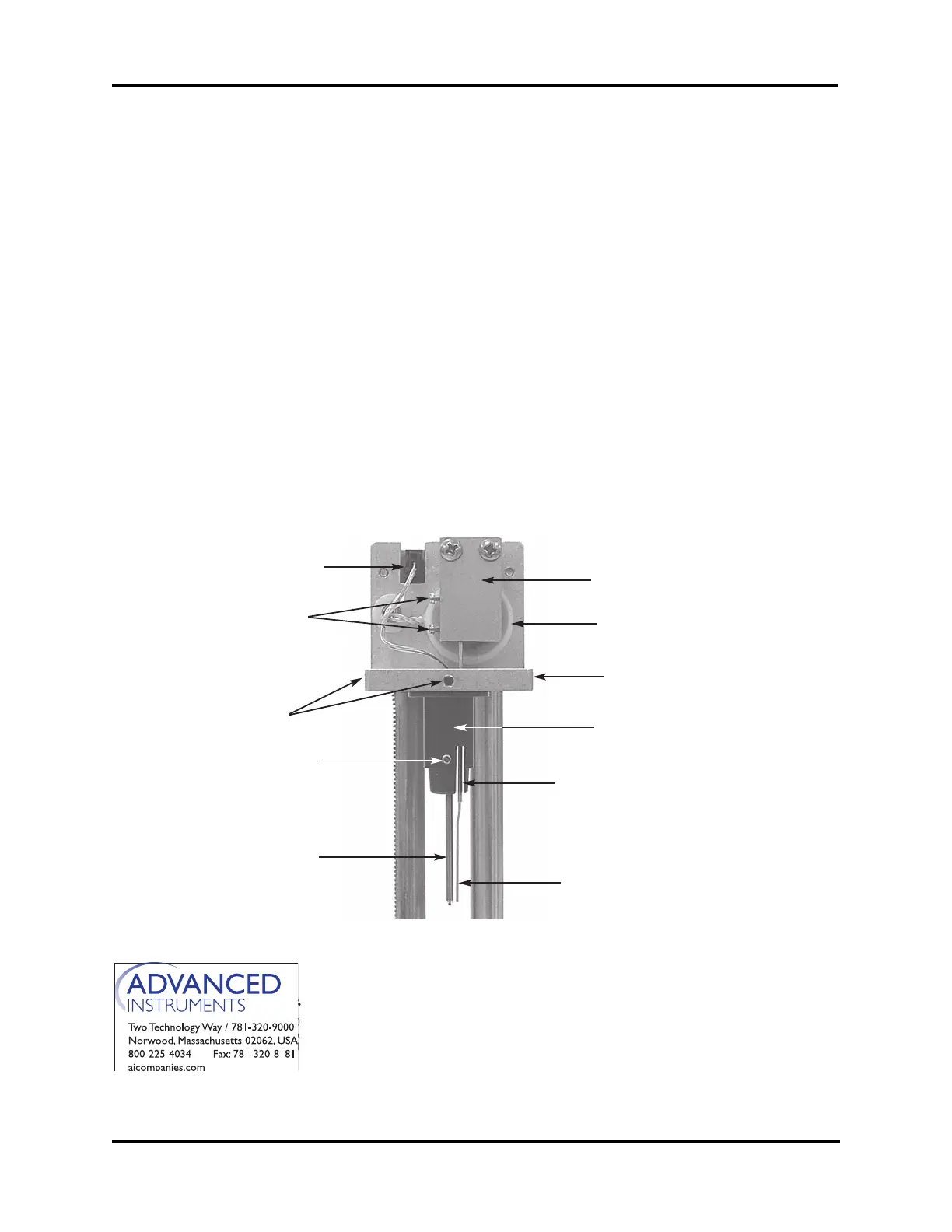

Figure 1. Osmometer Sample Head
Clapper
Coil
Head
Mandrel
Sample Probe Connector
Stir Wire Setscrews
Mandrel Setscrews
Sample Probe Setscrew
Stir Wire Slot in Mandrel
Stir Wire
Sample Probe
