325P511 Rev1
(3255 Service Manual)
Page 2 of 2
shown, then reinstall them onto the
replacement keypad.

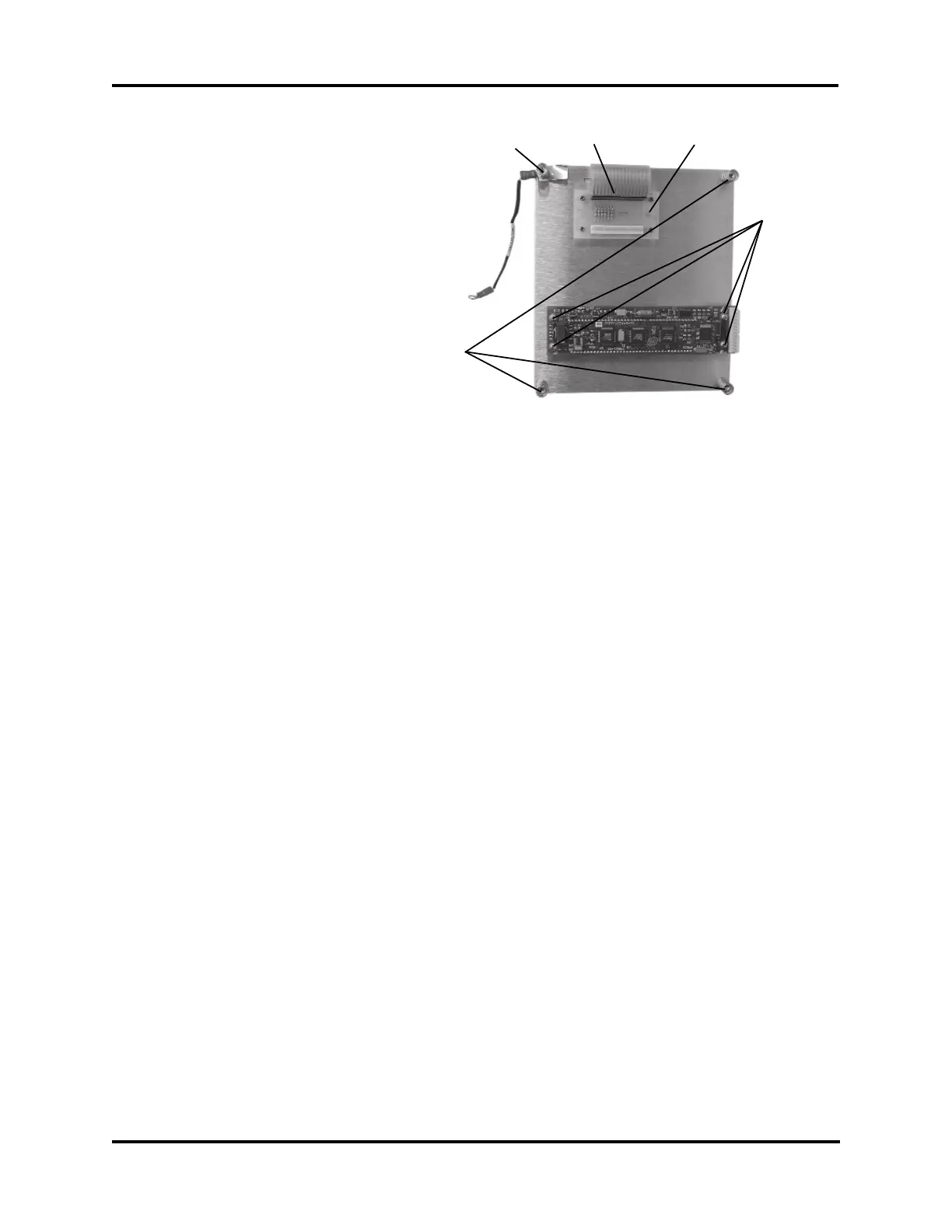

12. Remove the spring, standoff, and ground
strap (H) from the keypad as shown, then
reinstall onto the replacement keypad
making sure to attach the keypad ground
under the ground strap and standoff.
13. Install the assembled replacement keypad
assembly to the keypad support bracket
using the four screws removed in step 6.
14. Connect the ground strap using the
bracket mounting screw removed in step
7.
15. Connect the keypad and display harness
connectors (A).
16. Return the keypad to its normal, installed
position. Replace the instrument and
head covers, and restore power to the
instrument.
D
G
H
E
F
To Next Page
