Chapter 2 System Setup and Maintenance
2.3 Installing/Changing the Motherboard and
Heatsink Set
With high performance and easy maintenance fanless heatsink, each ARK-
6310 compact embedded computer is equipped with an
Advantech Mini-ITX
motherboard. Please refer to the following steps to install or replace a motherboard
and heatsink set.
1. Place and screw the motherboard into the chassis.

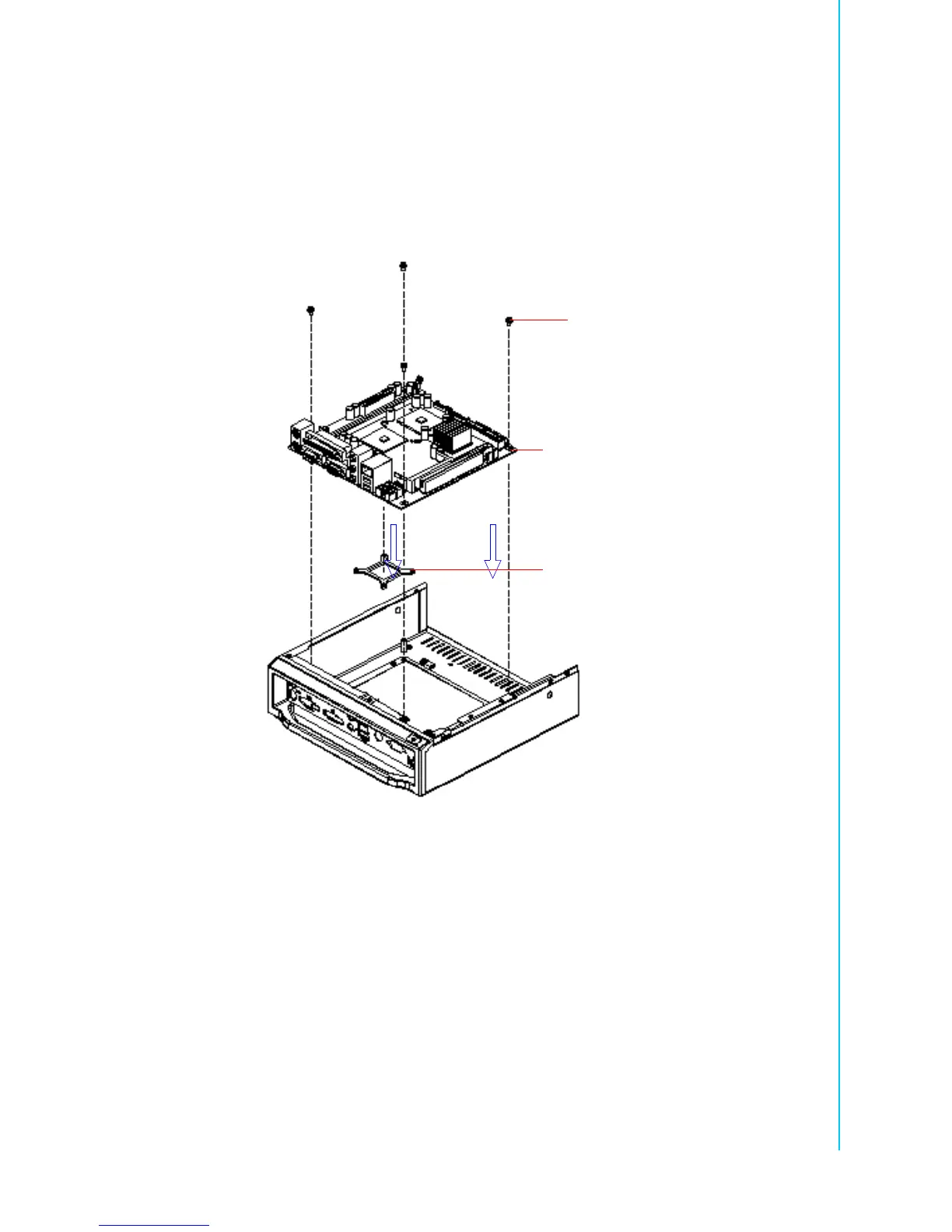

Figure 2.3 Installing the motherboard
#6-32 screws x 4 pieces
Supported Mini-ITX motherboard
Processor Retention Module (RM)
remove the tape and attach the RM
to the processor location from
solder side.
To Next Page
