Chapter 2 System Setup and Maintenance

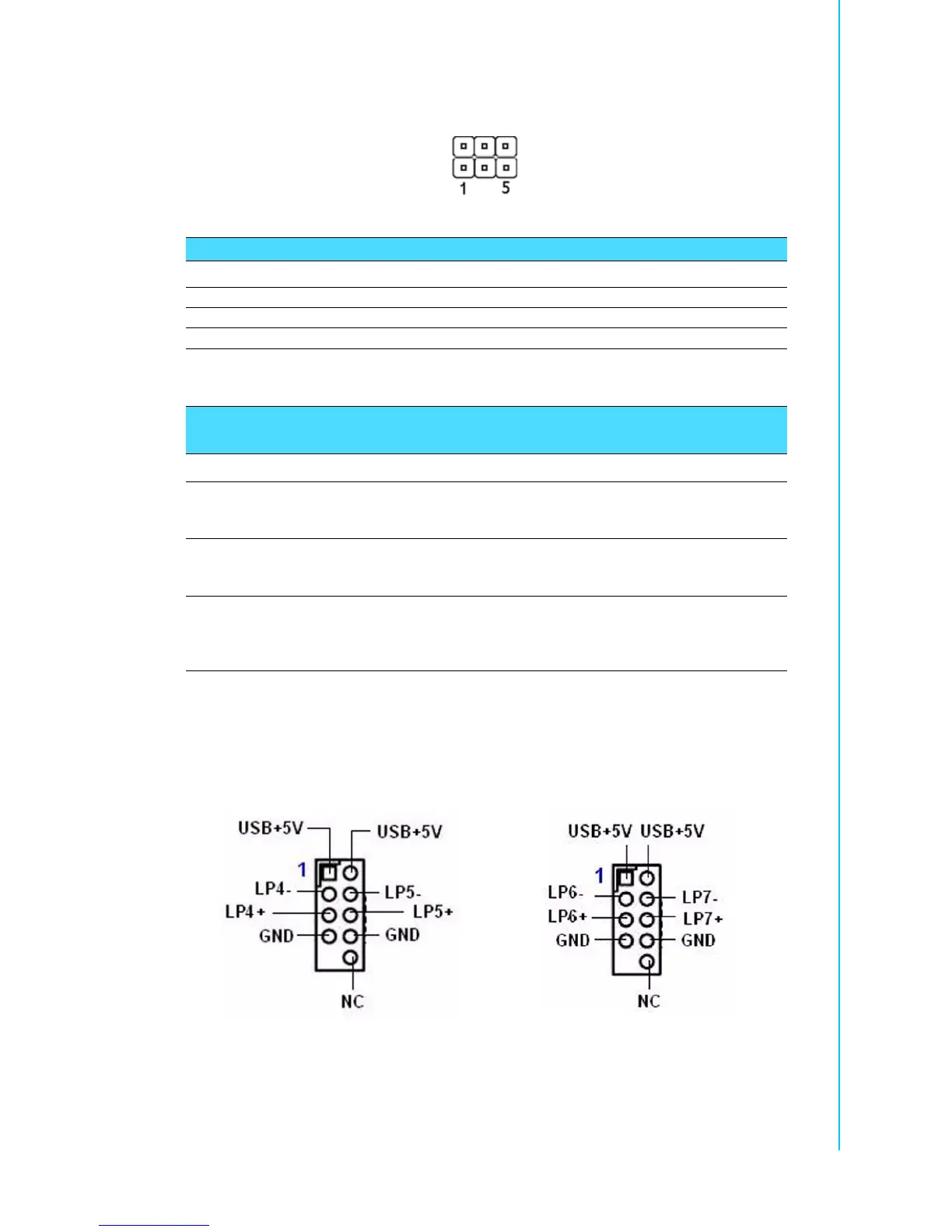

2.7.12 TV Out Connector (JTV1 on ARK-6310-3M01E/02E)
Signal Description - TV Out Connector (JTV1 on ARK-6310-3M01E/02E)
2.7.13 USB Connectors (USB3 ~ 4 on ARK-6310-6M01E)
Table 2.15: TV Out Connector (JTV1 on ARK-6310-3M01E/02E)
Signal PIN PIN Signal
TVCVB 1 2 GND
TVYFCC2 3 4 TVCFCC2
GND 5 6 GND
Table 2.16: Signal Description - TV Out Connector (JTV1 on ARK-6310-
3M01E/02E)
Signal Signal Description
TVYFCC2 Luma / Green Output. This pin outputs a selectable video signal. The
output is designed to drive a 75 ohm doubly terminated load. The out-
put can be selected to be S-video luminance or green.
TVCFCC2 Chroma / Green Output. This pin outputs a selectable video signal.
The output is designed to drive a 75 ohm doubly terminated load. The
output can be selected to be S-video chrominance or red
TVCVB Composite Video / Blue Output. Chroma / Green Output. This pin out-
puts a selectable video signal. The output is designed to drive a 75
ohm doubly terminated load. The output can be selected to be com-
posite video or blue.
USB3
USB4
