Chapter 4 BIOS Setup
4.5.4.2 Onboard Device
Table 4.19: OnChip IDE Device
Item Options Description
On-Chip Primary PCI IDE
On-Chip Secondary PCI
IDE
Enabled
Disabled
The chipset contains a PCI IDE interface with
support for two IDE channels. Select Enabled
to activate the primary/secondary IDE inter-
face. Select Disabled to deactivate this inter-
face.
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Secondary Master PIO
IDE Secondary Slave PIO
Auto
Mode 0
Mode 1
Mode 2
Mode 3
Mode 4
The IDE PIO (Programmed Input/Output)
fields let you set a PIO mode (0-4) for each of
the four IDE devices that the onboard IDE
interface supports. Modes 0 through 4 pro-
vide successively increased performance. In
Auto mode, the system automatically deter-
mines the best mode for each device.
IDE Primary Master UDMA
IDE Primary Slave UDMA
IDE Secondary Master
UDMA
IDE Secondary Slave
UDMA
Auto
Disabled
Ultra DMA implementation is possible only if
your IDE hard drive supports it and the oper-
ating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus
master driver). If the hard drive and the sys-
tem software both support Ultra DMA, select
Auto to enable BIOS support.

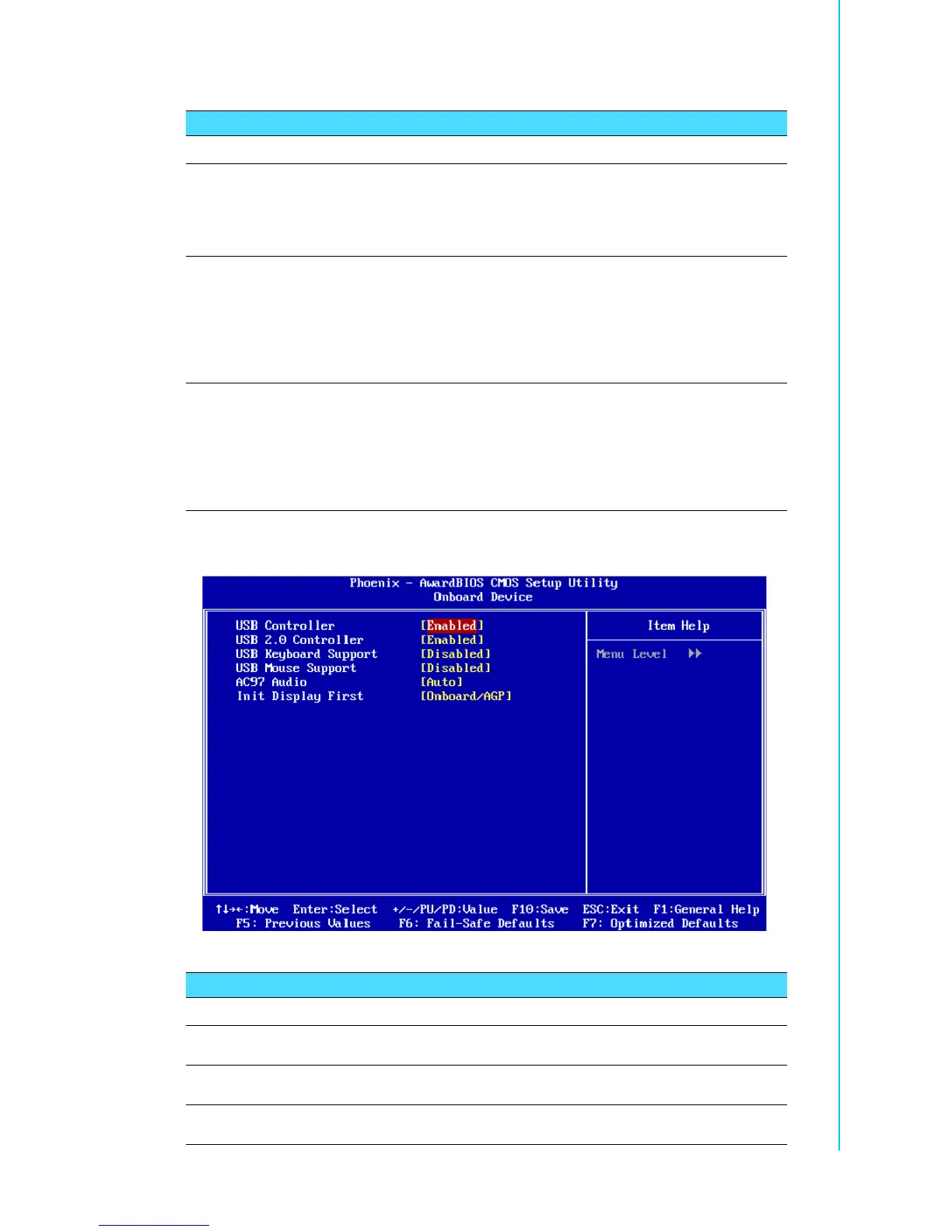

Table 4.20: Onboard Device
Item Options Description
USB Controller
Enabled
Disabled
This item allows you to set the USB Control-
ler.
USB 2.0 Controller
Disabled
Enabled
This item allows you to set the USB 2.0
Controller.
USB Keyboard Support
Enabled
Disabled
This item allows you to set the system's
USB keyboard to Enabled/Disabled.
