ARK-6310 User Manual 20

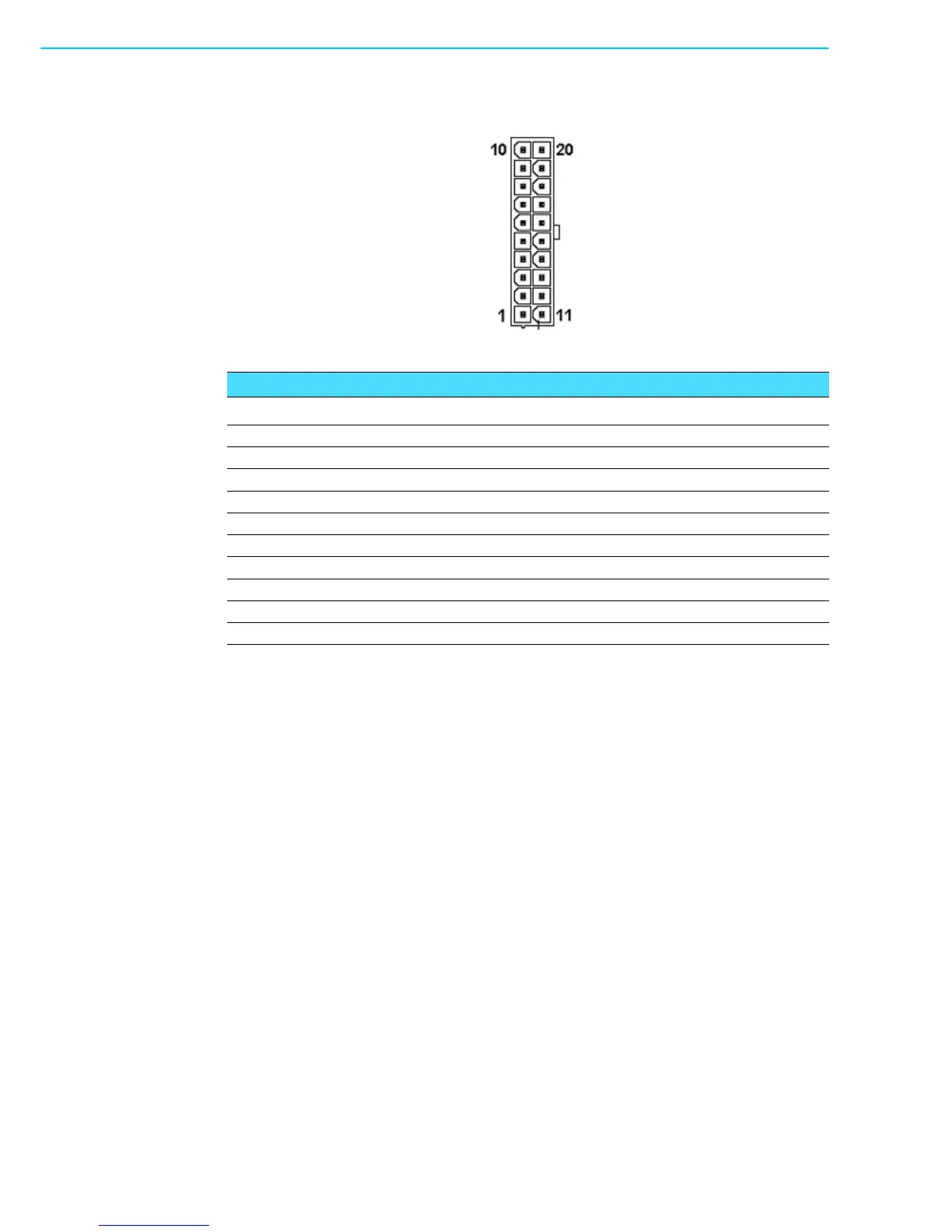

2.7.4 ATX Power Connector (ATXPWR1)
Table 2.4: ATX Power Connector (ATXPWR1)
Signal PIN PIN Signal
+12V 10 20 +5V
VCCSB 9 19 +5V
PWROK 8 18 -5V
GND 7 17 GND
+5V 6 16 GND
GND 5 15 GND
+5V 4 14 PS_ON
GND 3 13 GND
+3.3V 2 12 -12V
+3.3V 1 11 +3.3V
