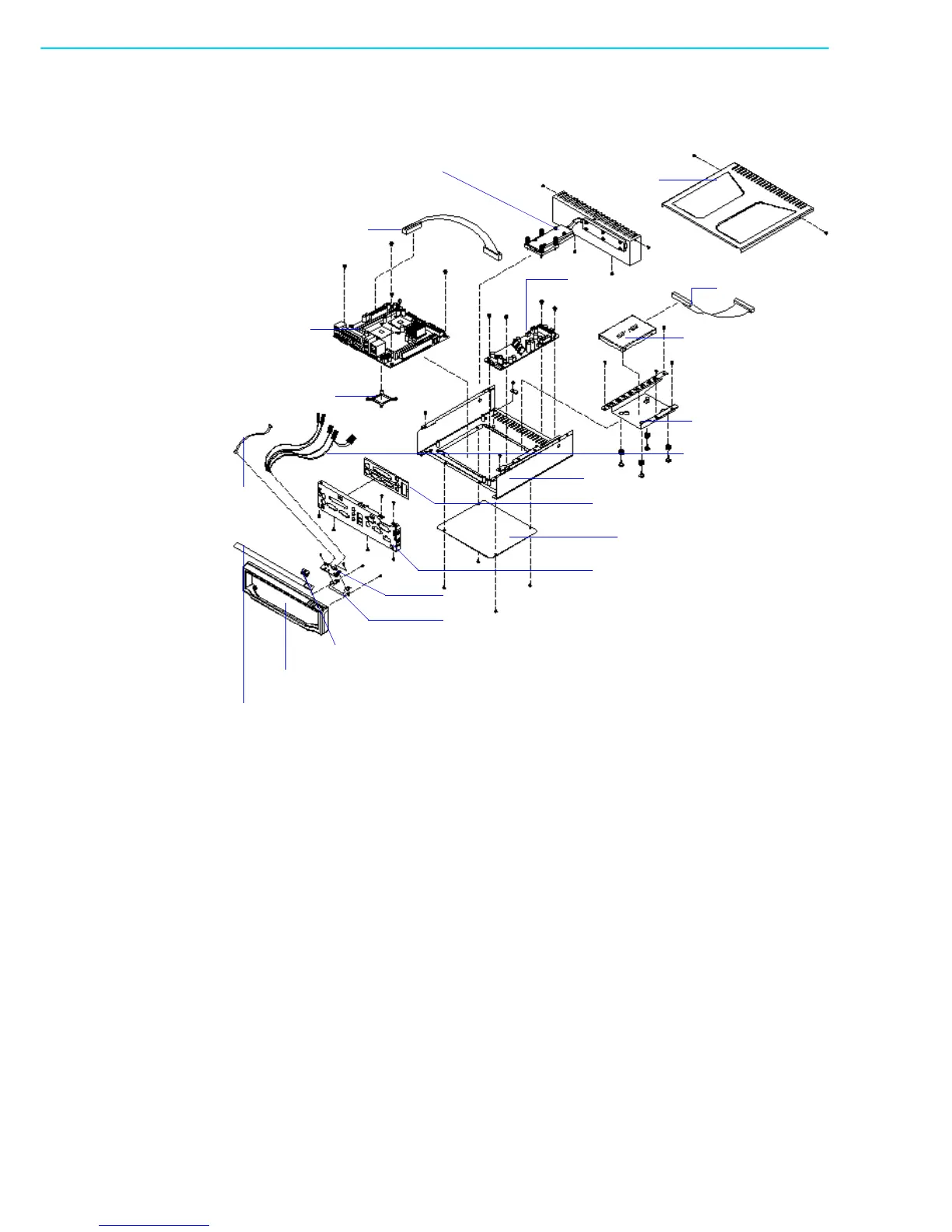

A.1 Exploded Diagram of ARK-6310
Figure A.1 Exploded Diagram of ARK-6310
Top cover
Heatsink set
ATX power cable
Mini-ITX
motherboard
Rear-heatsink
bracket
Thermal
sensor cable
Power button &
LED cable set
LED board
Indicator panel
Front bezel
Power button
LED board holder
Front cover
Chassis
Bottom cover
Fabric-over-foam
Disk driver bay
2.5” disk drive
Power board
HDD data cable
