ARK-6310 User Manual 14
ARK-6310-6M01E provides two 200-pin SODIMM sockets to support DDR2 SDRAM.
The total maximum memory size is 4 GB.

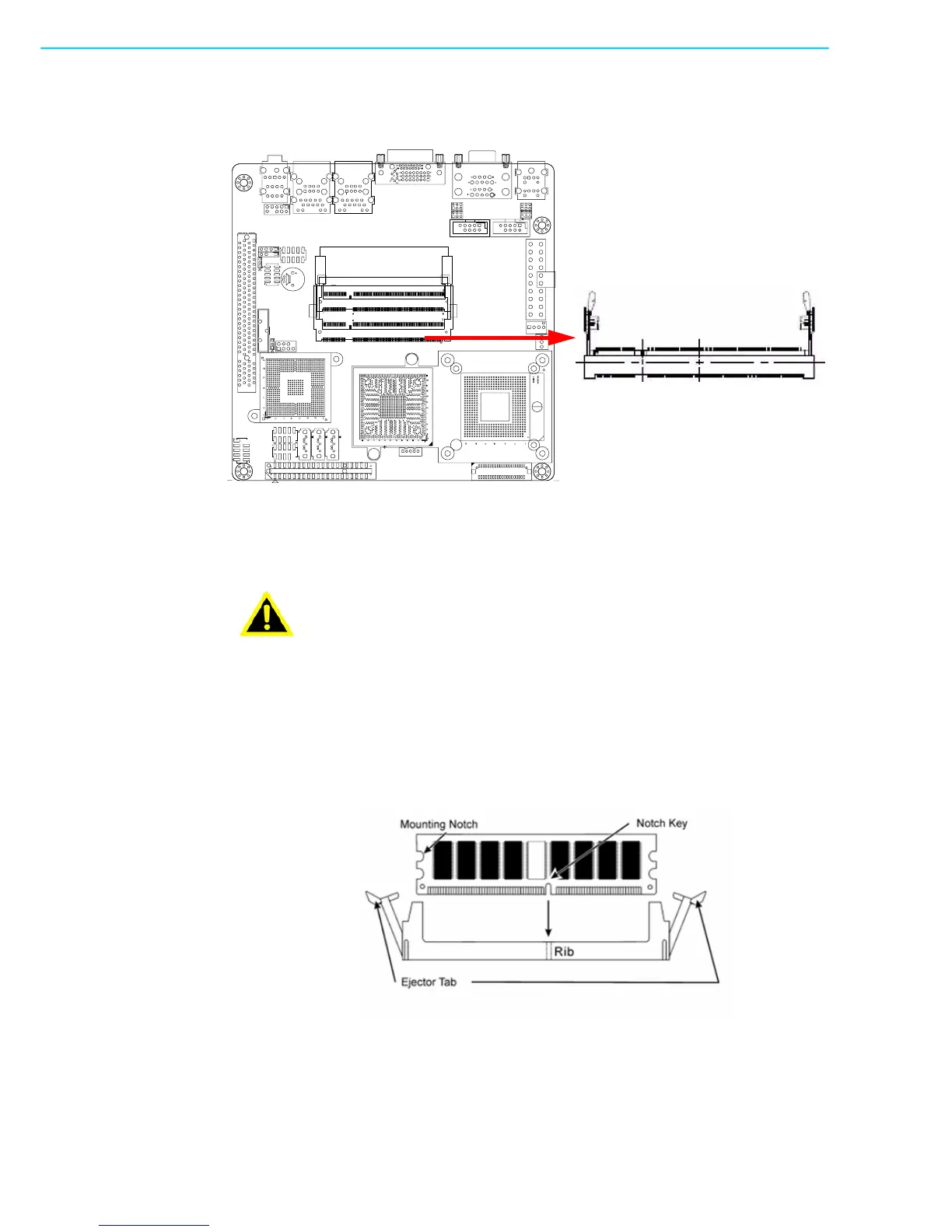

Figure 2.8 ARK-6310-6M01E SODIMM Sockets Location
! Locate the DIMM/SODIMM socket on the board.
! Hold two edges of the DIMM/SODIMM module carefully. AVOID touching its
connectors.
! Align the notch key on the module with the rib on the slot.
! Firmly press the modules into the slot, until it snaps into the mounting. Do not
force the DIMM/SODIMM module in with extra force as the DIMM/SODIMM
module only fits in one direction and this may damage the mounting.
Warning! Make sure to unplug the power supply before adding or removing
DIMMs or other system components. Failure to do so may cause severe
damage to both the board and the components.
