Advantech ARK-6310 User Manual

21 ARK-6130 User Manual
Chapter 2 System Setup and Maintenance

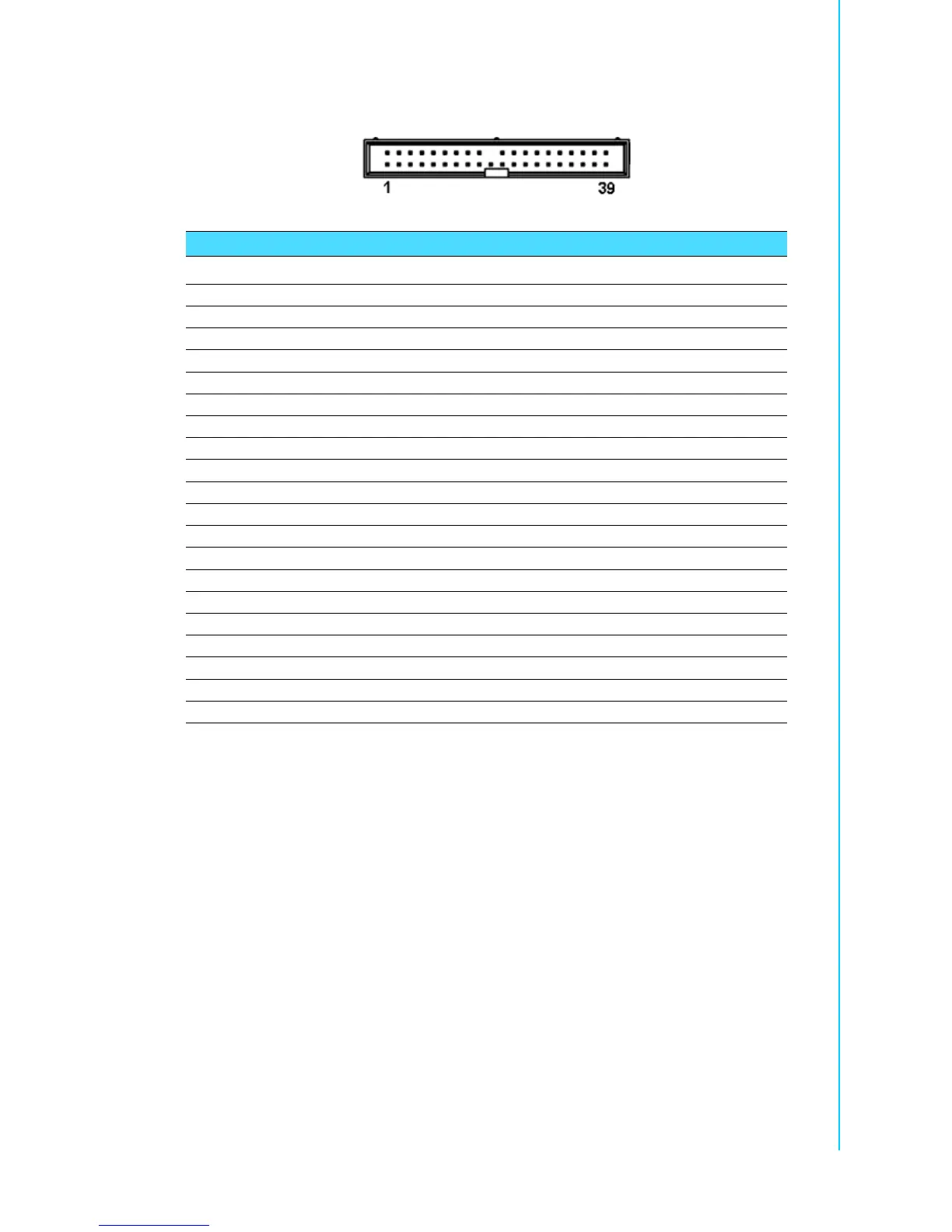

2.7.5 Primary IDE Connector (IDE_1)
Table 2.5: Primary IDE Connector (IDE_1)
Signal PIN PIN Signal
RESET# 1 2 GND
PDD7 3 4 PDD8
PDD6 5 6 PDD9
PDD5 7 8 PDD10
PDD4 9 10 PDD11
PDD3 11 12 PDD12
PDD2 13 14 PDD13
PDD1 15 16 PDD14
PDD0 17 18 PDD15
GND 19 20 NC
PDREQ 21 22 GND
PDIOW# 23 24 GND
PDIOR# 25 26 GND
PIORDY 27 28 GND
PDDACK# 29 30 GND
IRQ14 31 32 NC
PDA1 33 34 PATADET
PDA0 35 36 PDA2
PDCS1# 37 38 PDCS3#
IDEACTP# 39 40 GND
