2.7.9 Front Panel Connector (JFP1 on ARK-6310-3M01E/02E; FPIO1
on ARK-6310-6M01E)
Signal Description - Front Panel Connector
System LED will be on as long as power supply is connected.
Table 2.8: Front Panel Connector (JFP1 on ARK-6310-3M01E/02E)
Signal PIN PIN Signal
RESET 1 2 SYS_LED+
GND 3 4 SYS_LED-
HDD_LED+ 5 6 PWR_LED+
HDD_LED- 7 8 PWR_LED-
VCCSB 9 10 SUS_LED+
PWR_BUT 11 12 SUS_LED-
SUS_BUT 13 14 SPK+
GND 15 16 SPK-
Table 2.9: Front Panel Connector (FPIO1 on ARK-6310-6M01E)
Signal PIN PIN Signal
HD_LED+ 1 2 PWR_LED+
HD_LED- 3 4 PWR_LED-
GND 5 6 PWR
Reset 7 8 GND
NC 9
Table 2.10: Signal Description - Front Panel Connector
Signals on ARK-6310-3M01E/02E Signal on ARK-6310-6M01E Description
1, 3 5, 7 Reset SW
2, 4 - System LED
5, 7 1, 3 HDD LED
6, 8 2, 4 Power-On LED
9, 11 6, 8 Power SW
10, 12 - Suspend LED
13, 15 - Suspend SW
SPK+, SPK- - Speaker

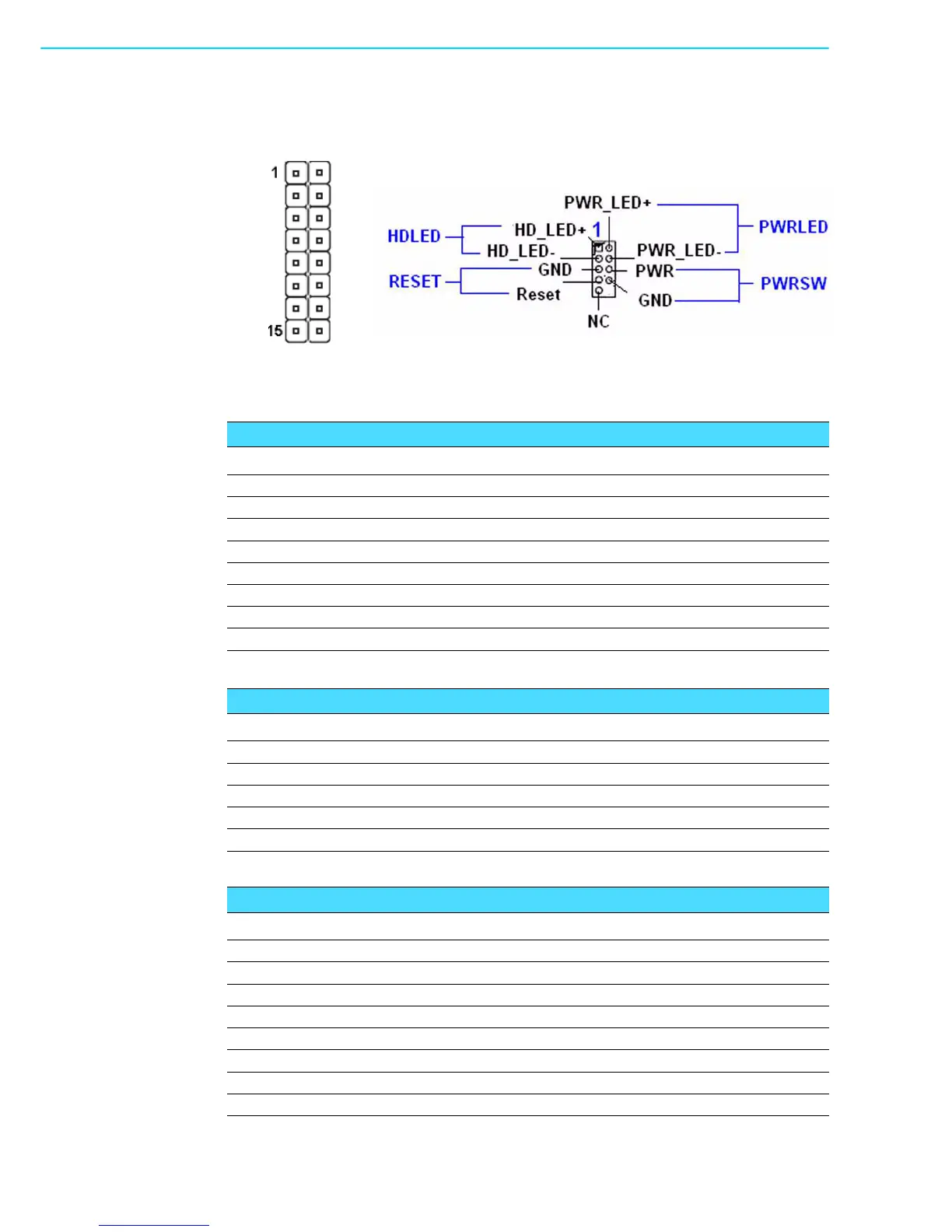

ARK-6310-3M01/02E
ARK-6310-6M01E
