ARK-6310 User Manual 16

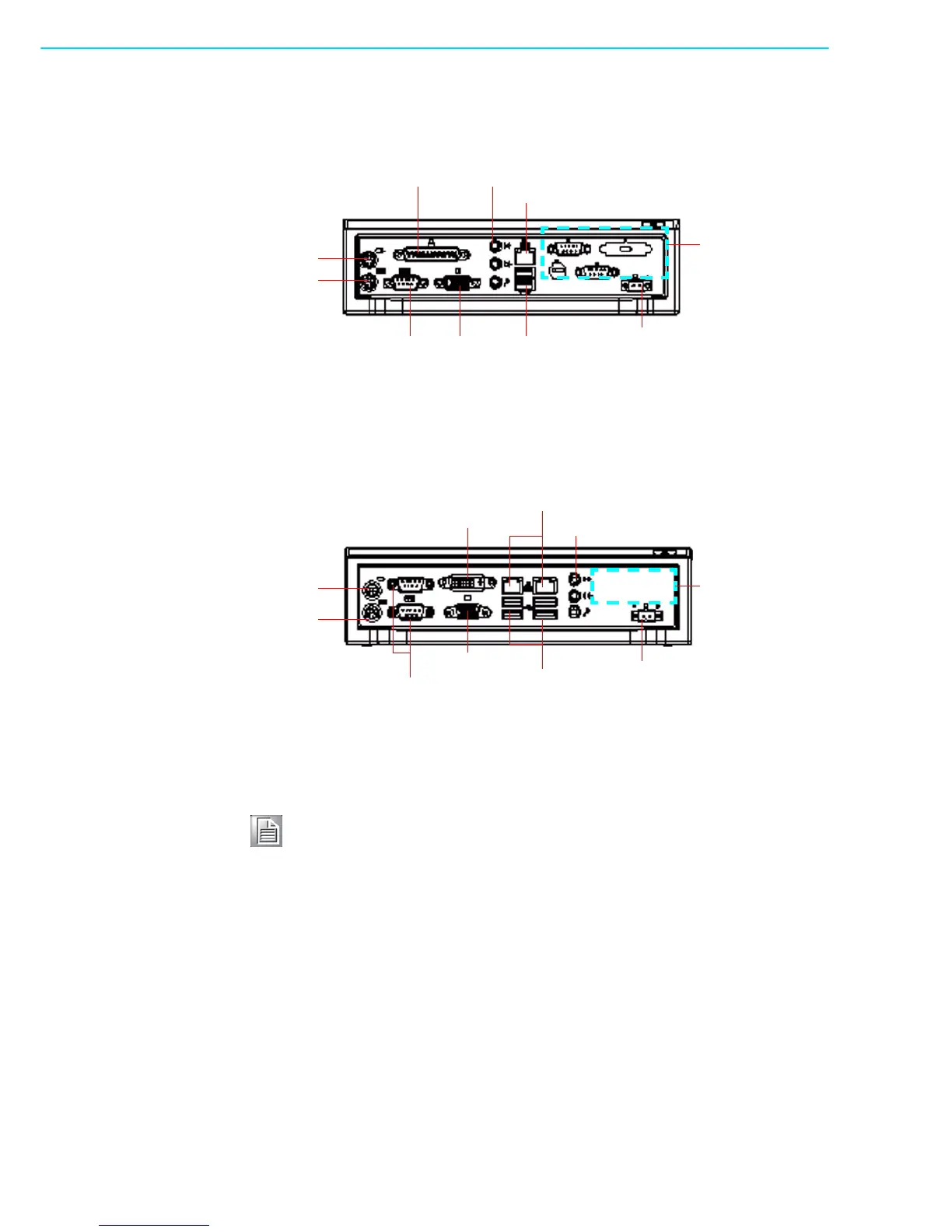

2.6.2 ARK-6310 Front Panel Connectors
Figure 2.9 ARK-6310-3M01E/02E Front Panel
Figure 2.10 ARK-6310-6M01E Front Panel
Note! Both ARK-6310-3M01/02E and ARK-6310-6M01E have reserved extra
pre-punched cutouts listed below. Customers may use them for the ded-
icated internal connectors on the enclosed motherboard.
ARK-6310-3M01E/02E: 2 x COM, 1 x DVI/LVDS, 1 x S/C-Video
ARK-6310-6M01E: 1 x COM, 4 x USB (Optional)
Parallel Audio
LAN
Mouse
Keyboard
COM1
VGA 2 x USB
DC power input
Pre-punched
cutouts:
2 x COM
1 x DVI(or LVDS)
1 x S/C-Video
Mouse
Keyboard
COM1
VGA
4 x USB
Audio
DVI
LAN
DC power input
Pre-punched
cutouts:
1 x COM
4 x USB
(Optional)
