E
G
H
D
Minimum Maximum
D2.0”(50.8mm) 8.5”(216.0mm)
E2.0”(50.8mm) 40.0”(1016.0mm)
H1.0”(25.4mm) 8.5”(216.0mm)
G0.125”(3.0mm) 0.3”(8.0mm)
Reversesideoftagstock
Directionoftravelthroughprinter
asseenfrombelow
L801LabelPrinter
Using the Printer 25

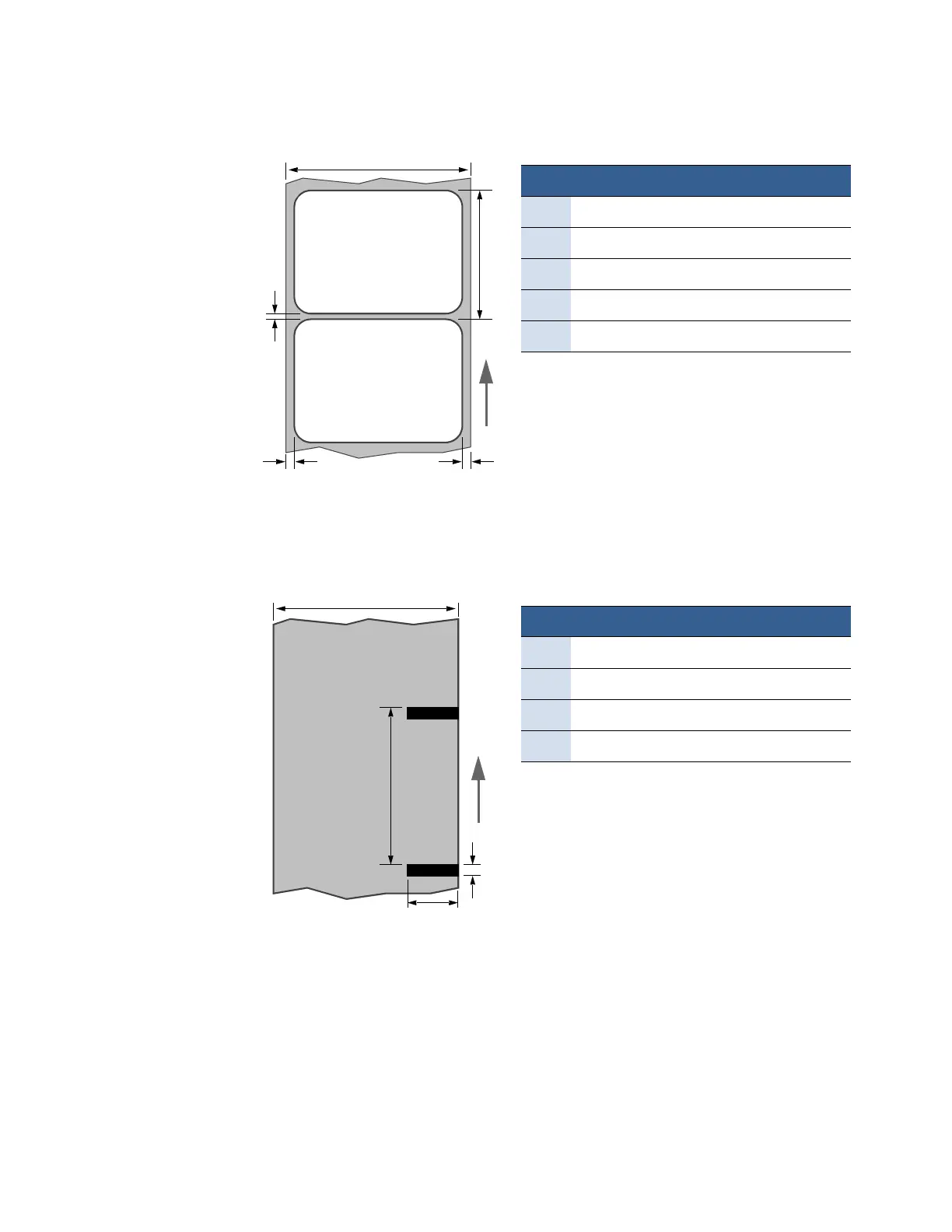

Figure2Gap(Transmissive)Media
Figure3BlackMark(Reflective)Media
A
BC
D
E
Minimum Maximum
A0.125”(3.0mm) 0.3”(8.0mm)
B 0.0 2.0”(50.8mm)
C0.0 N/A
D2.0”(50.8mm) 8.5”(216.0mm)
E2.0”(50.8mm) 40.0”(1.016m)
Directionoftravelthroughprinter
asseenfromabove
