1100 Series DAD and MWD User Manual 29
Installing the Detector 2

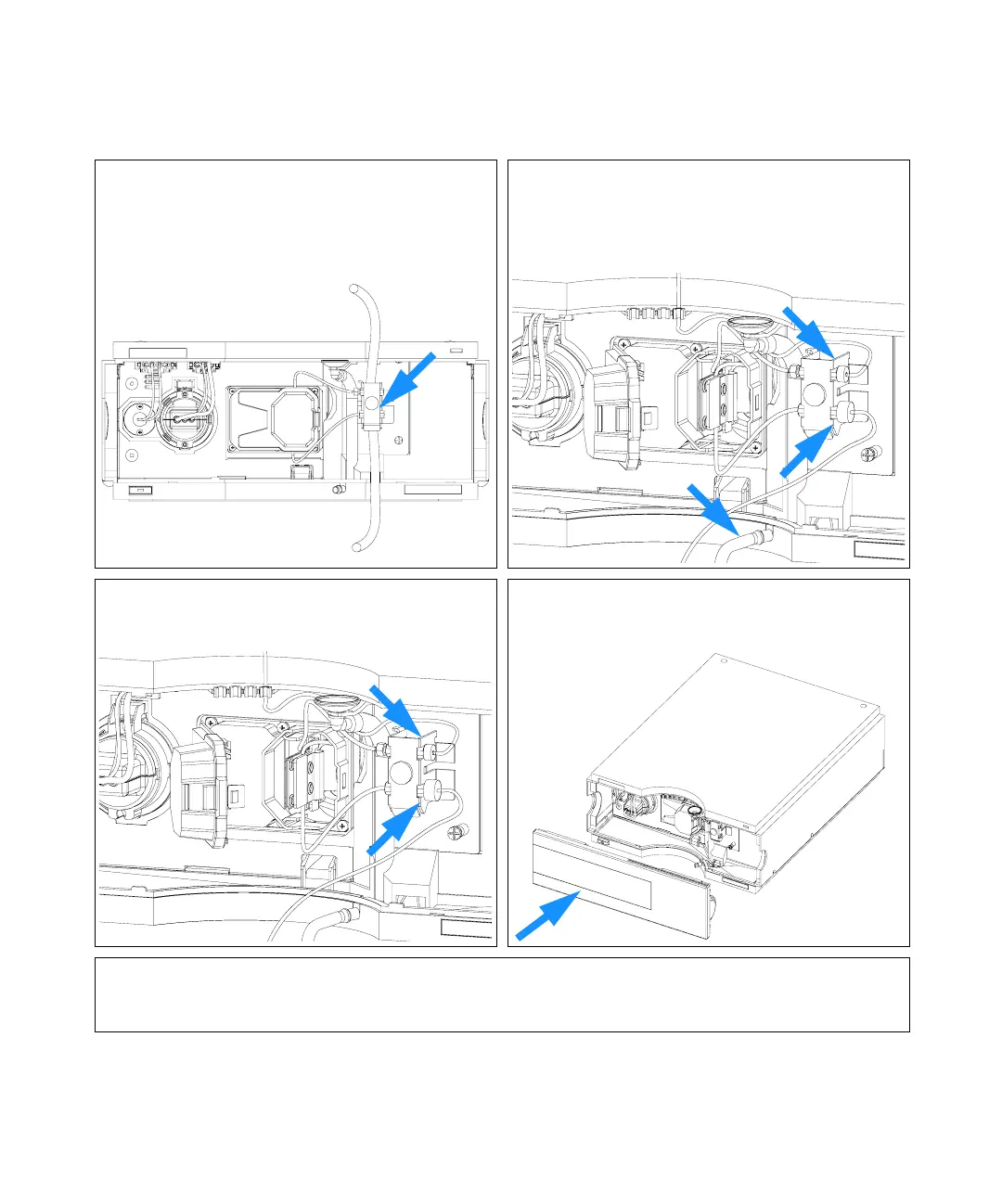

5 If another Agilent 1100 Series module is positioned on top
of the detector, route the tubing assembly waste from the
accessory kit behind the capillary holder and connect the
top end to the other module’s waste outlet.
6 Connect the capillary from the column to the capillary
holder (top). Connect the teflon waste tubing to the flow
cell outlet fitting (bottom) and the corrugated waste
tubing to the leak outlet.
7 Remove the flow cell and establish a flow and observe for
leaks.
8 Insert the flow cell, close the cover and replace the front
cover.
The installation of the detector is complete now.
