Agilent Technologies 1260 Infinity G1315D User Manual

184 Agilent 1260 Infinity DAD and MWD User Manual
9 Maintenance
Replacing Capillaries on a Standard Flow Cell
3

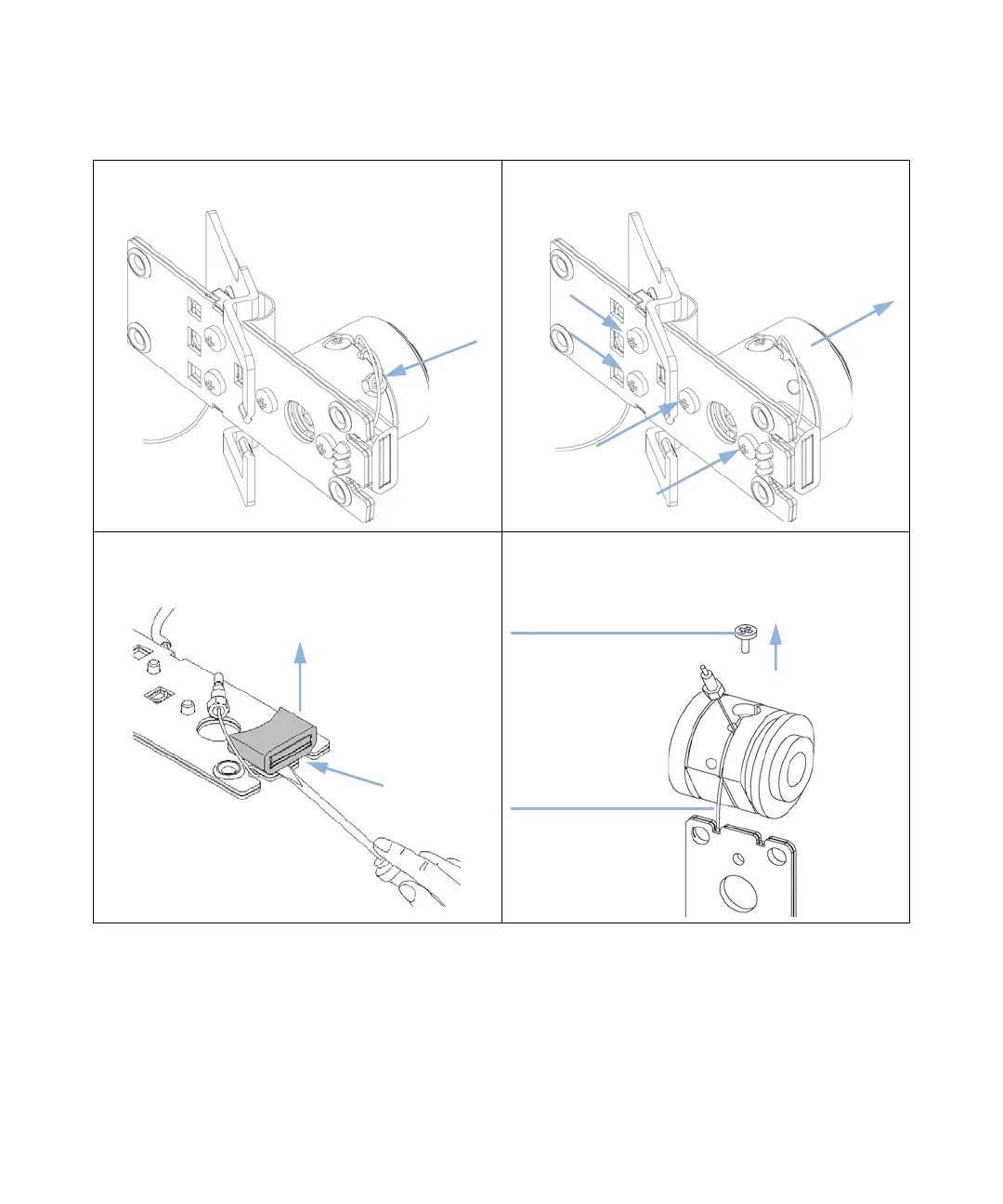

To replace the inlet capillary, use a 4-mm wrench for the
fitting.
4 Unscrew the cell body from the heat exchanger and the
heat exchanger from the clamp unit.
5 Use a small flat screw driver to carefully lift off the I.D.
tag. Shown is the default orientation. See Note at the
beginning of this section.
6 Unscrew the fixing screw and unwrap the inlet capillary
from the grove in the flow cell body.
6FUHZ
,QOHWFDSLOODU\
ZLWKKHDW
H[FKDQJHU
