430 Power/Electronics Replacement
Replacing the ALS Interface Board
24 of 26
Jun 2001
Mainframe
Agilent 6890 Gas Chromatograph Service Manual
3. Disconnect the 6890 Controller PCB Cable, part no. G2612-60510, from
the ALS Interface board at P5. See Figure 430-16 and Figure 430-17. If
you are replacing this cable, disconnect it from the main board at J8.

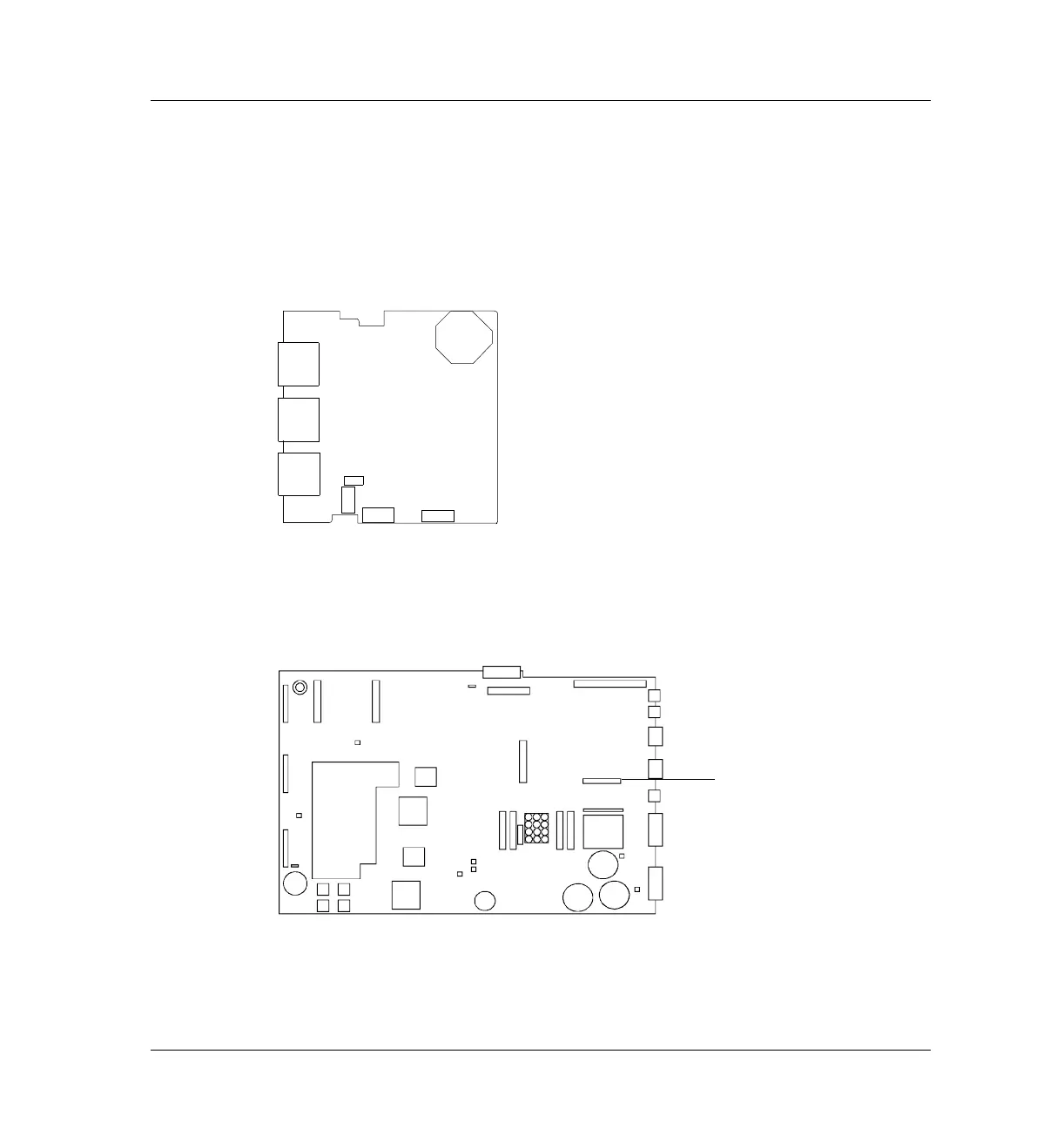

Figure 430-16 ALS Interface board connectors
Figure 430-17 GC Main board
Battery
P2
P4
P3
F1
J5
P5 P1
J8
