15 of 36
Jun 2001
Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Inlets 1310
Purged/packed inlet EPC pneumatic module

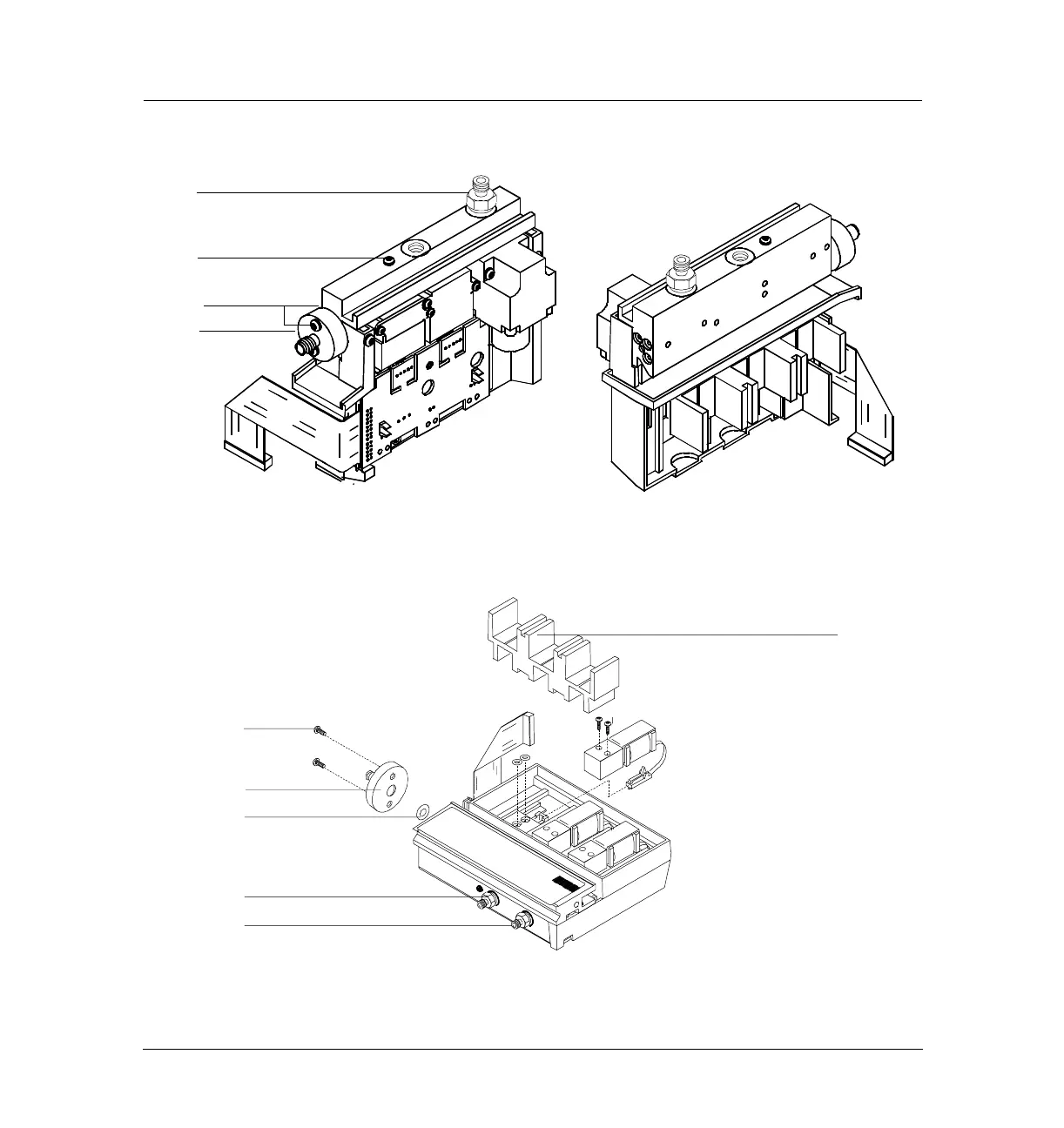

Figure 1310-6 Purged/Packed inlet EPC pneumatic module
Figure 1310-7 Serviceable parts drawing for any EPC pneumatic module
1
3
2
(see drawing below)
Front view Rear view
5
Aluminum bracket
Screws
Supply fitting
O-ring
Inlet split vent fitting
Septum purge fitting
Caution
Aluminum bracket removed for
clarity, DO NOT completely
remove the bracket during
valve replacement.
