Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Valves 1350
Valco W-series minivalve

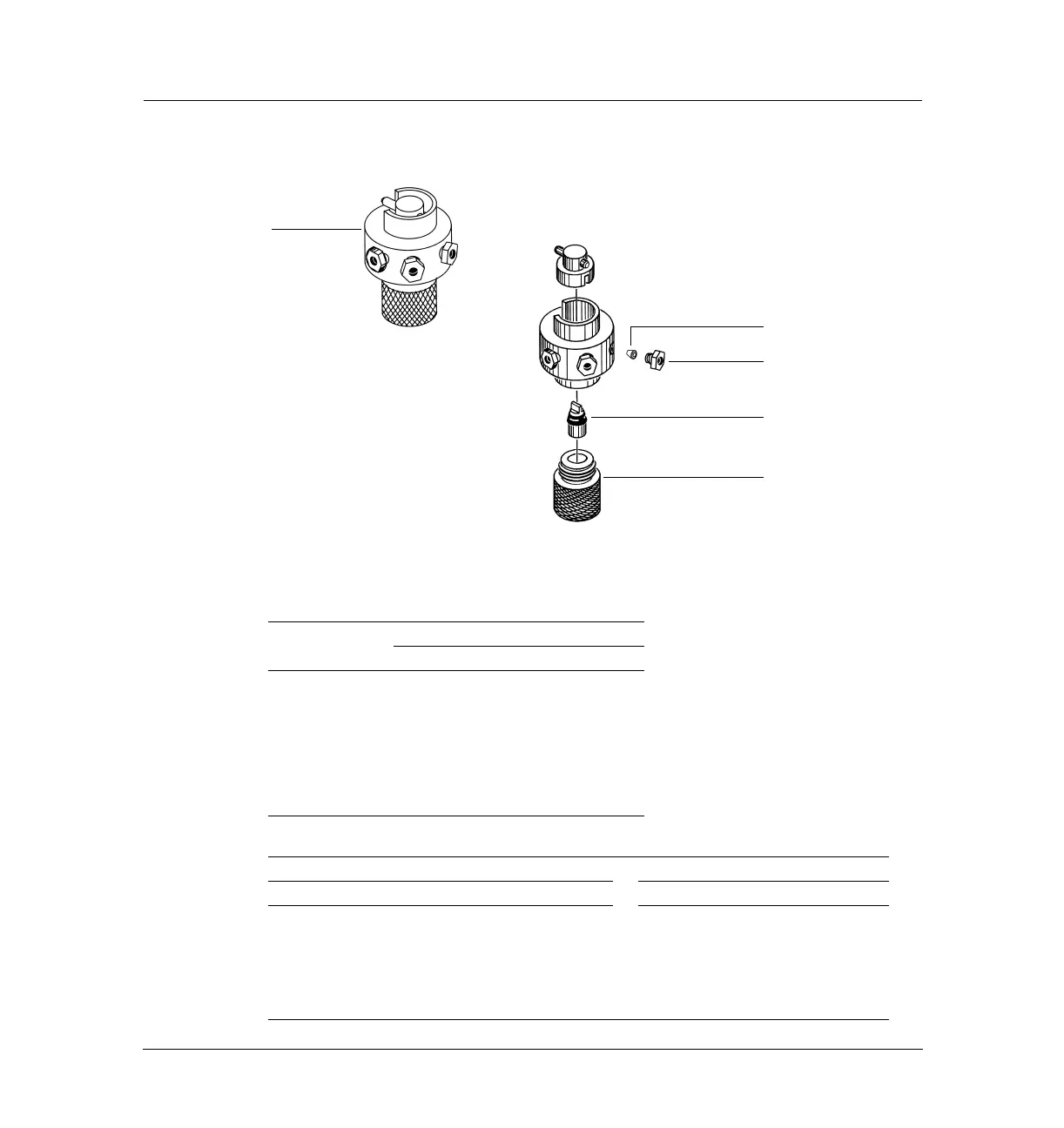

Figure 1350-5 Valco W-series minivalve
Gas sample valve loops
Loop volume Part no.
mL Stainless steel Nickel
0.25 0101-0303 0101-0956
0.5 0101-0282 0101-0957
1.0 0101-0299 0101-0954
2.0 0101-0300 0101-0955
5.0 0101-0301 -
10.0 0101-0302 -
Capillary tubing (0.031-inch x 0.063-inch od)
Stainless steel Nickel
Length, mm Part no. Length, mm Part no.
318 18900-20260 525 18900-21110
559 18900-20300 1061 18900-21120
3658 5021-7199 2132 18900-21130
See the Agilent chemical analysis consumables
and accessories catalog for more lengths
4274 18900-21140
Preload
assembly
Valve
Ferrule
Nut
Rotors
