When two inlets use the same carrier gas, we recommend using
a Tee fitting that includes shutoff valves for performing leak
tests. Add shutoff valves to the supplied pre-plumbed Tees or
assemble Tees as shown below.

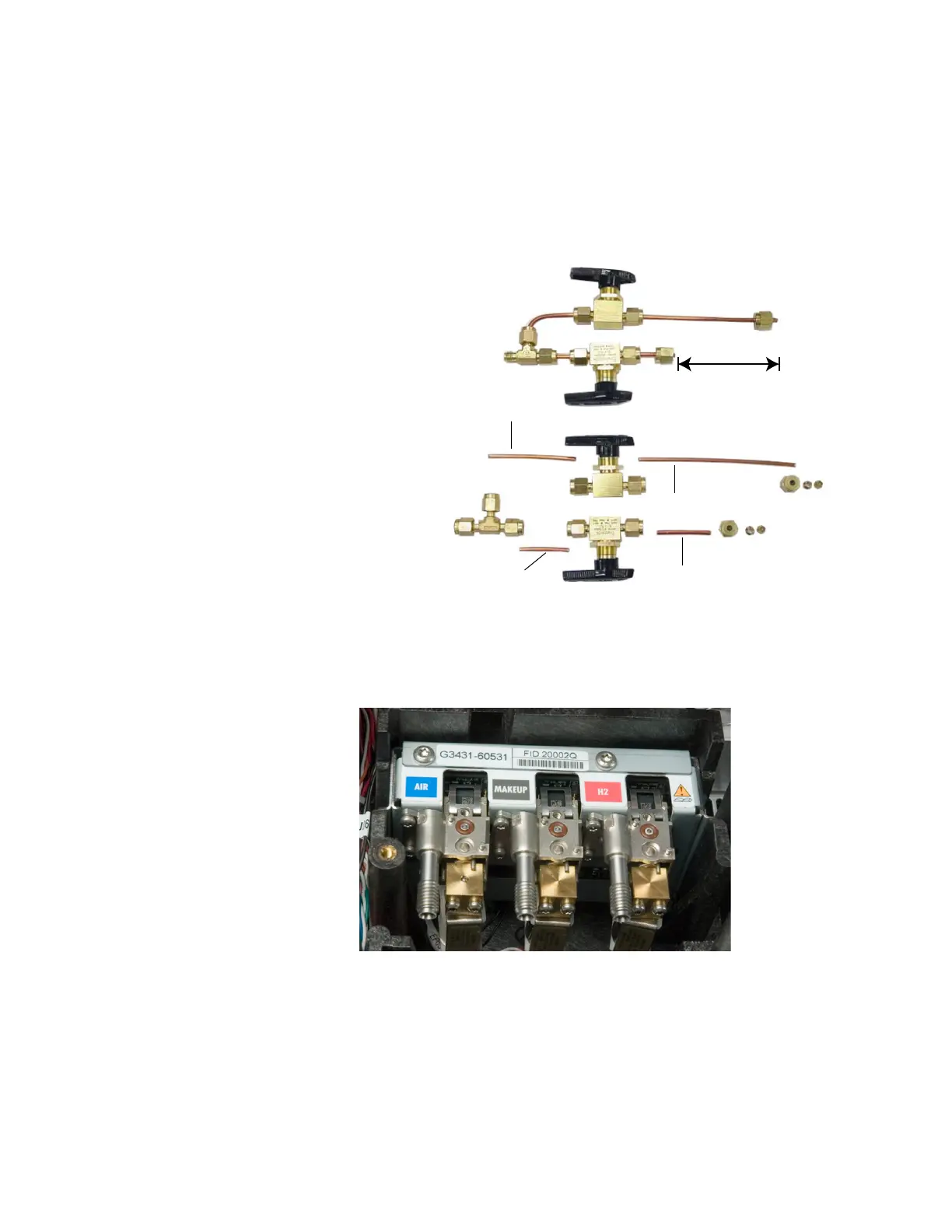

Figure 9 Tee for inlet flow module
Detector flow module
Figure 10 Detector flow module
75 mm = ~ 3 inches
107 mm = ~ 4 1/4 inches
33 mm = ~ 1 5/16 inches
33 mm = ~ 1 5/16 inches
60 mm = ~ 2 1/4 inches
