84 Agilent 7890B Installation
B Cabling Diagrams and Remote Start/Stop

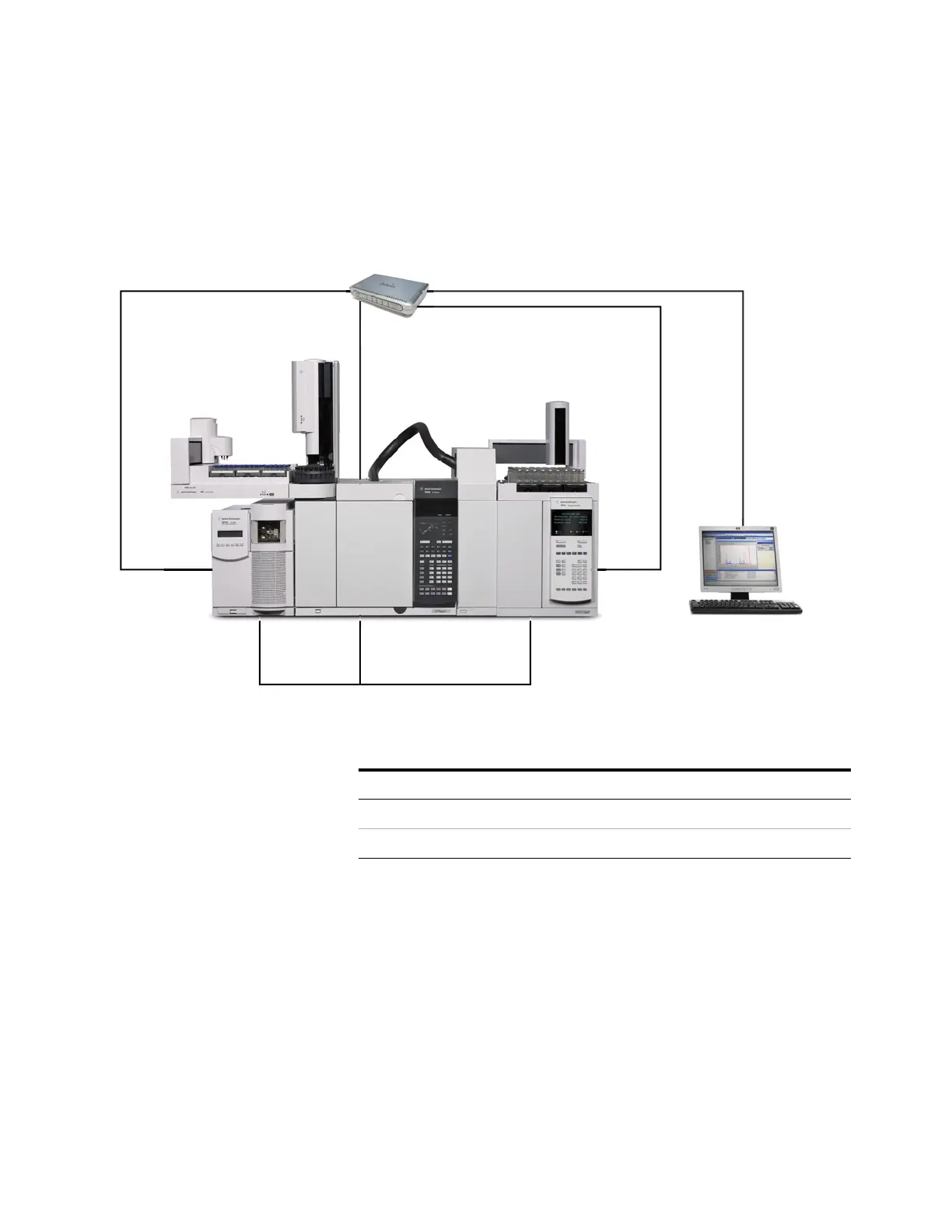

Example: Using a Y-Cable in a setup (GC/MSD/Data System/Headspace
Sampler)
LAN switch or hub
1. LAN cable 8121-0940
GC/ALS ComputerHS
2. APG Remote Y-Cable,
G1530-61200
1. LAN cable
8121-0940
1. LAN cable
8121-0940
1. LAN cable
8121-0940
MSD
Number Part number and description
1 G1530-61200, 2-m Y-cable, remote start/stop
2 8121-0940, Cable, LAN, 25 foot
