86 Agilent 7890B Installation
B Cabling Diagrams and Remote Start/Stop
Cable Diagrams

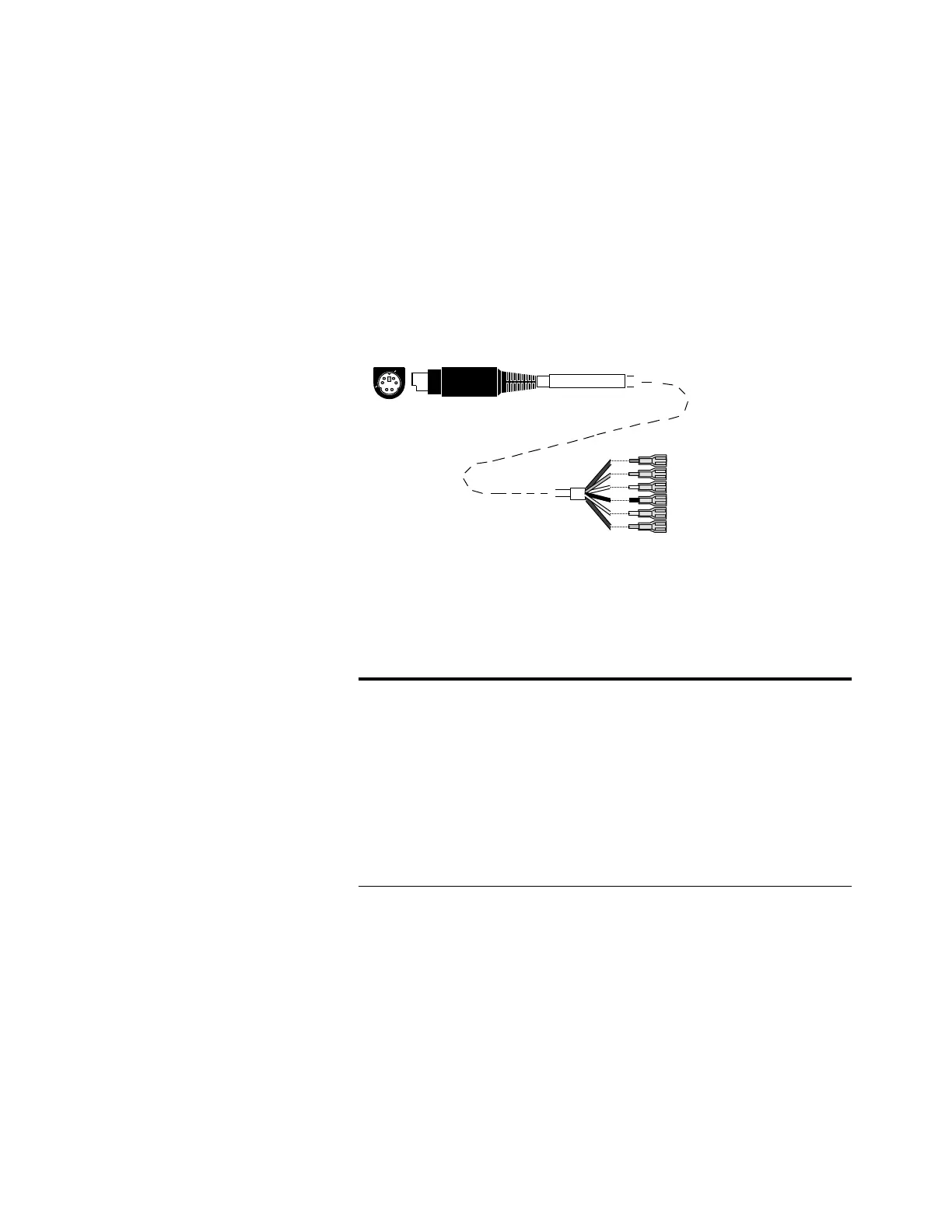

Analog signal cable, general use, G1530-60560
Connects GC signal outputs to non-Agilent products. Also used
for the Analog Input Board (AIB).
The pin assignments for the general use analog out cable are
listed in Table 10.
Tabl e 1 0 Analog cable, general use, output connections
Connector 1 Connector 2, wire color Signal
1 Brown or violet Not used
2 White 0 to 1 V, 0 to 10 V (–)
3 Red Not used
4 Black 1 V (+)
6 Blue 10 V (+)
Shell Orange Ground
G1530-60560
1
2
3
4
5
6
Connector 1
Connector 2
