Cabling Diagrams and Remote Start/Stop B
Agilent 7890B Installation 89
Agilent APG remote start/stop cable, G1530-60930
Synchronizes the GC with another Agilent instrument.
Additional cables may be used to add more instruments (up to
10 total).

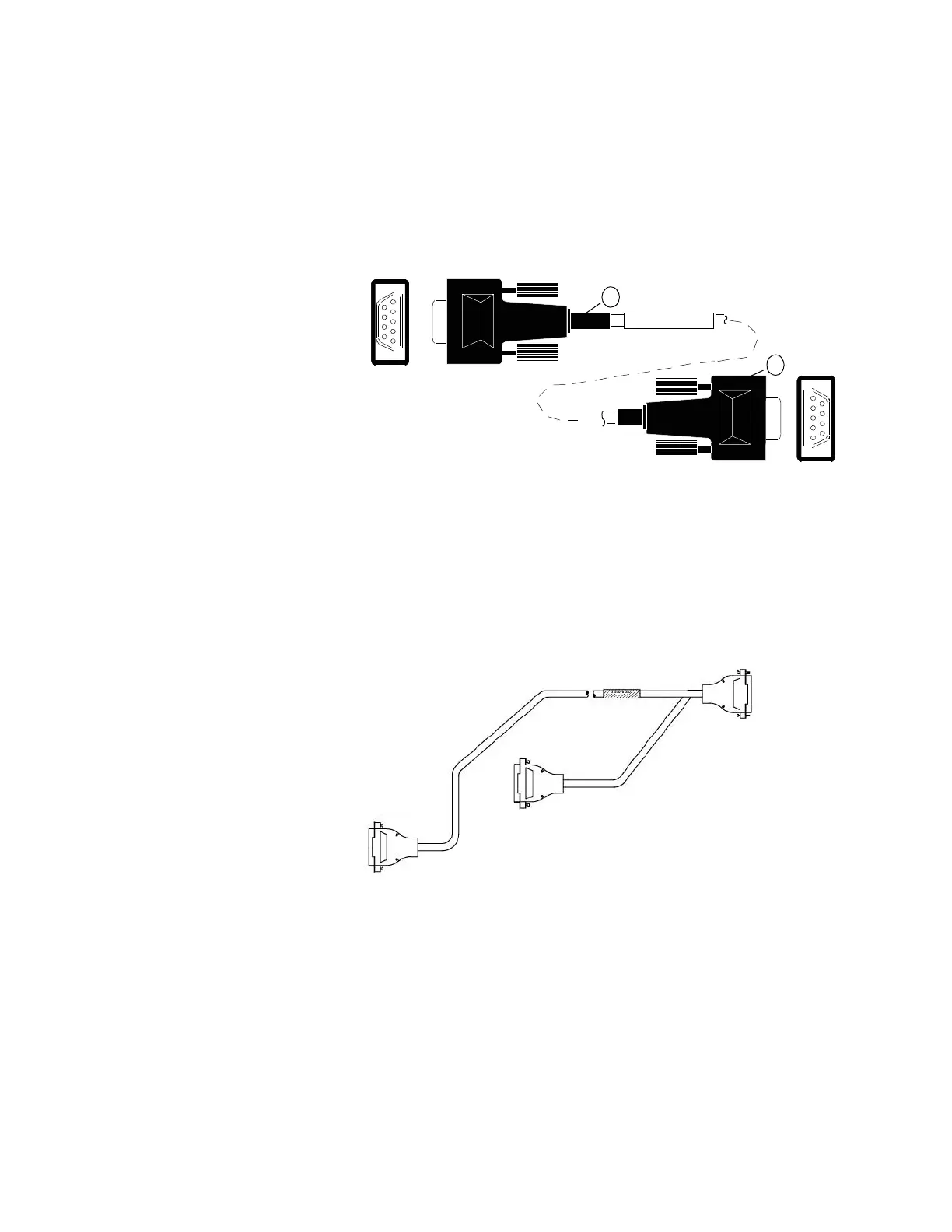

Figure 26 Remote start/stop cable, GC to Agilent instrument
Agilent remote start/stop Y-cable, G1530-61200
Synchronizes the GC with another 2 Agilent instruments.
Figure 27 Remote start/stop cable, GC to Agilent instrument
6
9
1
5
5
1
9
6
G1530-60930
9
6
5
1
1
2
