Installing the GC 1
Agilent 7890B Installation 47
BCD input connector
This connector provides two control relays and a BCD input for
a stream selection valve or a BCD generating device.
BCR/RA connector
This connector is reserved for the optional G3494B RS-232
Barcode Reader. Refer to the GC Operation Manual.
LAN connector
Standard Local Area Network (LAN) connector, for
communication with data systems and other devices via TCP/IP.

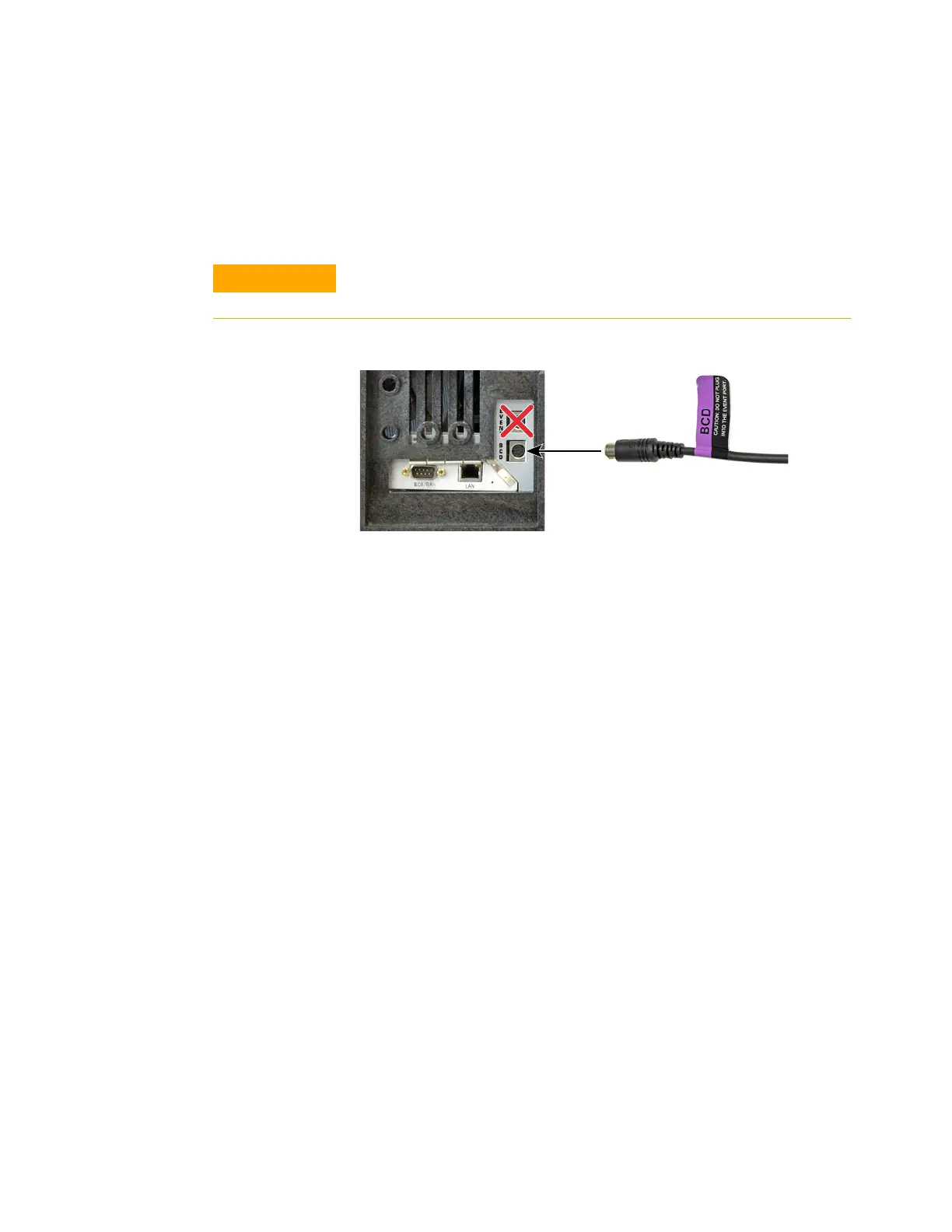

This connector is similar to the EVENT connector. Plugging a
non-BCD cable into the BCD connector can damage the GC.
