1b-40
Operation Reference
Function

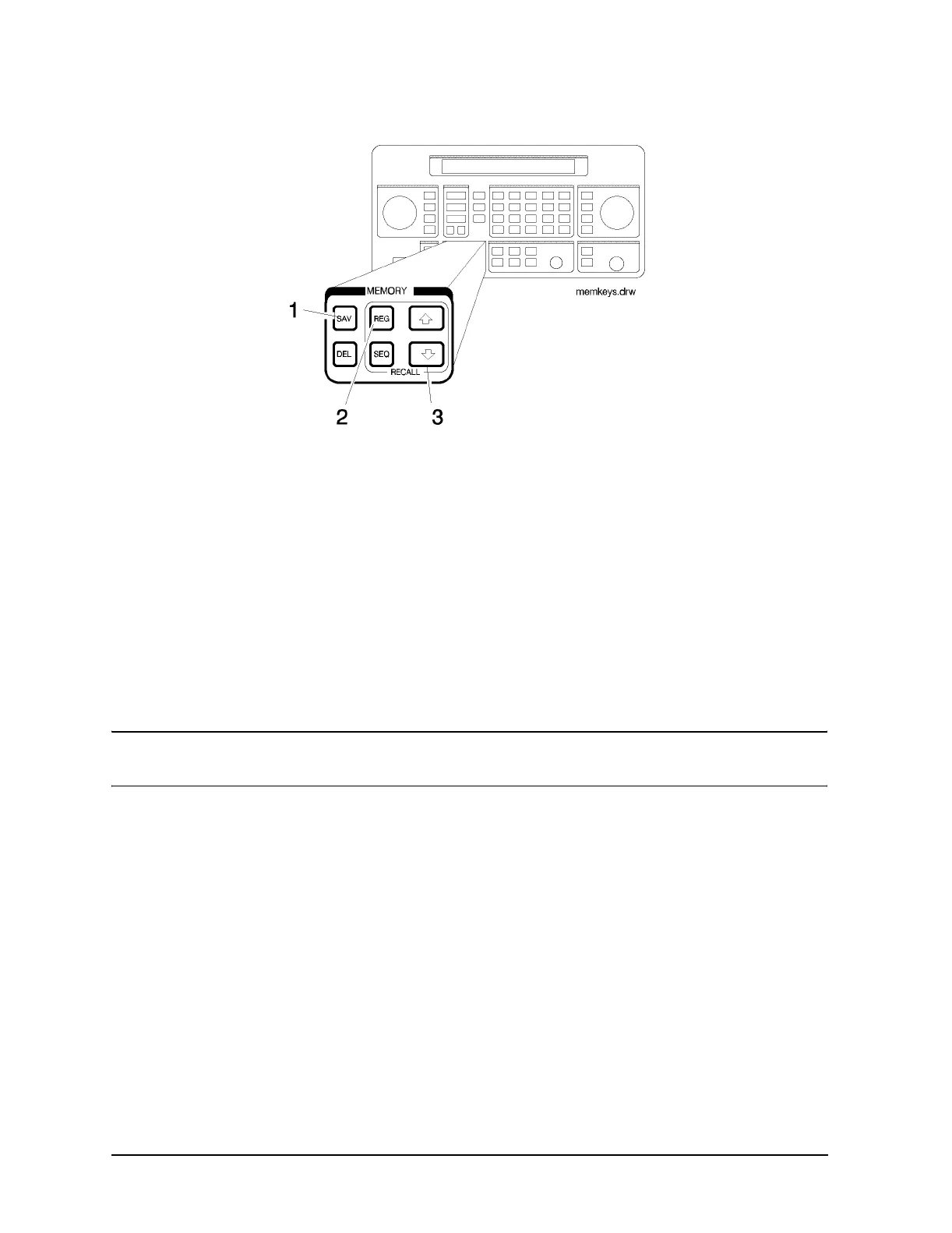

1. SAV
Press
SAV and a register number (00 through 99) to save the current operating settings in
a memory register. All front-panel settings except the knob digit positions and the GPIB
address will be saved in the register.
When you press the
SAV key, a message is displayed to tell you the total number of
registers still available.
When you save a register, it is assigned to the currently selected sequence. (The number of
the selected sequence appears in the second line of the FREQUENCY display.) You can
only recall a register when the sequence it is assigned to is selected.
(Refer to "4. SEQ" for further information about register sequences.)
NOTE The instrument does not have a copy function for saving registers from one
sequence to another.
2. REG
Press
REG and a register number (00 through 99) to recall the operating settings saved in
that register.
The number of the last register recalled appears in the display along with the number of
the currently selected sequence.
You can only recall registers from the currently selected sequence.
To recall a register from another sequence, you must first select the sequence using the
SEQ key.
If you recall a register remotely in 8656/57-compatible language and nothing has been
saved in that register, the instrument preset settings will be restored.
