2- 23
Making Mixer Measurements
High Dynamic Range Swept RF/IF Conversion Loss
Using the Mixer Measurement Diagram
While the analyzer is still set to the IF frequency range, press:
.
Note the RF frequency values on the diagram.
Press .
Perform a Power Meter Calibration Over the RF Range
1. Connect the equipment as shown in Figure 2-18.

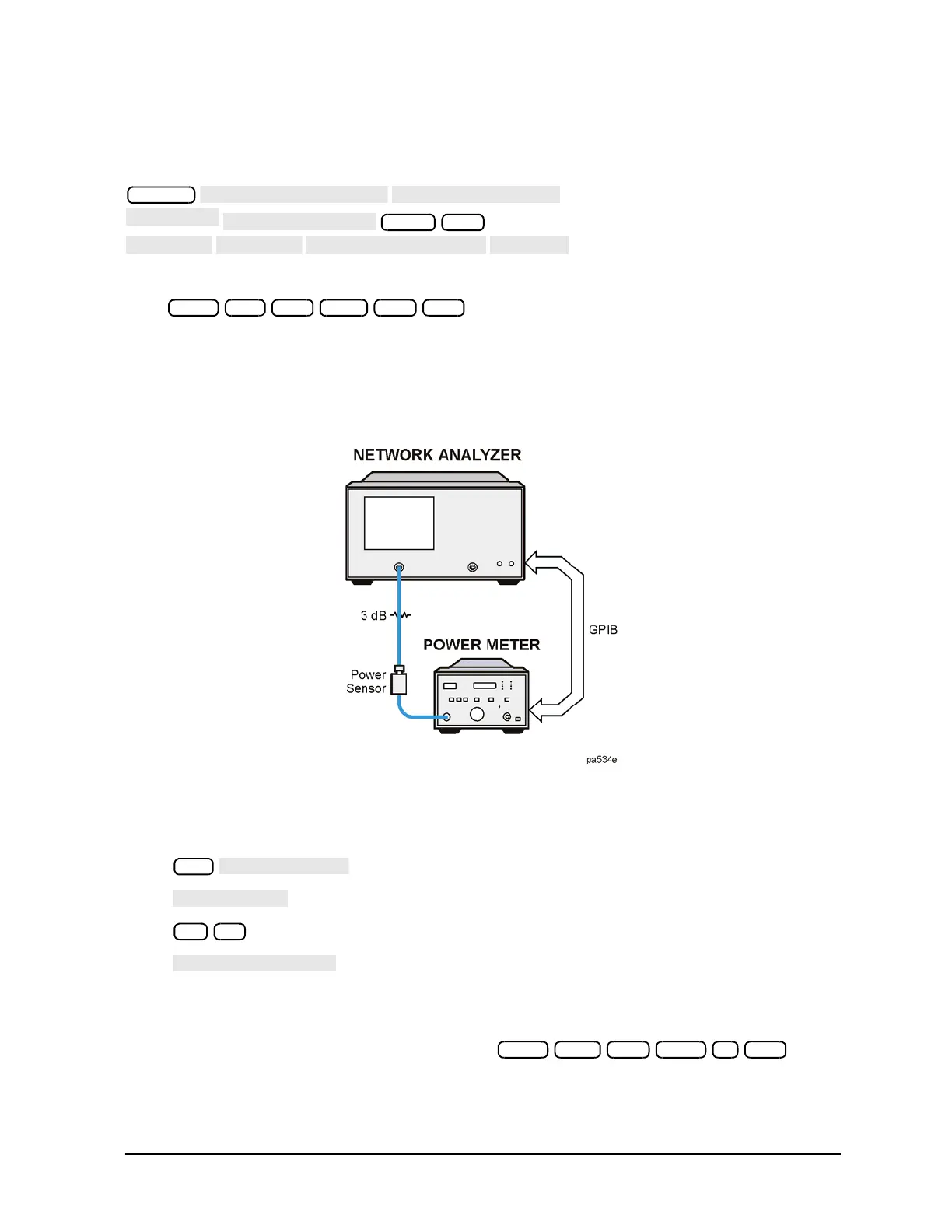

Figure 2-18 Connections for Power Meter Calibration
2. Use the previous power meter settings.
3. Perform a one sweep power meter calibration over the RF frequency range at 5 dBm:
.
Perform the High Dynamic Range Measurement
1. Return the analyzer to the IF frequency range. Press .
2. Make the connections shown in Figure 2-19.
3. Set the LO source to the desired CW frequency of 1500 MHz and power level to 13 dBm.
To Next Page
