1- 53
Making Measurements
Measuring Amplifiers
Measuring Harmonics (Option 002)
The analyzer has the capability of measuring swept second and third harmonics as a function of frequency
in a real-time manner. By using trace math, the second/third harmonic response can be displayed directly in
dBc (dB below the fundamental or carrier). The ability to display harmonic level versus frequency or RF
power allows “real-time” tuning of harmonic distortion.

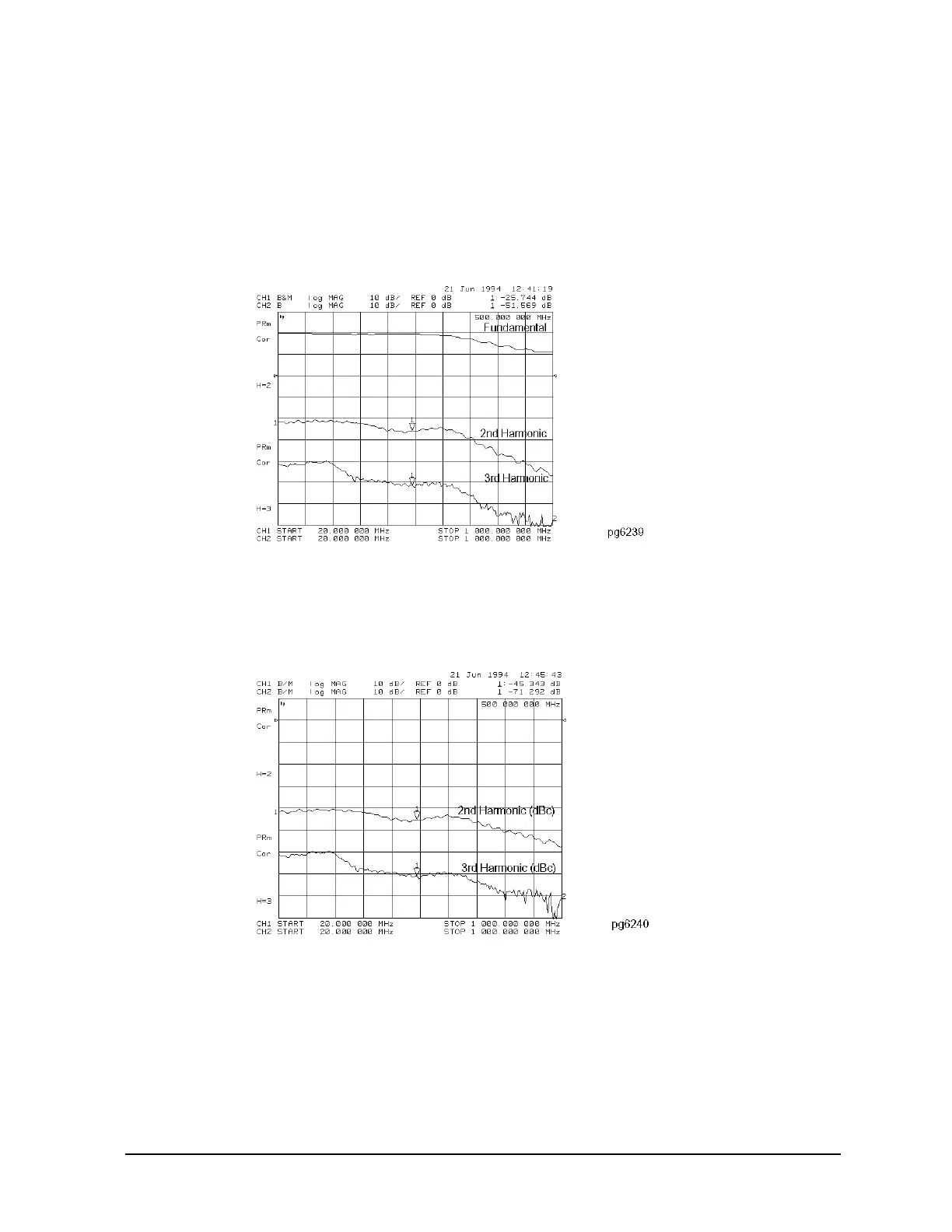

Figure 1-43 Absolute Fundamental, 2nd, and 3rd Harmonic Output Levels
Figure 1-44 2nd and 3rd Harmonic Distortion in dBc
