1-12
Making Measurements
Using Display Functions
Viewing Both Primary Measurement Channels
In some cases, you may want to view more than one measured parameter at a time. Simultaneous gain and
phase measurements, for example, are useful in evaluating stability in negative feedback amplifiers. You can
easily make such measurements using the dual channel display.
1. To see channels 1 and 2 in the same grid, press:
, set to ON, and to
1X.

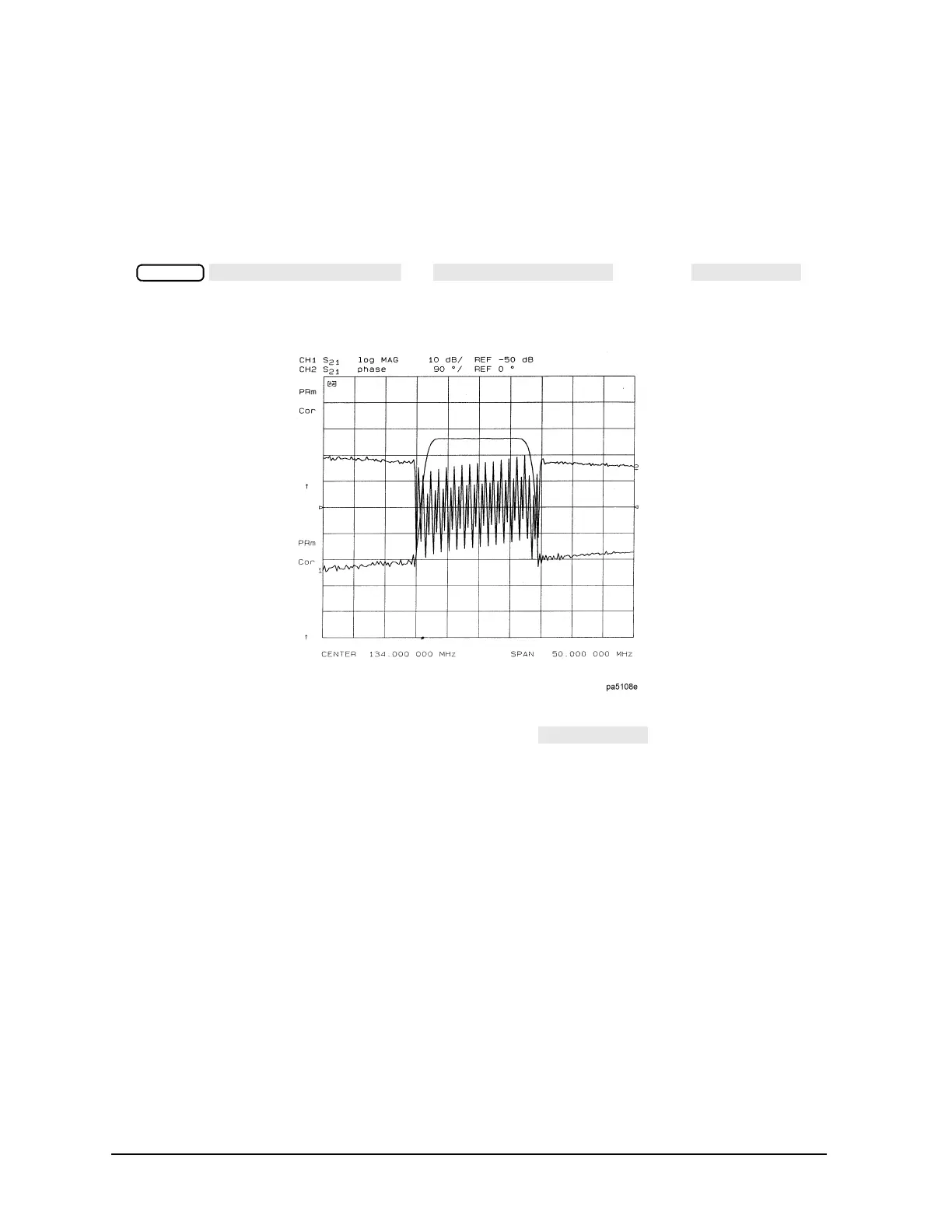

Figure 1-7 Example of Viewing Channel 1 and 2 Simultaneously
2. To view the measurements on separate graticules, press: Set to 2X. The analyzer shows
channel 1 on the upper half of the display and channel 2 on the lower half of the display. The analyzer
defaults to measuring S
11
on channel 1 and S
21
on channel 2.
