Making Measurements
Using Markers

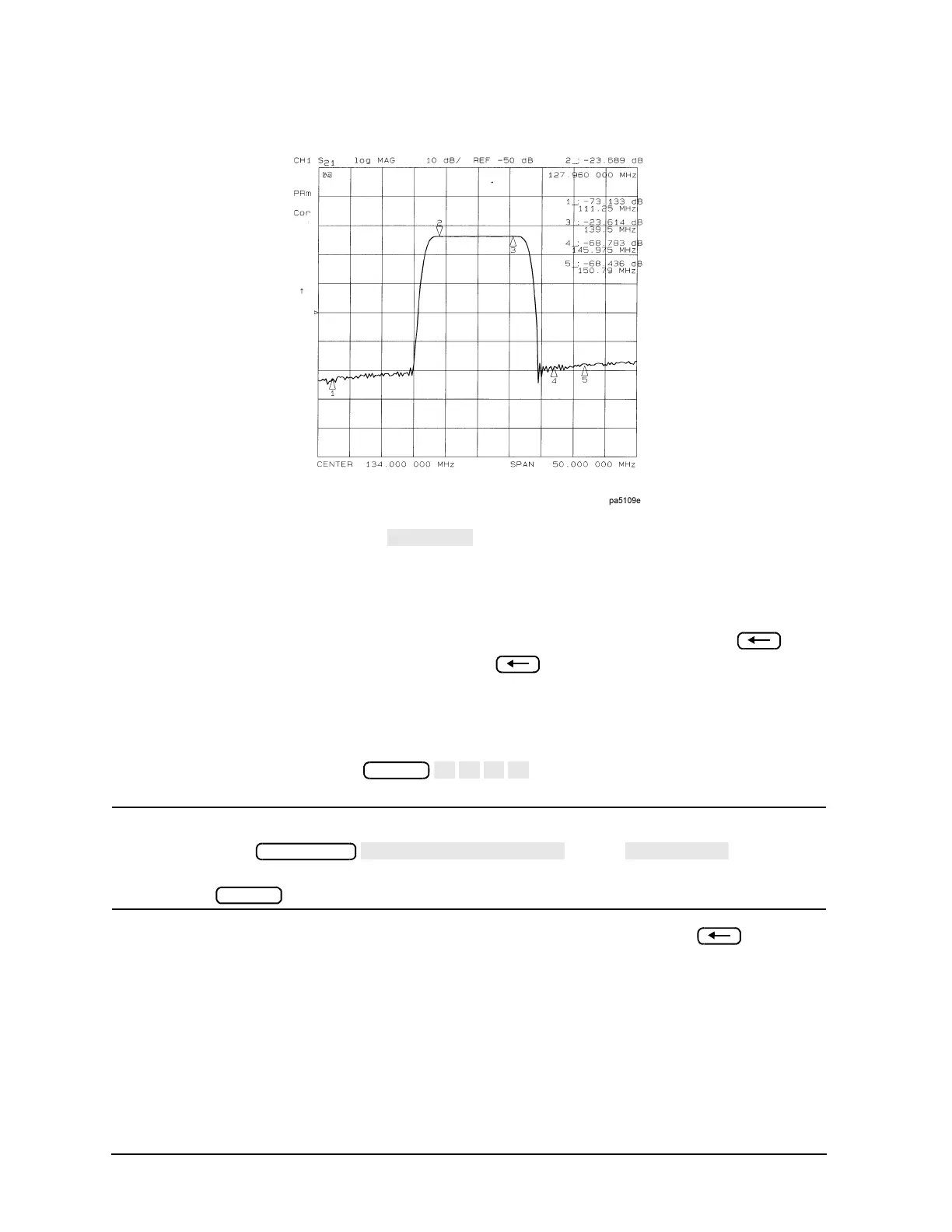

Figure 1-13 Active and Inactive Markers Example
• To switch off all of the markers, press .
To Move Marker Information Off the Grids
If marker information obscures the display traces, you can turn off the softkey menu and move the marker
information off the display traces and into the softkey menu area. Pressing the backspace key
performs this function. This is a toggle function. Pressing alternately hides and restores the current
softkey menu. The softkey menu is also restored when you press any softkey or a hardkey which leads to a
menu.
1. Set up a four-graticule display as described in "Viewing Four Measurement Channels" on page 1-14.
2. Activate four markers by pressing .
NOTE Observe that the markers appear on all of the grids. To activate markers on individual grids,
press
, and set to
UNCOUPLED. Then, activate the channel in which you wish to have markers, press
, then select the markers for that channel.
3. Turn off the softkey menu and move the marker information off the grids by pressing .
The display will be similar to Figure 1-14.
