Printing, Plotting, and Saving Measurement Results
Plotting Multiple Measurements Per Page Using a Pen Plotter
Plotting Multiple Measurements Per Page Using a Pen Plotter
1. Configure and define the plot, as explained in "Configuring a Plot Function" on page 4-9 and "Defining a
Plot Function" on page 4-13.
2. Press .
3. Choose the quadrant where you want your displayed measurement to appear on the hardcopy. The
following quadrants are available:
❏
❏
❏
❏
The selected quadrant will appear in the brackets under .

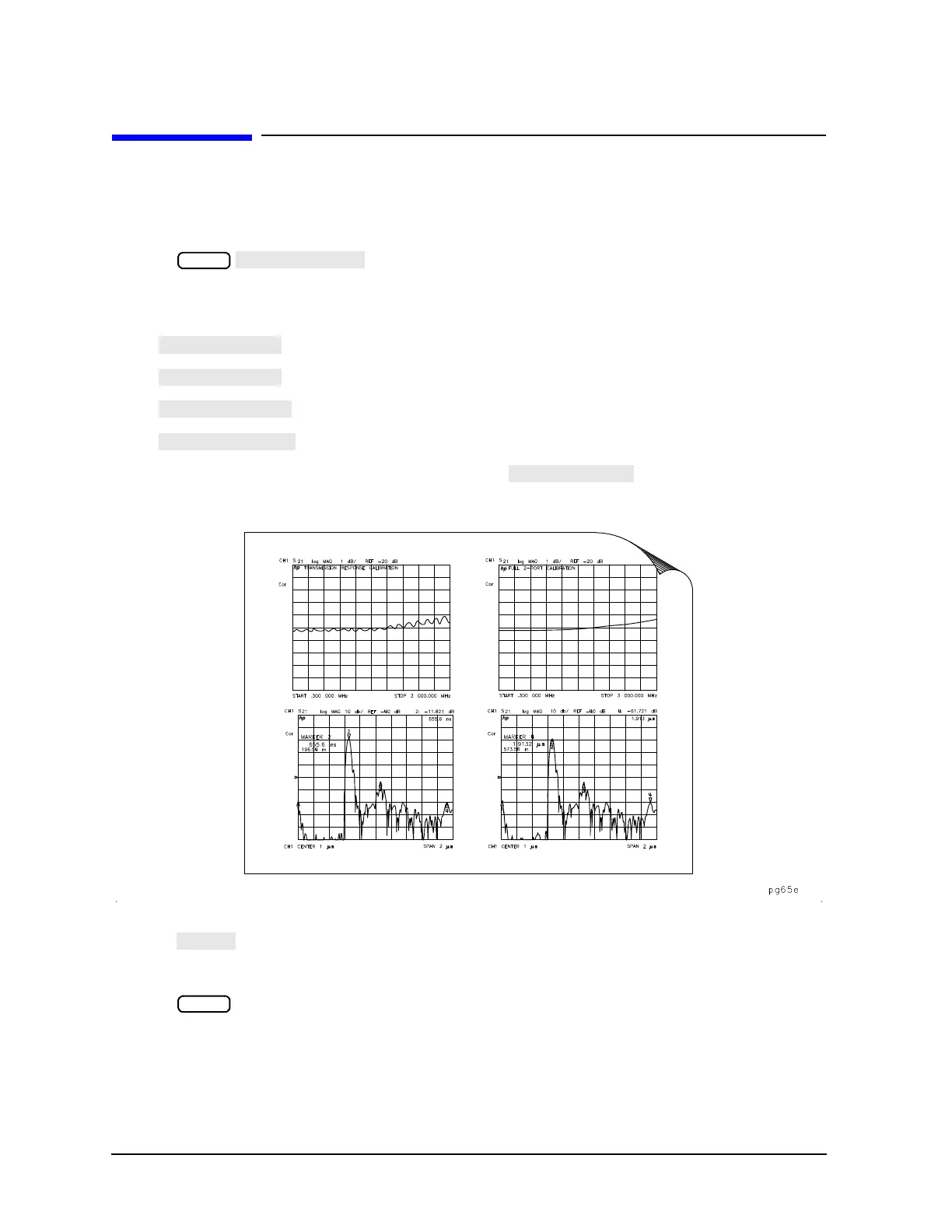

Figure 4-8 Plot Quadrants
4. Press .
5. Make the next measurement that you want to see on your hardcopy.
6. Press and choose another quadrant where you want to place the displayed measurement.
7. Repeat the previous three steps until you have captured the results of up to four measurements.
To Next Page
