2- 41
Making Mixer Measurements
Conversion Compression Using the Frequency Offset Mode

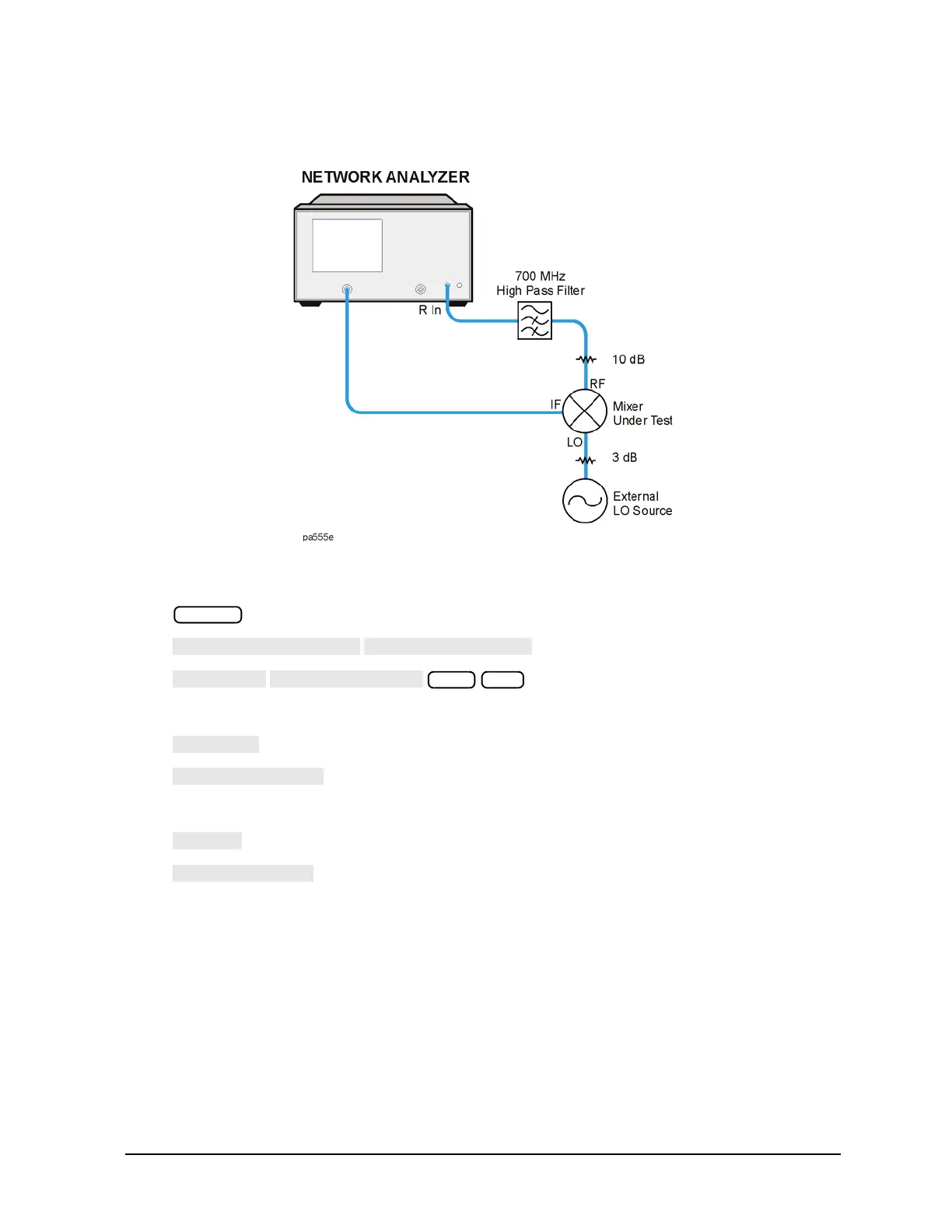

Figure 2-29 Connections for the Second Portion of Conversion Compression Measurement
9. To set the frequency offset mode LO frequency, press:
10. To select the converter type, press:
11. To select a low-side LO measurement configuration, press:
In this low-side LO, up converter measurement, the analyzer source frequency is offset lower than the
receiver frequency. The analyzer source frequency can be determined from the following equation:
receiver frequency (800 MHz) LO frequency (600 MHz) = 200 MHz
