366 Chapter 11
Assembly Replacement Procedures
A6 SCSI Board
A6 SCSI Board
CAUTION Use ESD precautions when performing this replacement procedure.
Removal
1. Refer to Figure 11-38. At the rear of the instrument, use a T-10
driver to remove the 6 screws (1) securing the small panel to the
frame.
2. The SCSI board can be removed through the rear panel by pulling up
on the board to disengage it from the CPU board.

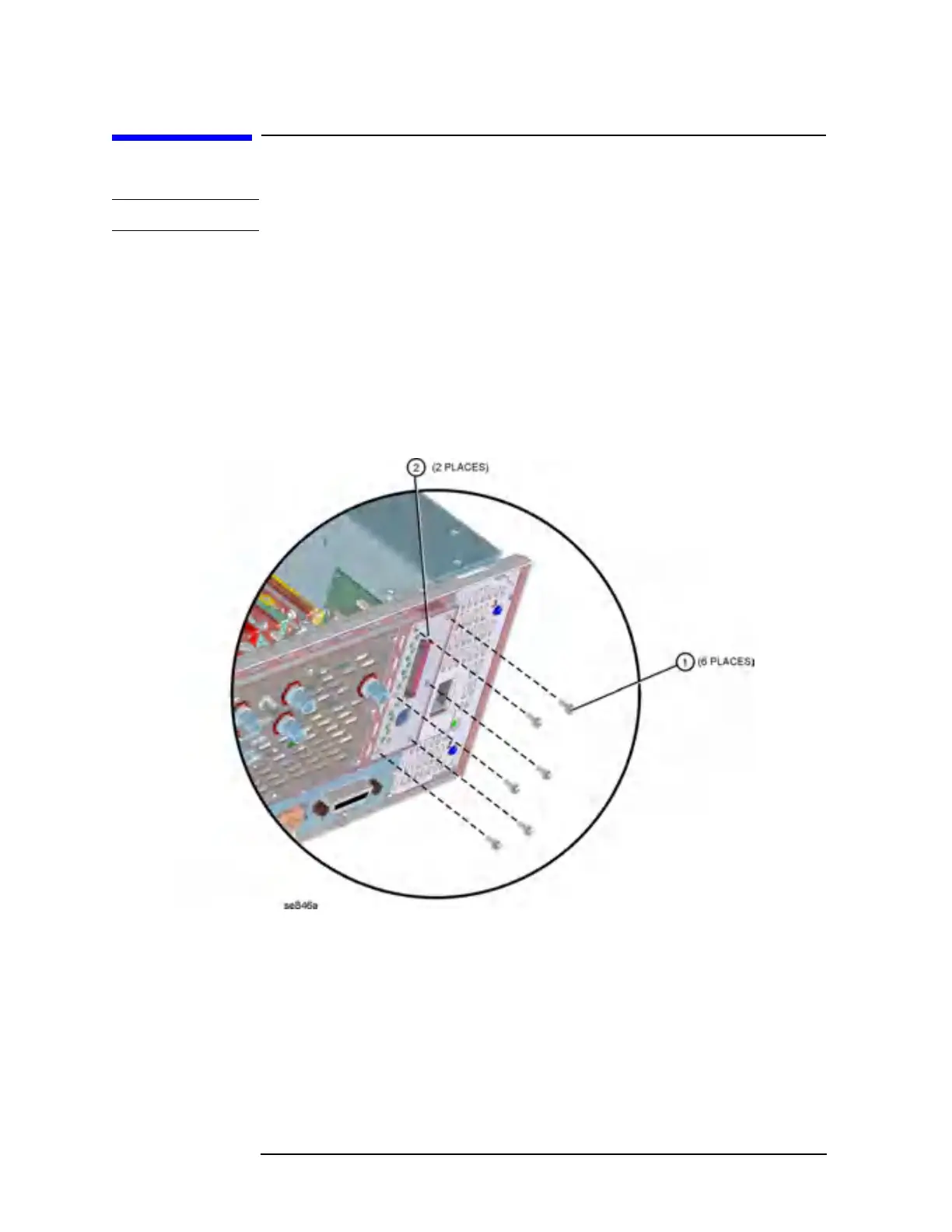

Figure 11-38 SCSI Board Removal
Replacement
1. Replace the SCSI board by inserting it into the opening on the rear
frame. Carefully position the board in the CPU board connector and
push down to mate.
2. Replace the panel onto the frame by replacing the 6 screws using a
T-10 driver. Torque to 9 inch pounds.
