402 Chapter 11
Assembly Replacement Procedures
Front Frame Subassemblies
A2 Front Panel Interface Board
Removal
1. Remove the RPG knob and volume knob by pulling straight off of the
control shafts.
2. Refer to Figure 11-61. Unplug both of the 2-wire backlight cables (2)
from the inverter boards.
3. Unplug the Audio Out (3) cable from the interface board.
4. Unplug the display flat flex cable (4) from the front panel interface
board. To do this, you must first pull up on both sides of the locking
mechanism of the ribbon cable connector.
5. Using the T-10 driver, remove the 7 screws (1) that secure the front
panel interface board (5) to the front frame assembly.
6. Lift the front panel interface board from the front frame assembly.

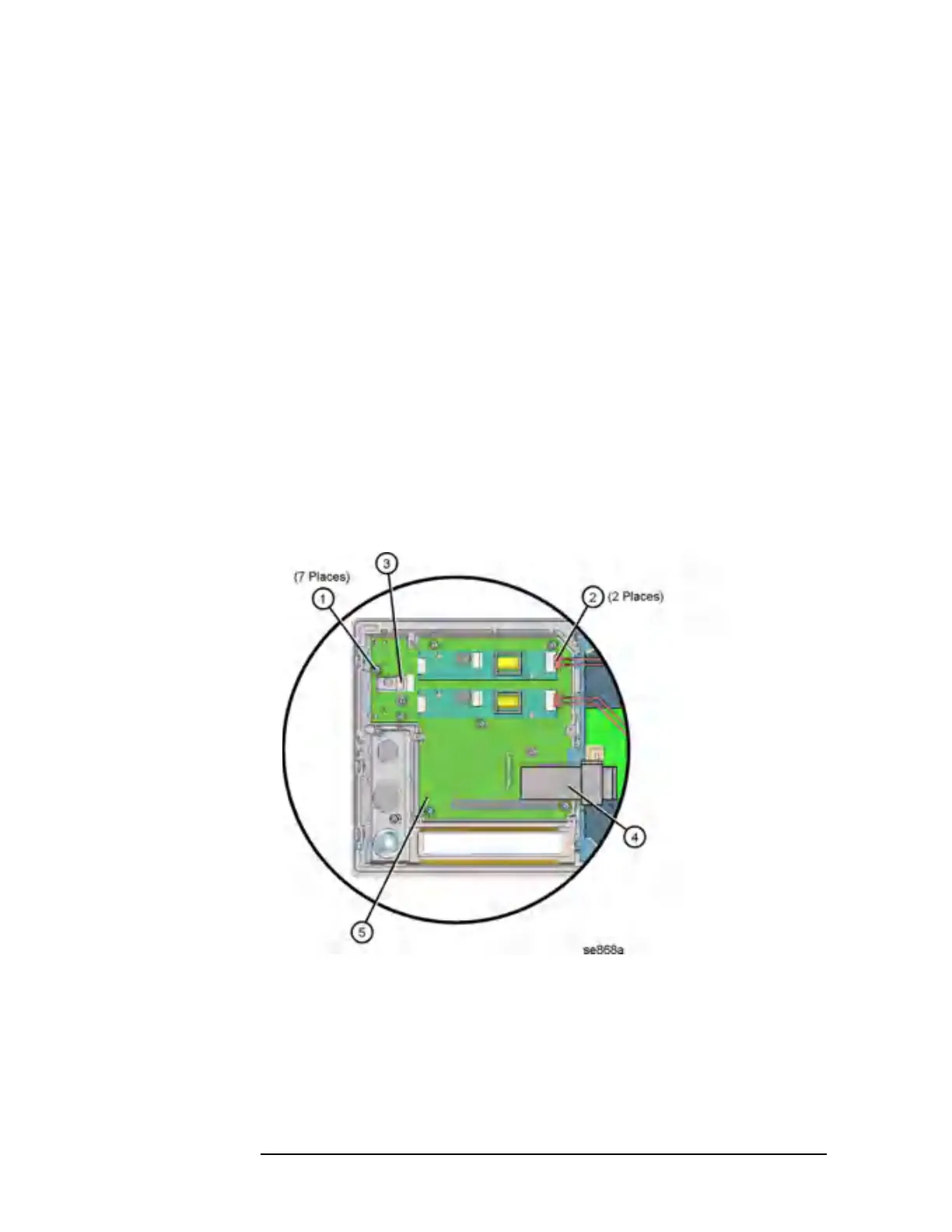

Figure 11-61 A2 Front Panel Interface Board Removal
