Chapter 11 393
Assembly Replacement Procedures
RF Input Connector
RF Input Connector
Removal
1. Remove the instrument outer case. Refer to the “Instrument Outer
Case” removal procedure.
2. Remove the instrument top brace. Refer to the “Top Brace” removal
procedure.
3. Remove the front frame. Refer to the “Front Frame” removal
procedure.
4. Refer to Figure 11-54. Using a 5/16 inch wrench, disconnect the
semi-rigid cable (2) from the connector.
5. Using the T-10 driver, remove the 2 screws (3) that secure the input
connector bracket to the deck.
6. Remove the connector and bracket from the instrument.
7. Remove the connector from the bracket (4) using a 9/16 inch
wrench.

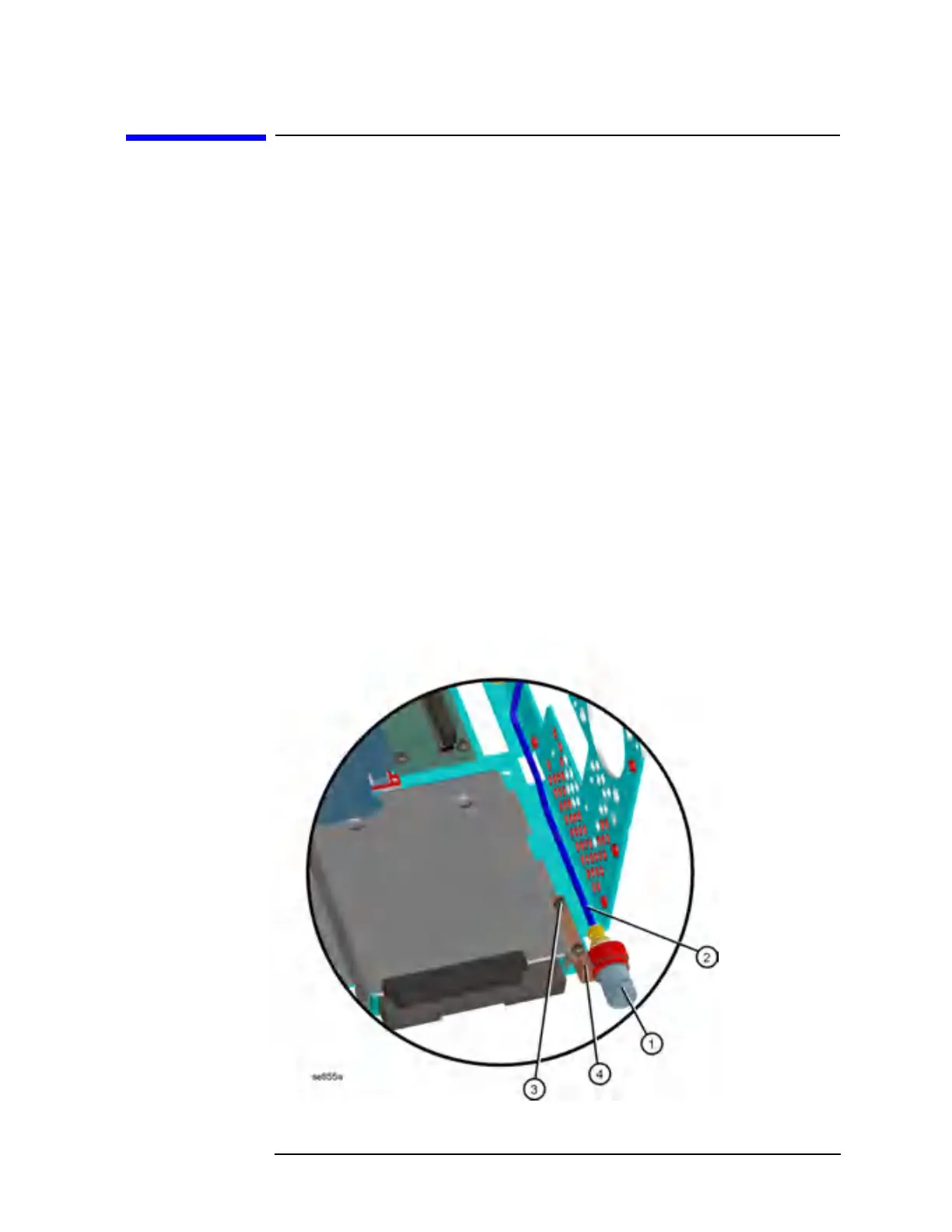

Figure 11-54 RF Input Connector
